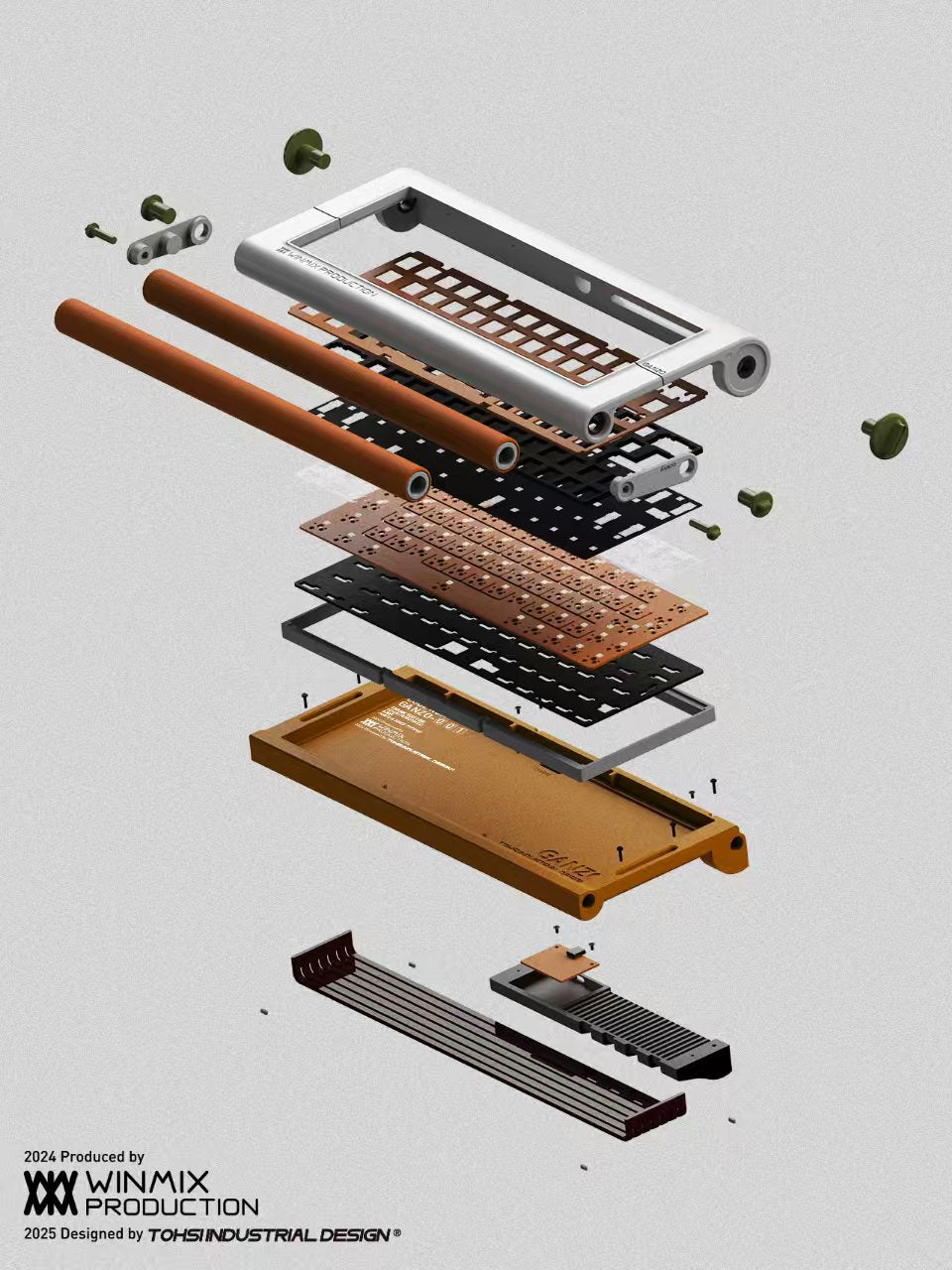

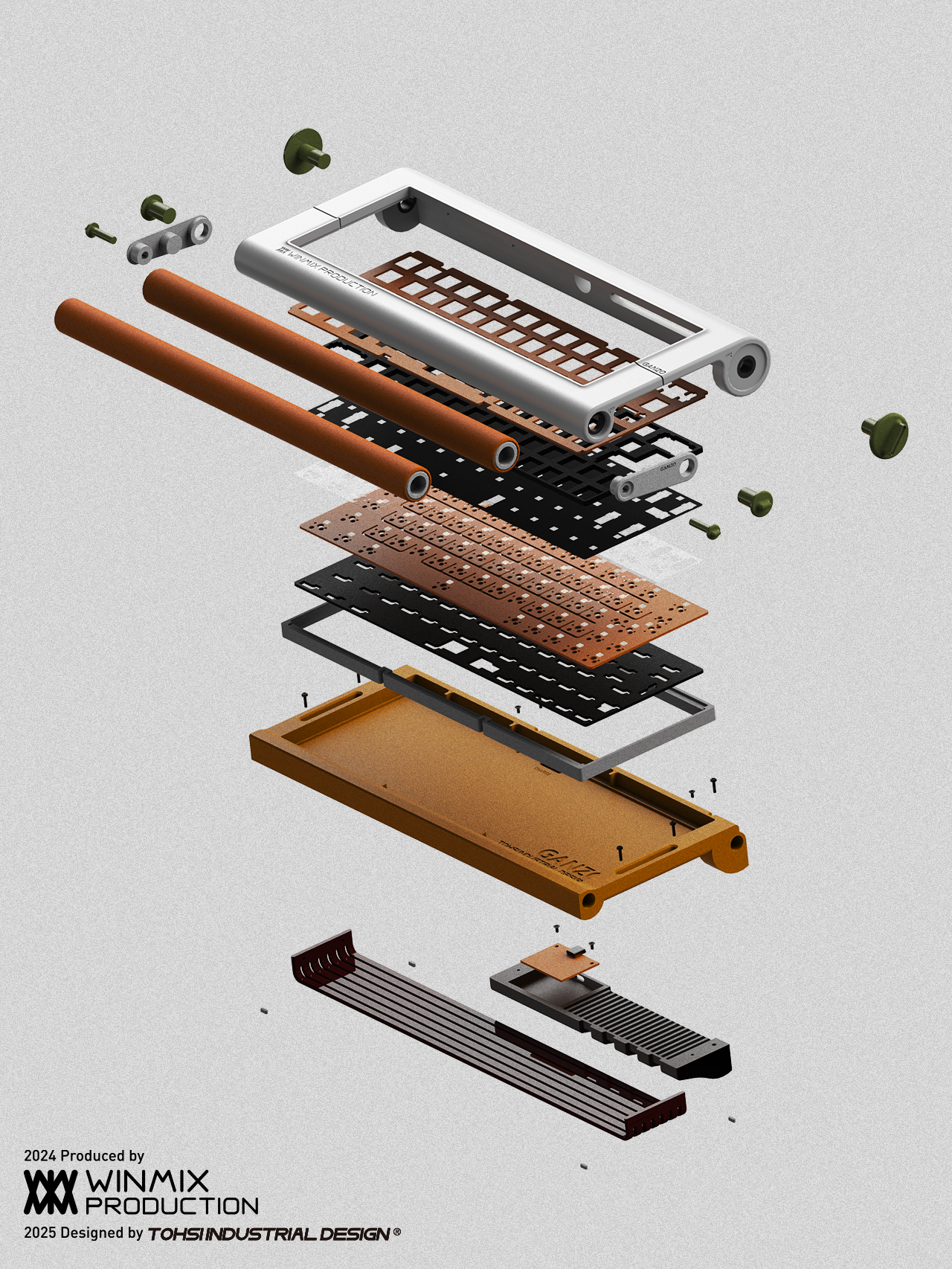

Exploded View

Structurally, through iterations and optimizations over previous generations, we have ultimately defined a custom full-CNC spray-coated design with a hand-tightened screw structure, fixed along the X and Y axes to enable quick disassembly.


We have deconstructed and redefined the concepts of the top and bottom case and the weight. The large curved structure allows for a comfortable typing experience even without a wrist rest.


The USB-C port and daughterboard have also been redesigned. The anodized backplate hides the daughterboard outside the bottom case, allowing the PCB to be placed in an almost flat bottom shell, resulting in a purer sound when typing.

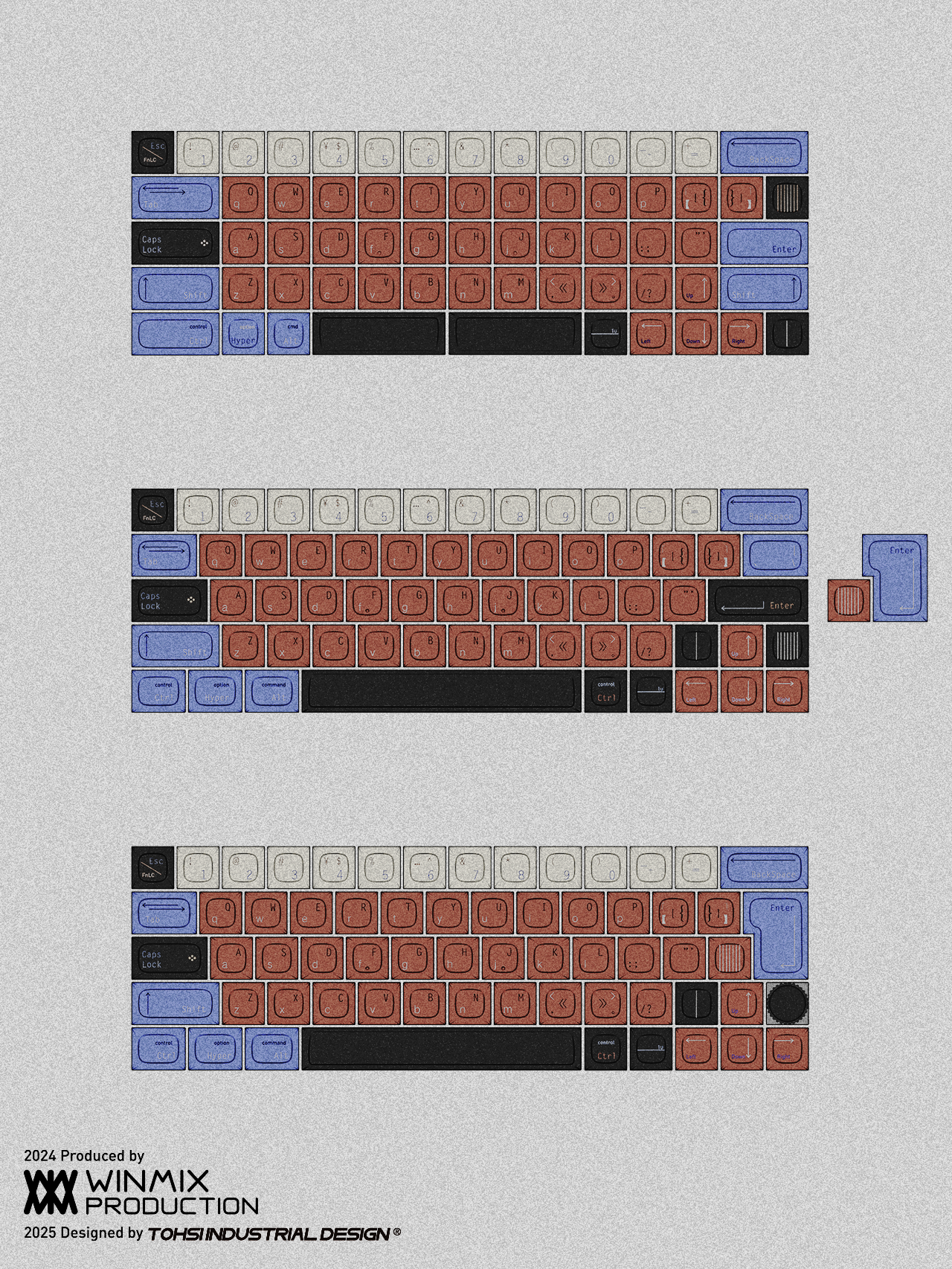

Layout

Innovatively, we have integrated a columnar Planck layout into the keyboard, allowing keycap enthusiasts to mix and match their ideal "perfect" symmetrical keyboard layout. Additionally, the dual internal frames include a standard ANSI and ISO-compatible 60% layout. It also supports split right SHIFT, hot-swappable rotary encoders, and split spacebars, enhancing both playability and practicality.

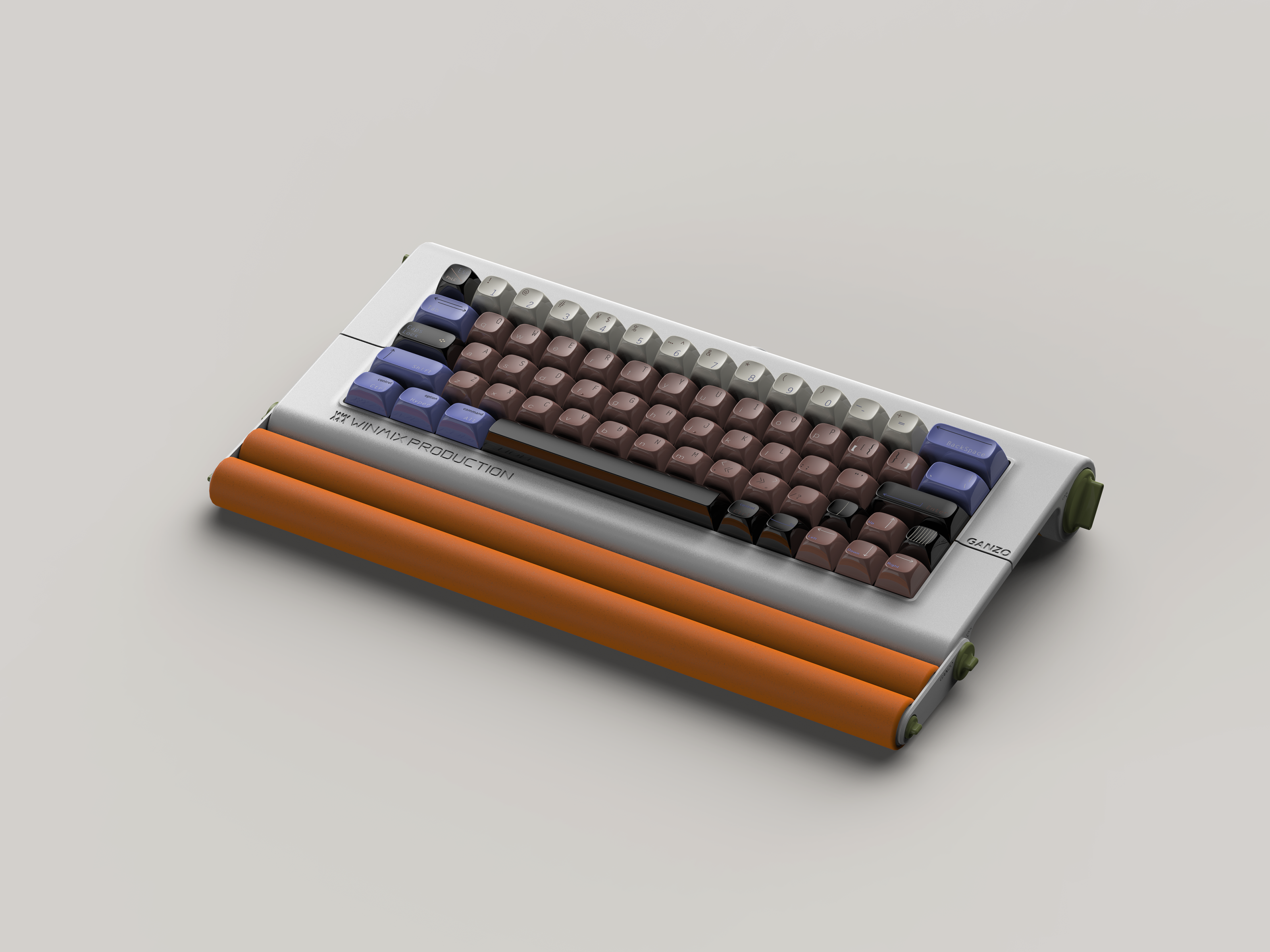

Design

We continue to incorporate the retro design from previous models while pioneering the split wrist rest integration, making it seamlessly blend with the keyboard for improved desktop aesthetics and ergonomic design.

The body features multiple crafting techniques, including sandblasting, painting, and anodization, achieving a unique retro-modern synthwave style.

Packaging

  • Custom bright silver packaging
  • Custom brushed aluminum limited-edition numbered ID card
  • Custom EVA inner tray to protect the keyboard and internal components during transportation

Specifications

Case

  • Aluminum top case with custom USB-C port, 180-grit sandblasted anodized silver finish
  • Aluminum custom hand-tightened screws, glossy baked paint finish
  • Aluminum bottom case, large-grain sandblasted and powder-coated finish
  • Aluminum backplate for the daughterboard, 180-grit sandblasted anodized gray finish
  • Custom wrist rest

Internals

  • 1.2mm FR4 silk-screened positioning plate (Planck & Split 60) ×2 sets
  • 1.6mm PCB (Planck & Split 60) ×2 sets
  • Custom silicone pad, isolates PCB from direct contact with the bottom case
  • PORON gasket foam, IXPE switch pad, PET bottom padding

Frequently Asked Questions

When will my order arrive?

April 2025. Production is almost done and will just need to be shipped over.
