[Instock] Neo80 Kit

$107.00 SGD

Shipping calculated at checkout

Extra

41 41
42 42
43 43
44 44
45 45
46 46
47 47
48 48

Product variants

Quantity

Description

Missed the Group Buy? Here's another chance to cop the Neo80!

Note:

Oxidation of brass and copper weights is unavoidable due to the characteristics of these materials. If you are concerned about this, please choose the PVD stainless steel weight instead.
Chroma and Dusk are random mixes of gradients, so the result on each unit may vary.
The tri-mode PCB on this sale page comes with a pair of 2200mAh batteries.
All PCBs are QMK-based and support VIA.

41	WK	Anodized Champagne	Same as the top case	Spray-coated Golden Weight
42	WK	Anodized Babyblue	Same as the top case	Spray-coated White Weight
43	WK	Spray-coated White	Same as the top case	Mirror PVD Dusk Weight
44	WK	Spray-coated Retro White	Same as the top case	Spray-coated White Weight
45	WK	Spray-coated Cream	Same as the top case	Mirror PVD Dusk Weight
46	WK	Anodized Silver	Same as the top case	Spray-coated White Weight
47	WK	Anodized Navy	Same as the top case	Spray-coated Golden Weight
48	WK	Anodized Black	Same as the top case	Spray-coated Golden Weight

More Information on the Qwertykeys Site

Customization Options

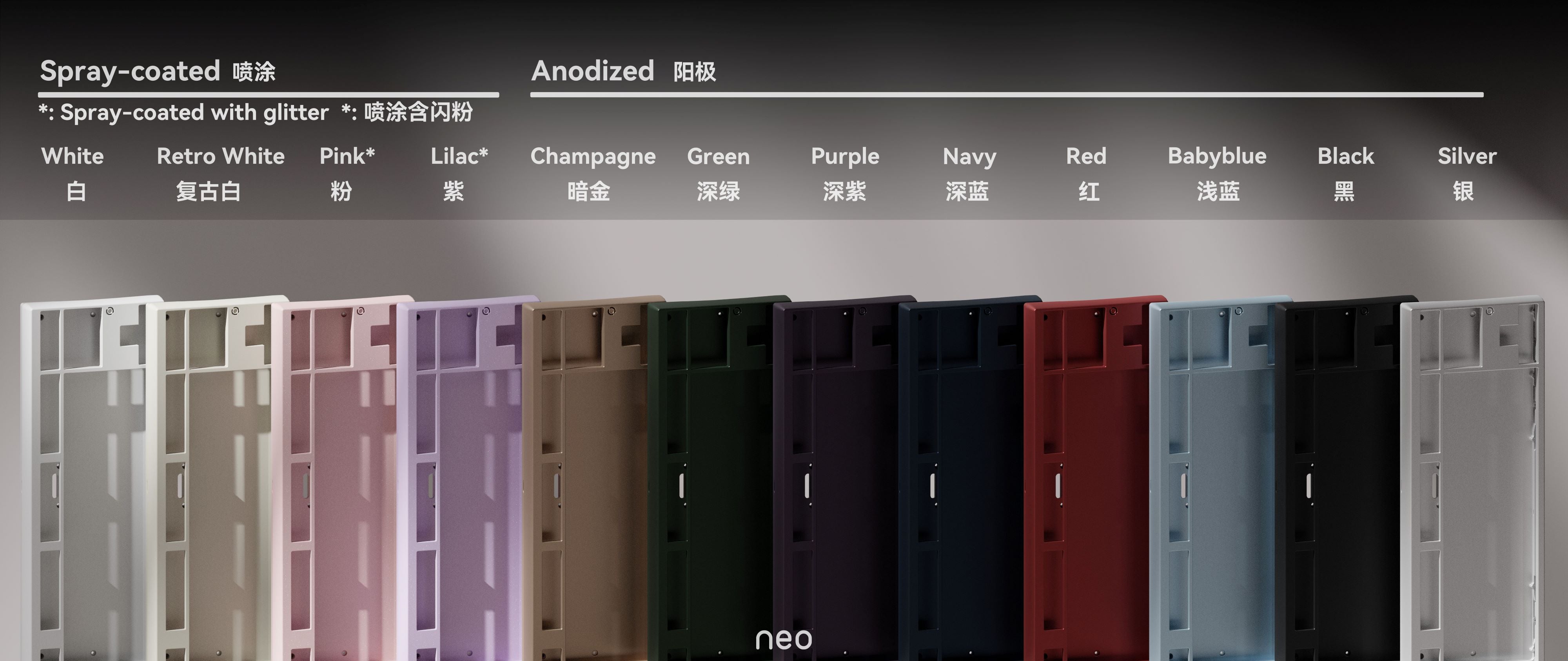

Case Options

Weight Options

All weights are made of stainless steel, except for the copper weight

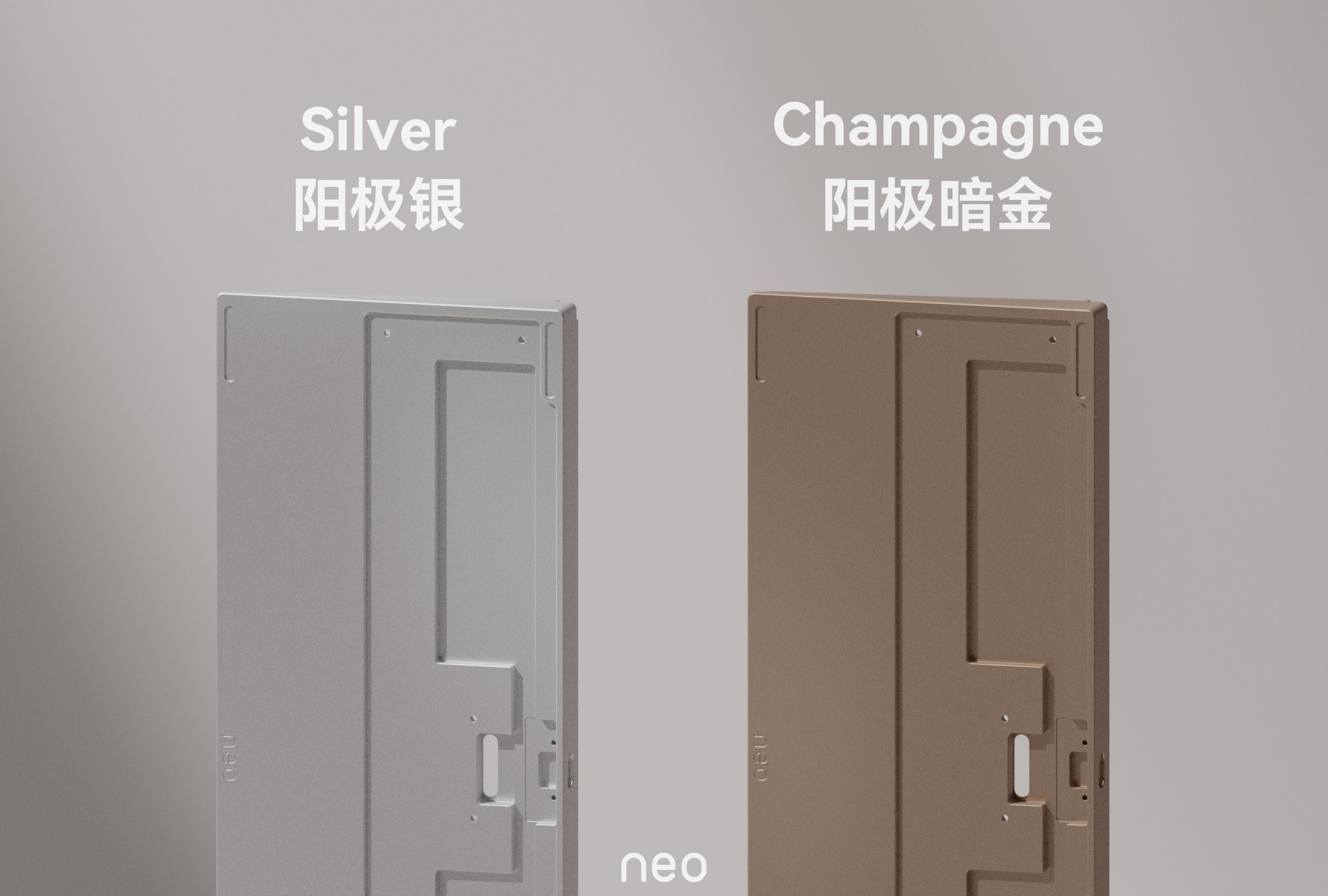

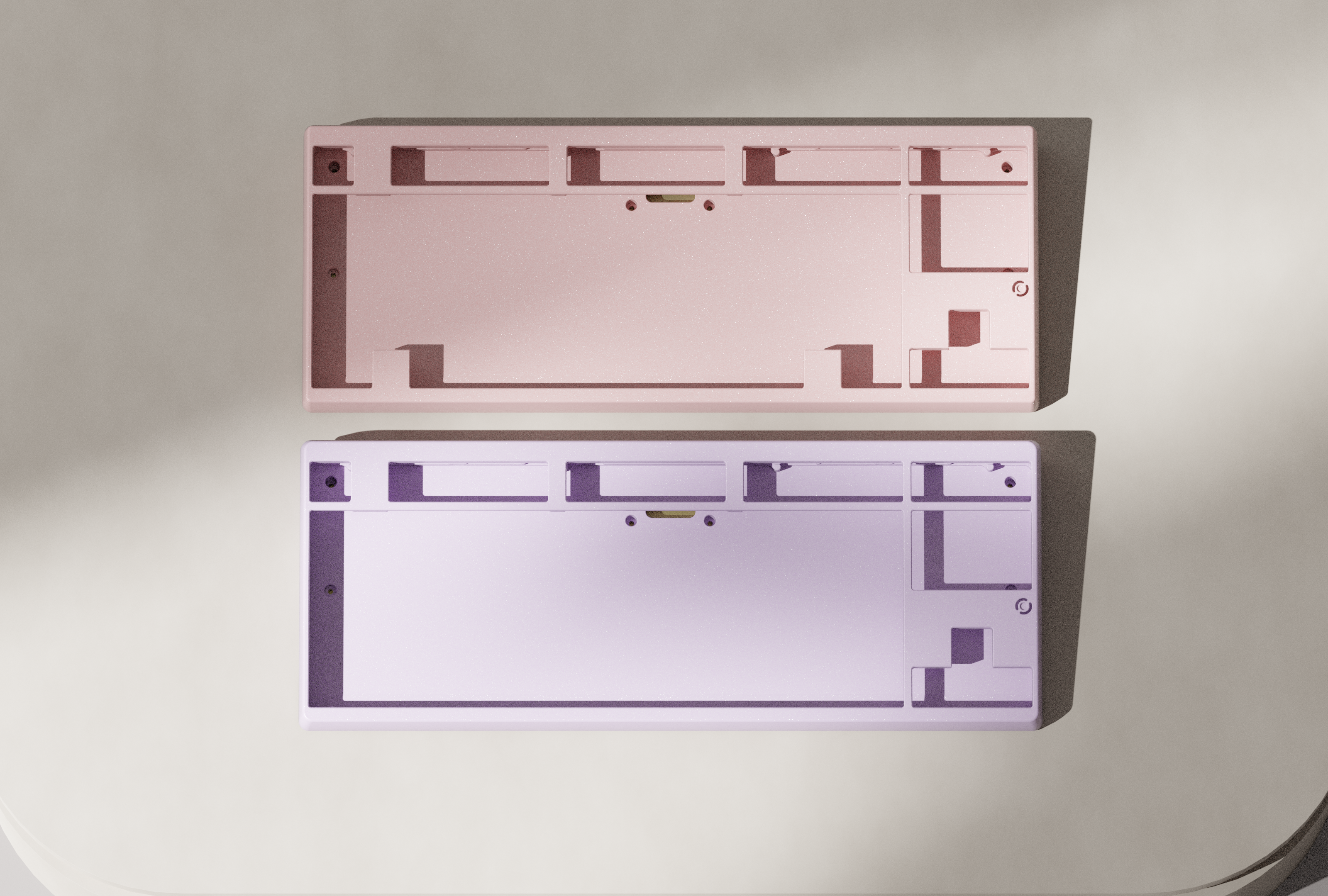

Alternative Bottom Case

Only for Anodized Top Case

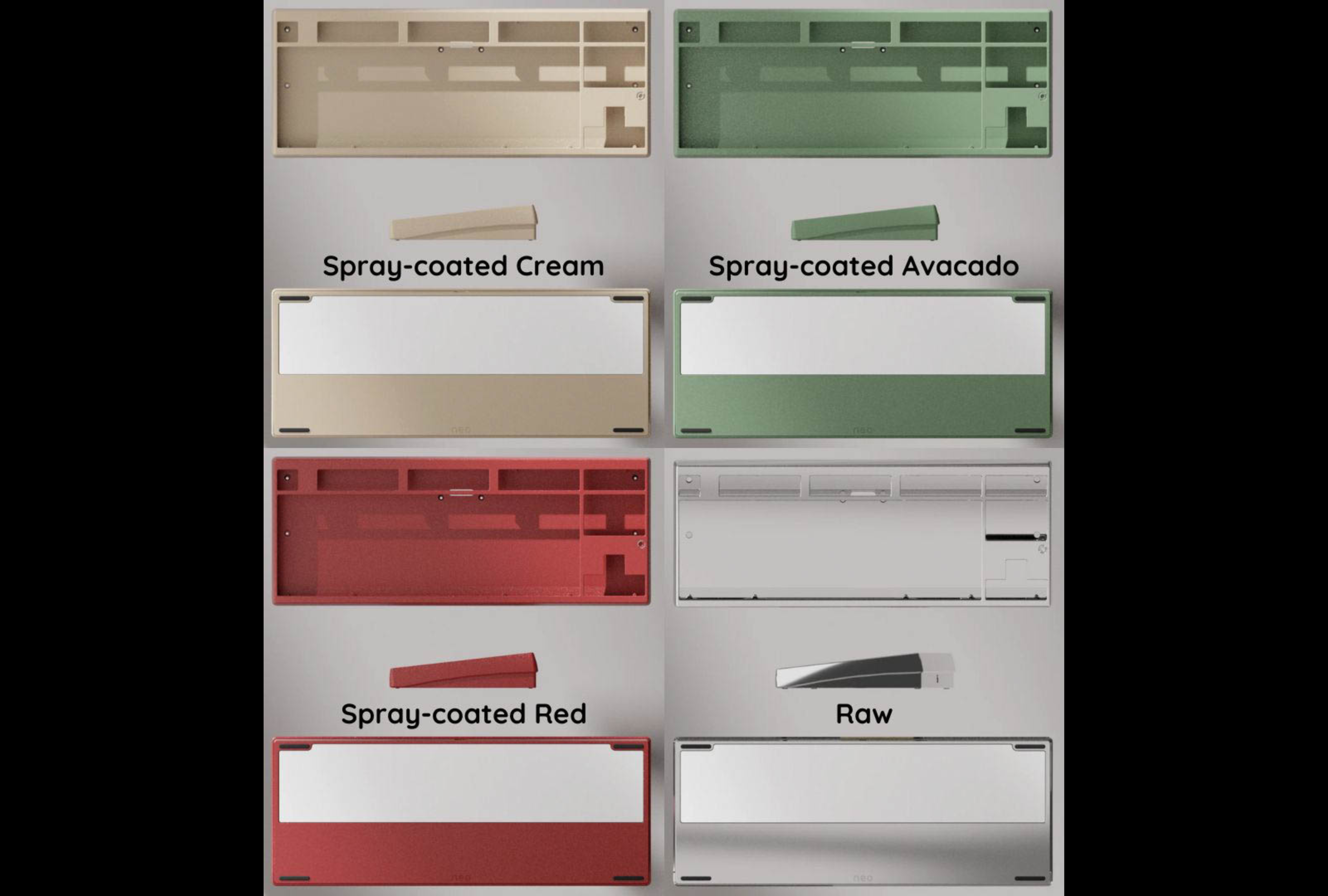

Added Case Options

Side & Back Design

The combination of curved edges and chamfers gives the Neo80 a softer and more dynamic side profile. The bottom case can be the same color as the top case, or customers can also choose a golden or silver bottom case to create a dual-tone vibe.

On the back side, we have maintained the minimalist style of the Neo family to balance the overall design and highlight the beauty of the materials.

In addition to the regular sandblasted and mirror-finished PVD, we have also experimented with the stone-washed technique for the first time on the Neo80. We offer three color options: stone-washed black, stone-washed silver, and stone-washed champagne.

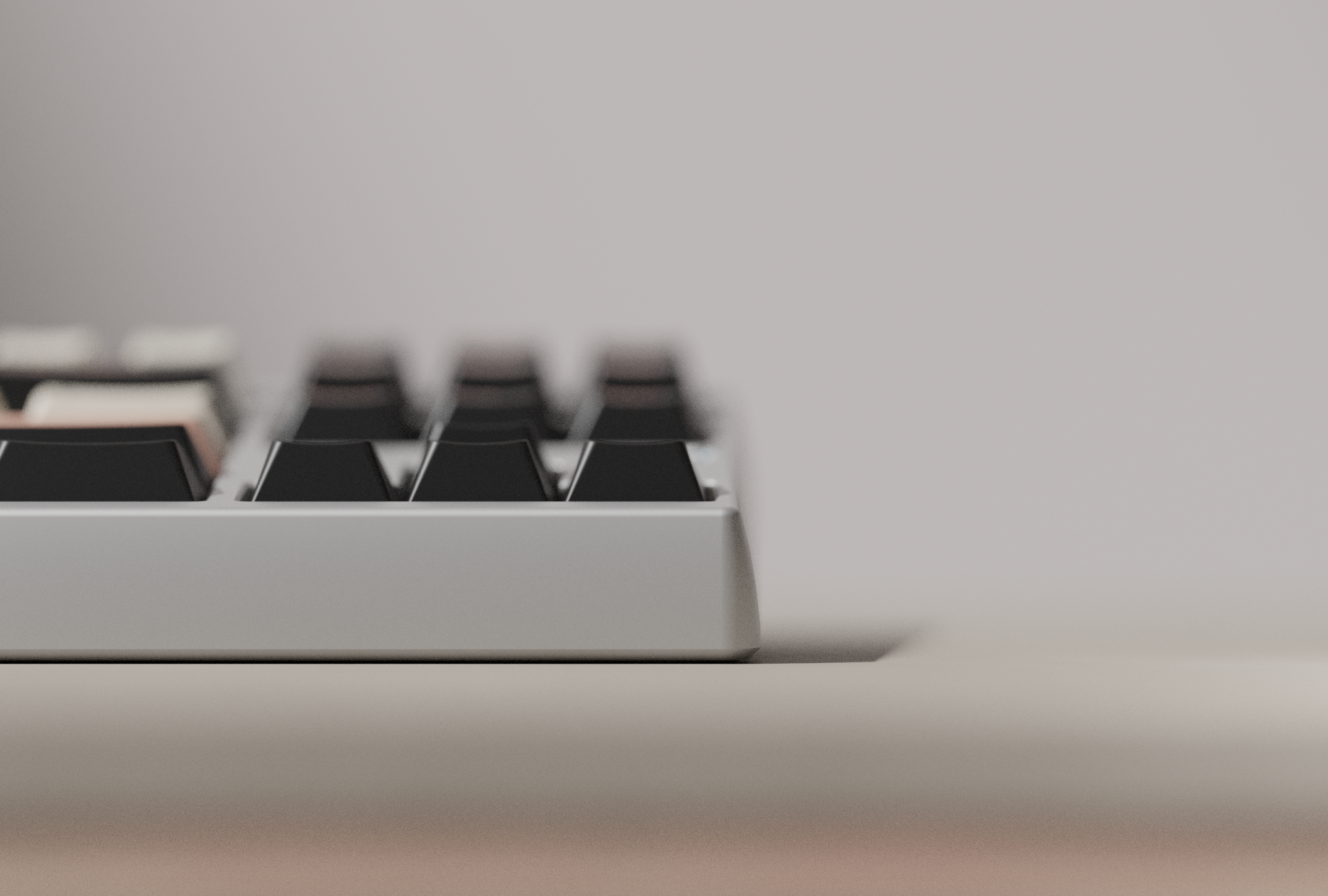

Round Chamfer + F12 Top Row

In addition to the iconic slim side bezels, we have rounded the top case chamfer to give the Neo80 a softer appearance. The F13 key has been removed to make the layout more practical for everyday use.

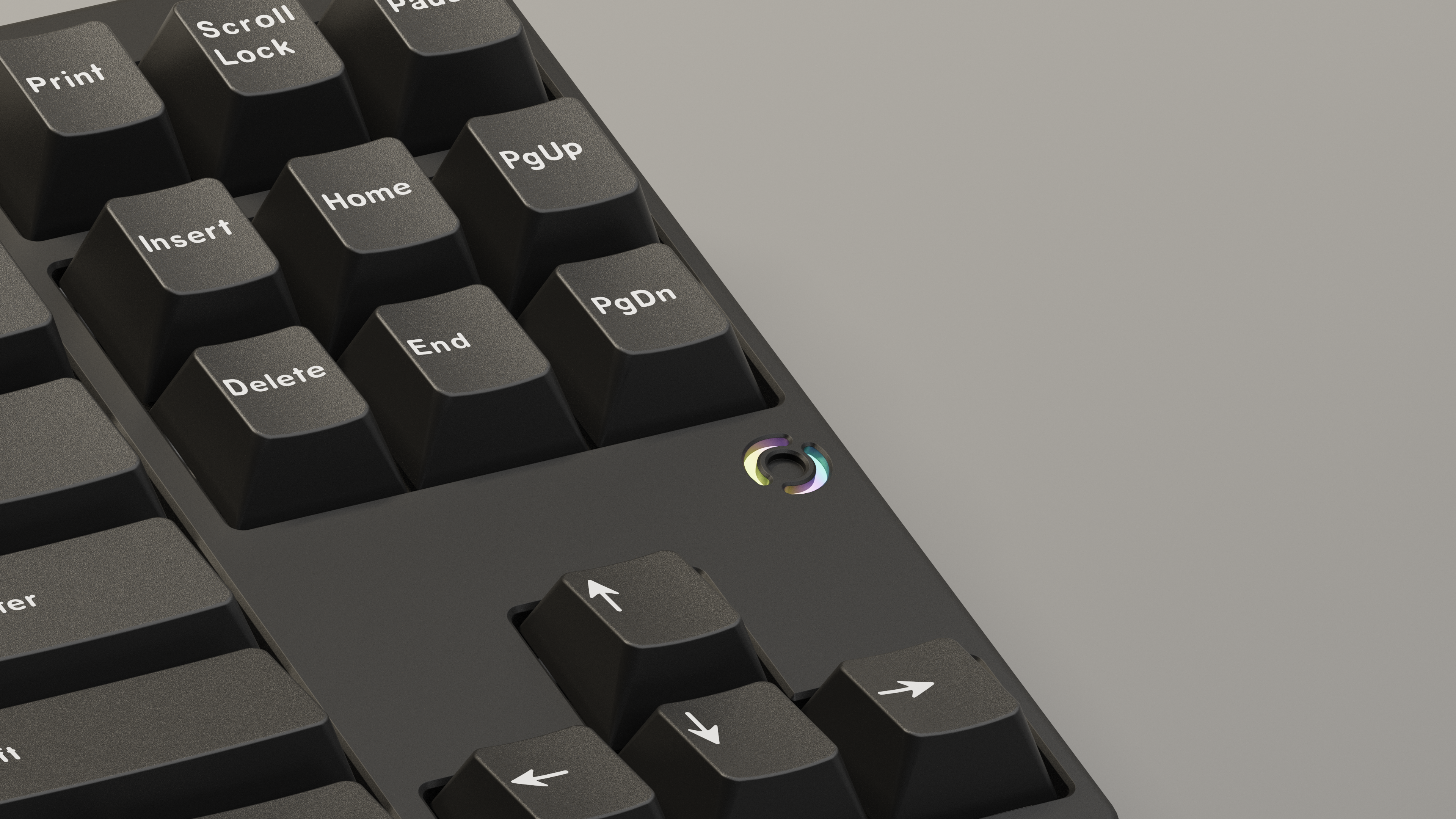

RGB Orbit Logo

The RGB light is positioned slightly below the surface to reduce the brightness and make it less distracting during daily use.

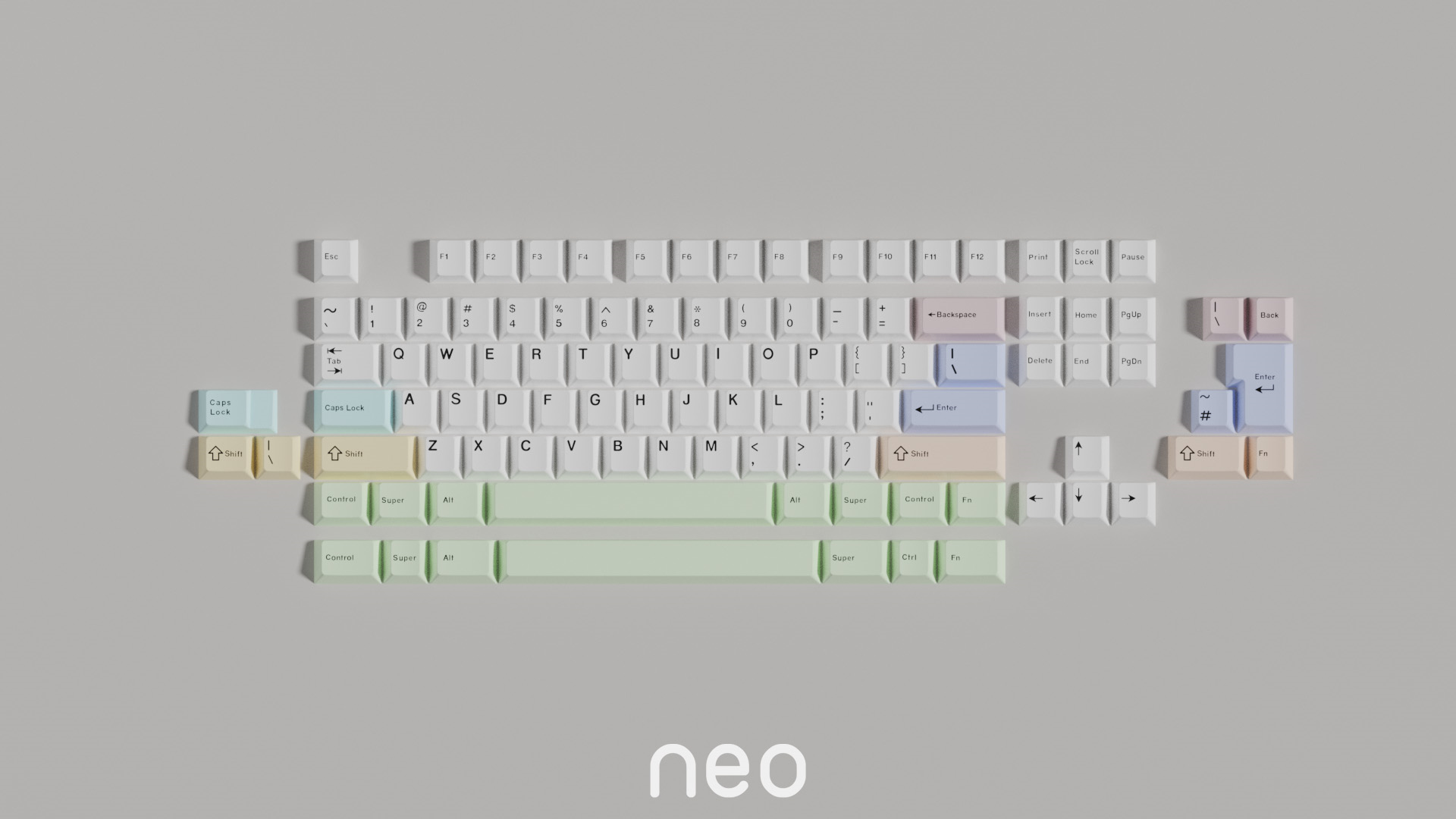

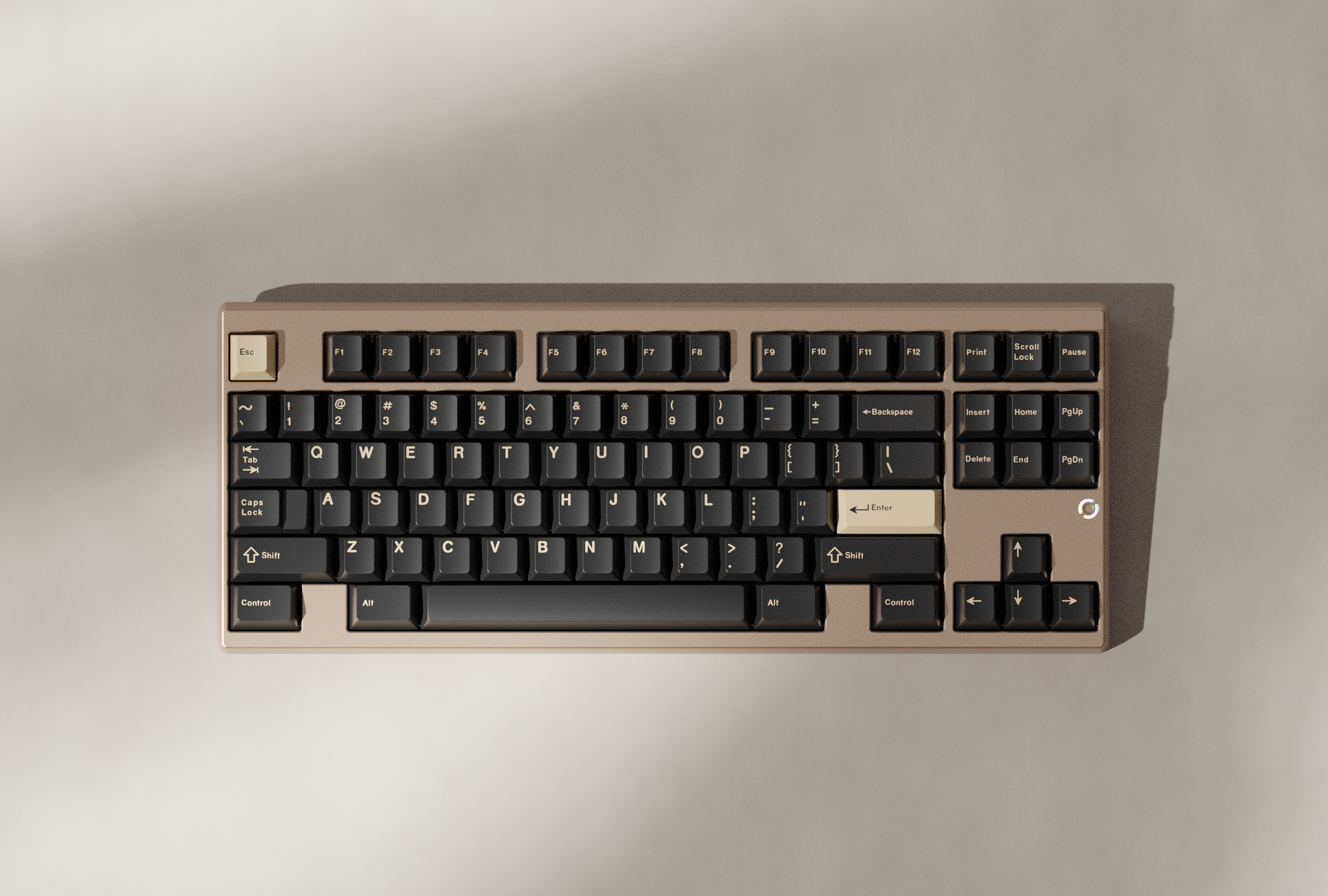

WK & WKL Options

We offer both layouts so you can choose the one that suits you best.

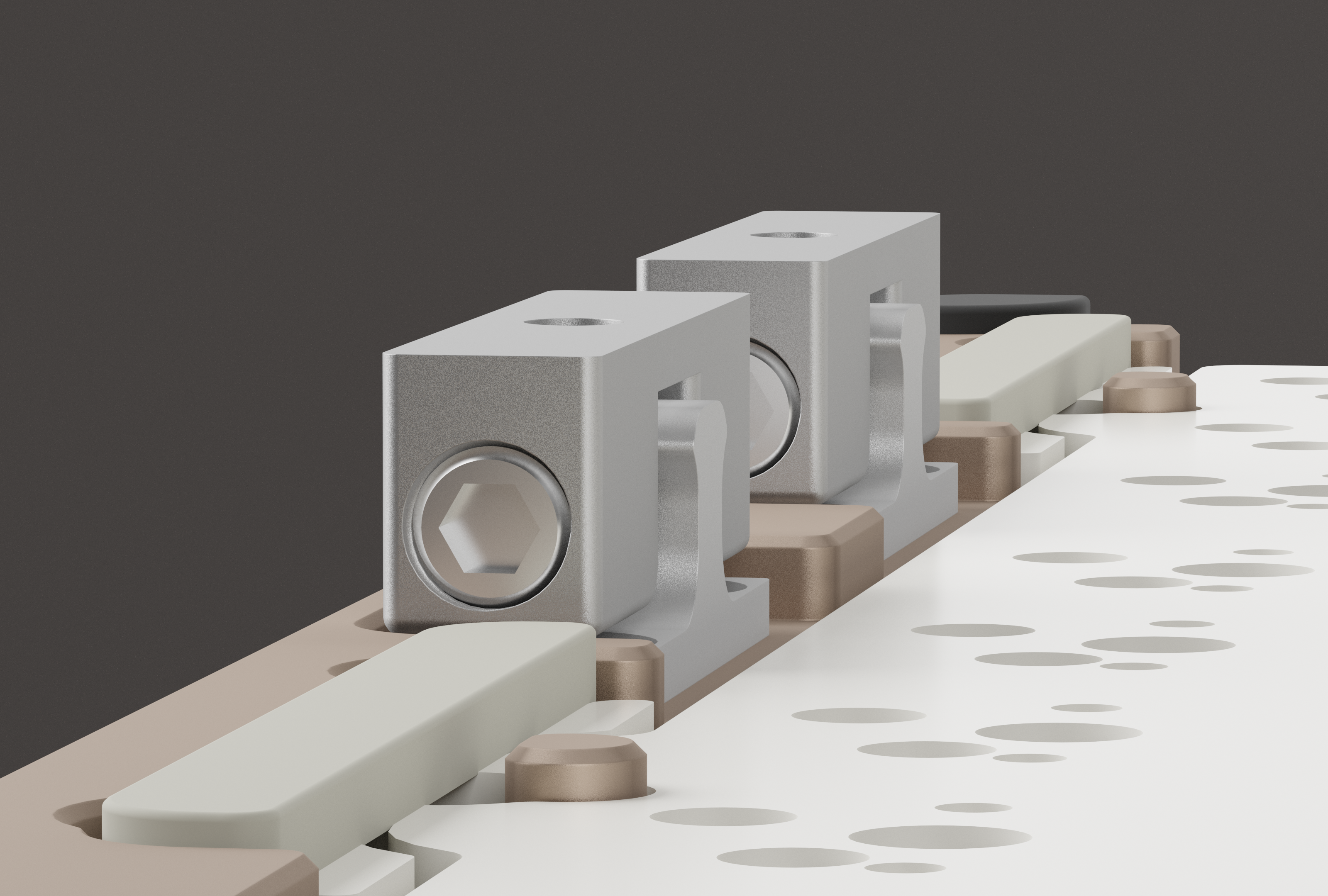

Ball-Catch Structure

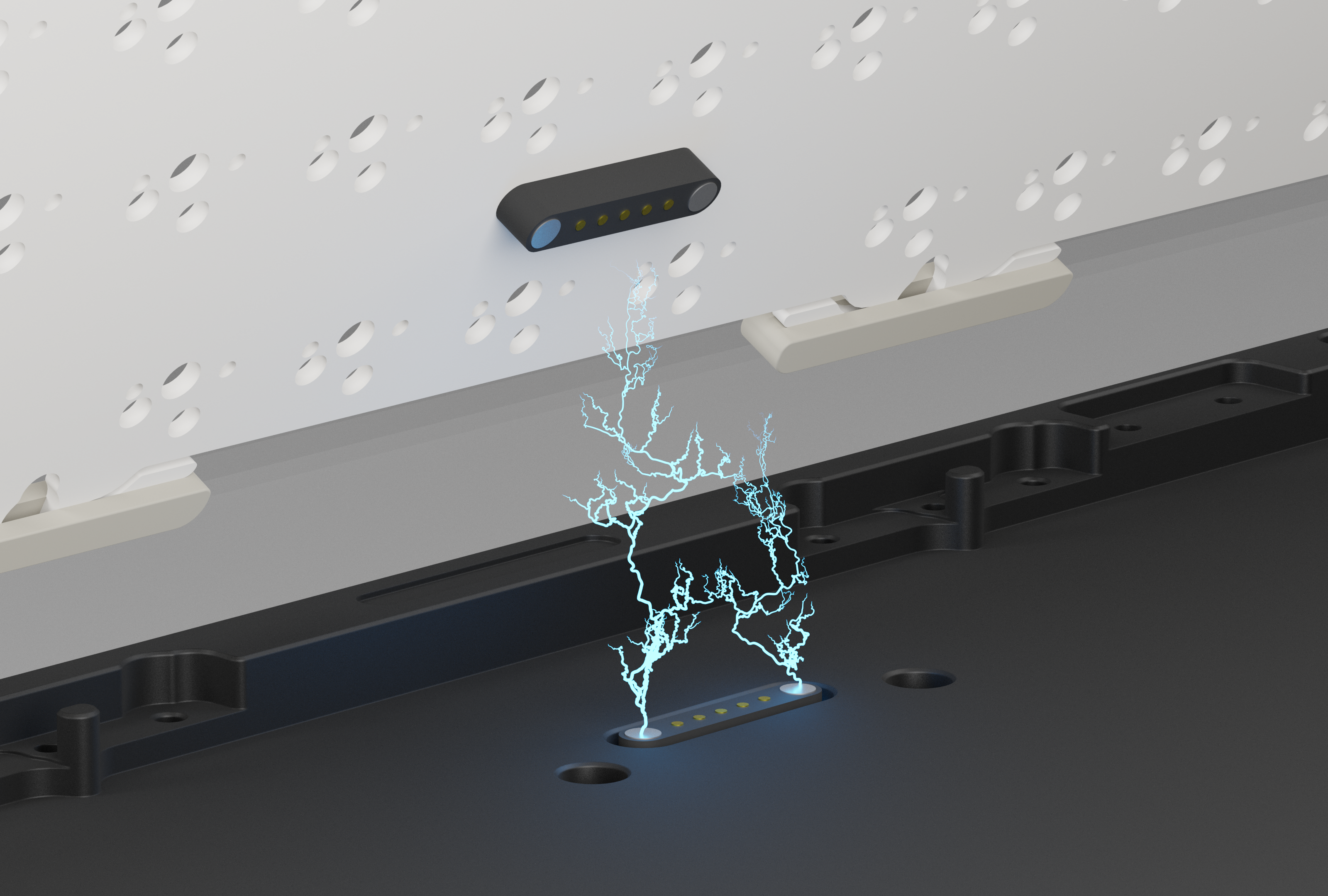

Magnetic Connectors

Plateless, Gasket, O-ring, Sandwich, and more.

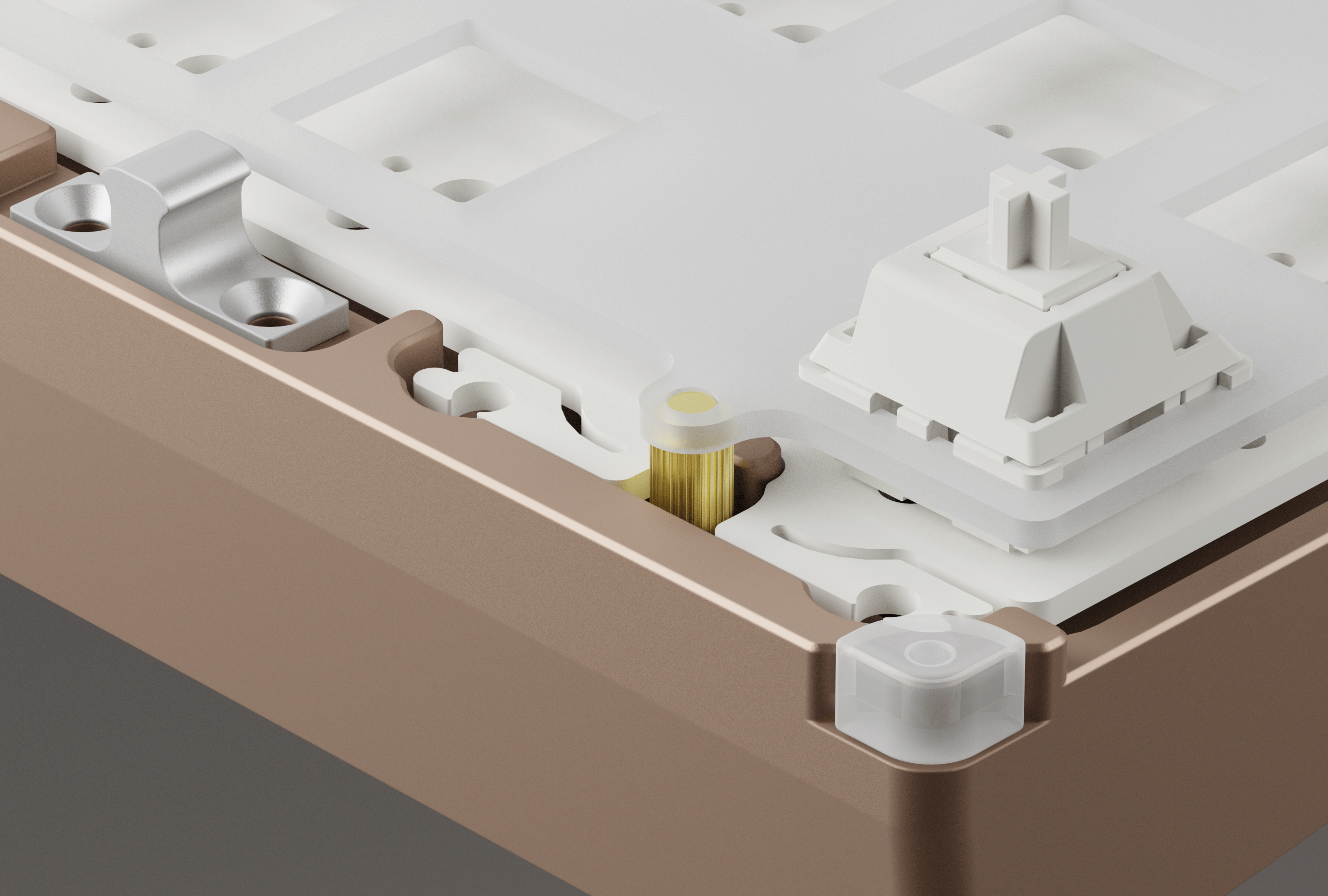

In addition to the regular plateless, gasket mount, and O-ring mount, we also experimented with an upgraded sandwich mount on the Neo80. In this configuration, the plate is placed on copper pillars that are attached to the bottom case, creating another channel for sound transmission. You can also combine multiple mounting styles to achieve the desired sound profile that best suits your preference.

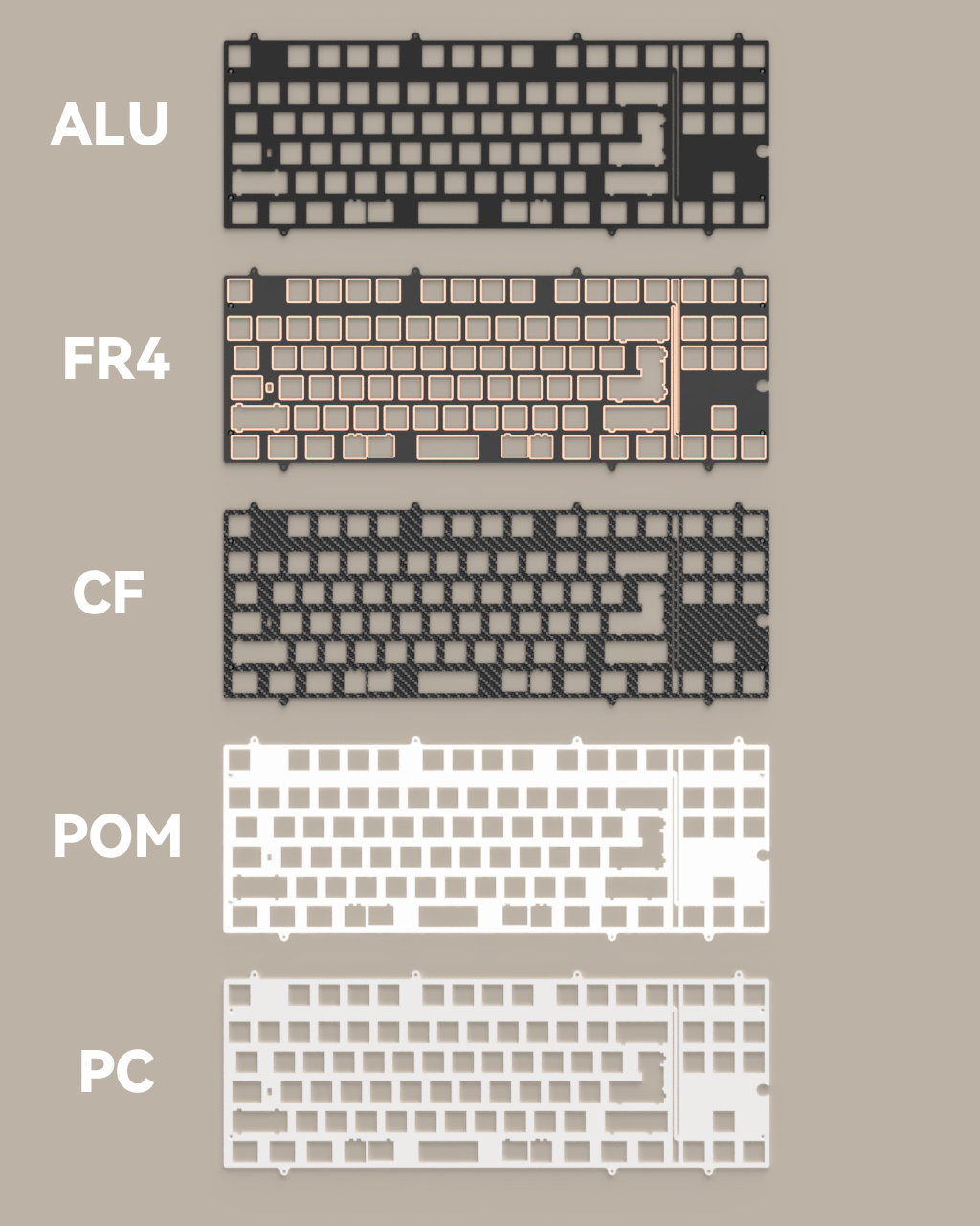

5 Plate Options

Plates with distinctive characteristics:

Aluminum
FR4
Carbon Fiber
POM
PC

PCB Options

Tri-mode Hotswap PCB (Non-flex Cut)
Wired Hotswap PCB (Non-flex Cut)
Solder PCB (Non-flex Cut)

1.6mm PCB without flex cut to achieve a louder and fuller sound profile

NO Per-key RGB

QMK-based, VIA supported

NKRO

Polling rate: 1000Hz

Frequently Asked Questions

Specifications

Typing angle：6.5 degree

Front height：18 mm

Size：359.5mm * 141.7 mm

Weight：

with copper weight: 1.72kg before assembly, 2.22kg after assembly
with stainless steel weight: 1.7KG before assembly, 2.2kg after assembly

What does the kit contain?

1. Case

Including one pre-installed external weight
Including one pre-installed badge of your choice
One 3000 mAh batteries will be installed inside the bottom case for orders with Tri-mode PCBs
Orders with wired PCBs will receive fillers for the battery compartments

ㅤ

2. PCB

PCB of your choice
1x PE sheet
1x PCB foam
Standoffs
Tri-mode PCB comes with a 2.4Ghz dongle

ㅤ

3. Plate of your choice

4. Poron Case Foam

5. PCB Daughterboard*3 (pre-installed)

6. Silicone Gaskets

7. O-ring (30 duro)ㅤ

8. Rubber feet

9. Weight screws in silver and black

10. Daughterboard FPC Cable

11. Free Gifts (Not covered by warranty)

Keyboard carrying case
1x Keycap & switch puller
1 set of 70% clip in stabilizers
Coiled USB-C cable

Can I build it plateless?

Yes, however, we only recommend building plateless with a solder PCB.

When will I receive my order?

Instock units will be shipped out in 2-3 working days.

Group Buy units will follow their respective estimated time of arrival.

Do extra Tri-mode PCBs come with battery?

No.
