Sold in packs of 10.
With a brand new all-black spring, improved top housing material and cushioned top housing rail, this switch is going to be a game-changer!
Improvements over previous Obsidians

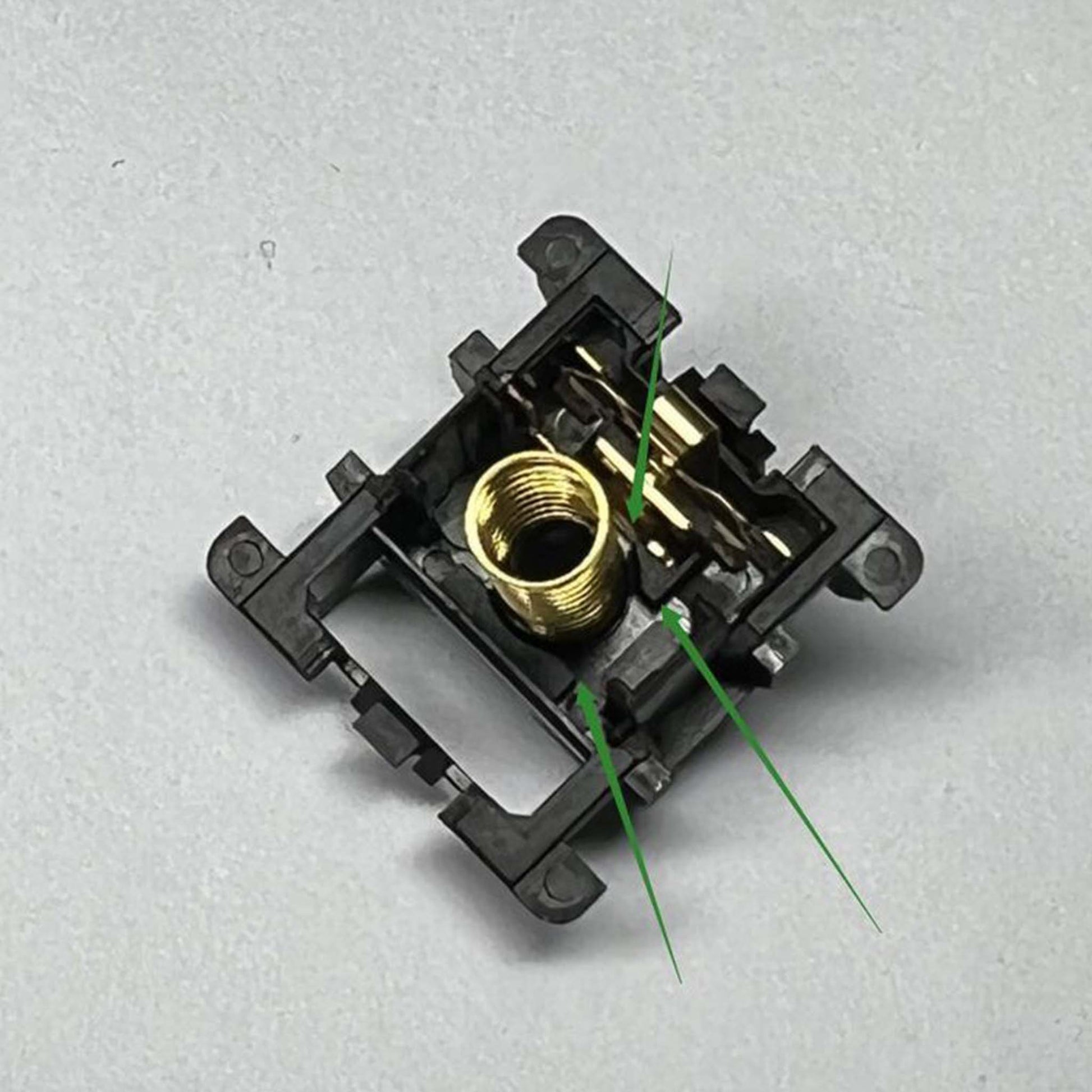

- The bottom of the new mould is slotted, SMD lights are supported, and there is a fixed spring protrusion in the bottom housing
- The top housing is made of a new black transparent material. The centre slide rail inside the top housing is cushioned, which makes the spring rebound more comfortable
- Improved all-black Obsidian spring
Specs
- Manufacturer: JWK (Designed by 43 studio)
- Switch type: Linear
- Factory lube: Shaft and feet are slightly lubricated
- Mounting Type: PCB Mount (5-pin)
- Top: Black transparent composite material (different from the previous all-black Obsidian and milk shell Obsidian)
- Bottom: Nylon
- Stem: POM
- Spring: Thic Thock DL Series V2 black spring (improved version of all black Obsidian)
- Actuation: 50g
- Bottom Out: 62g
- SMD LED compatible
