Intro

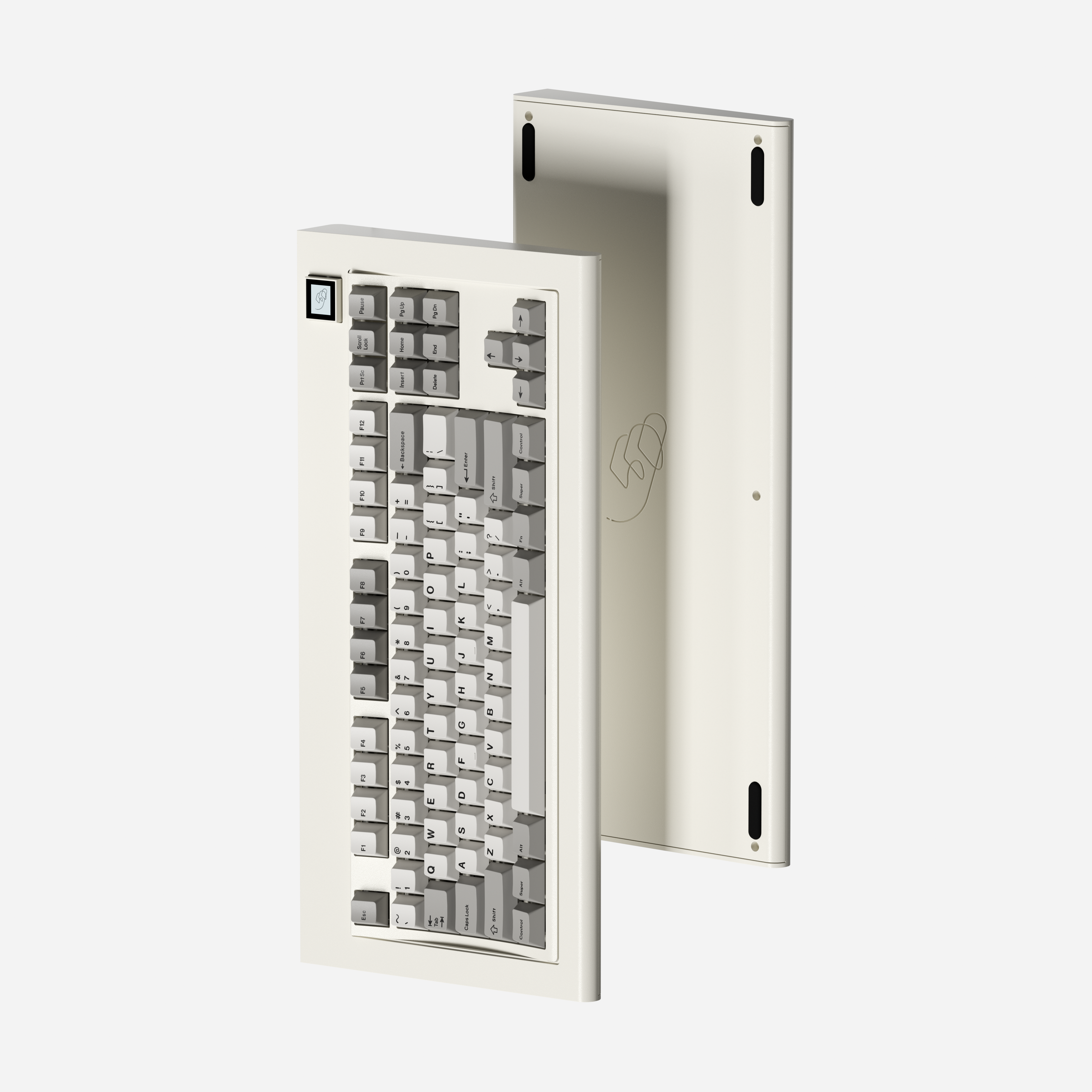

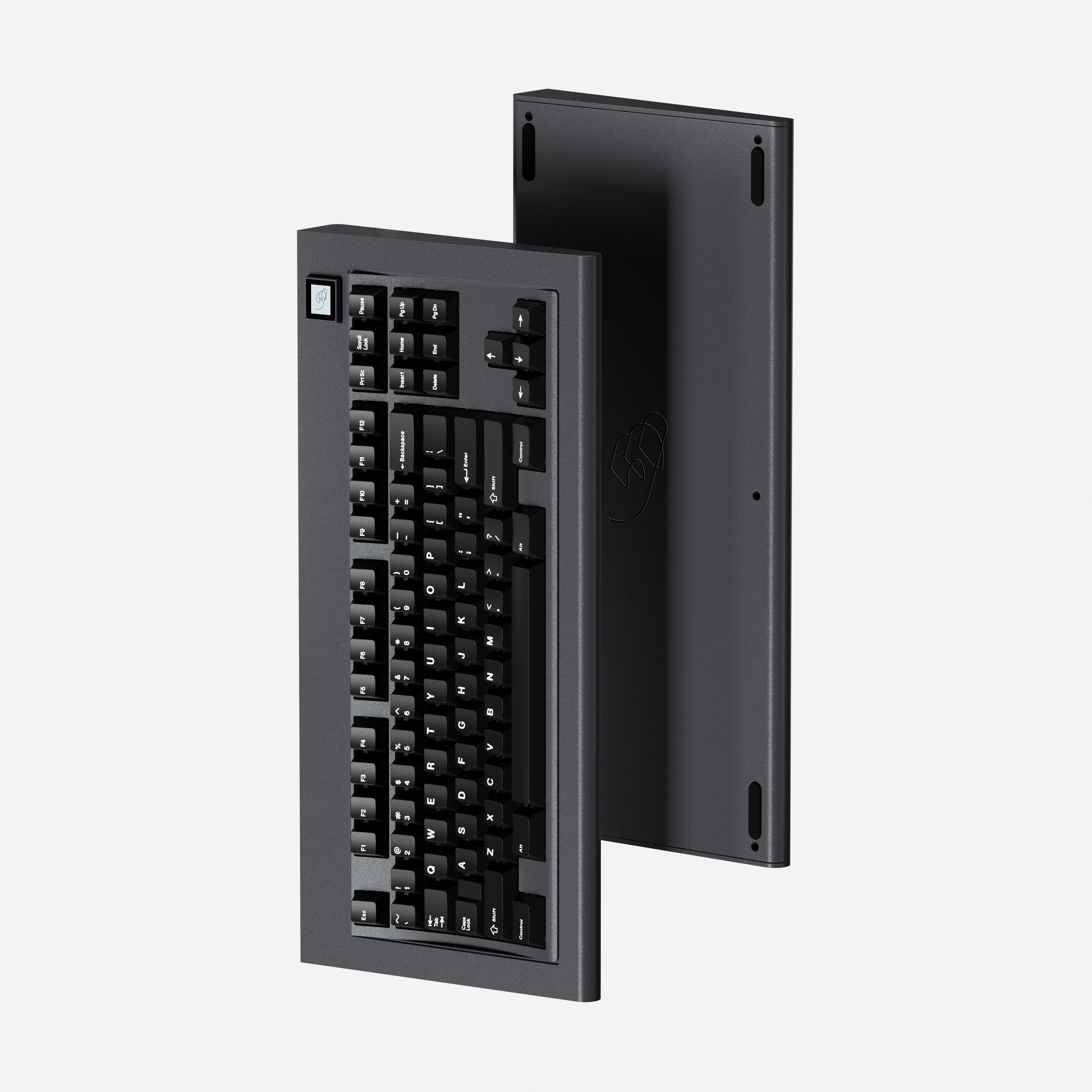

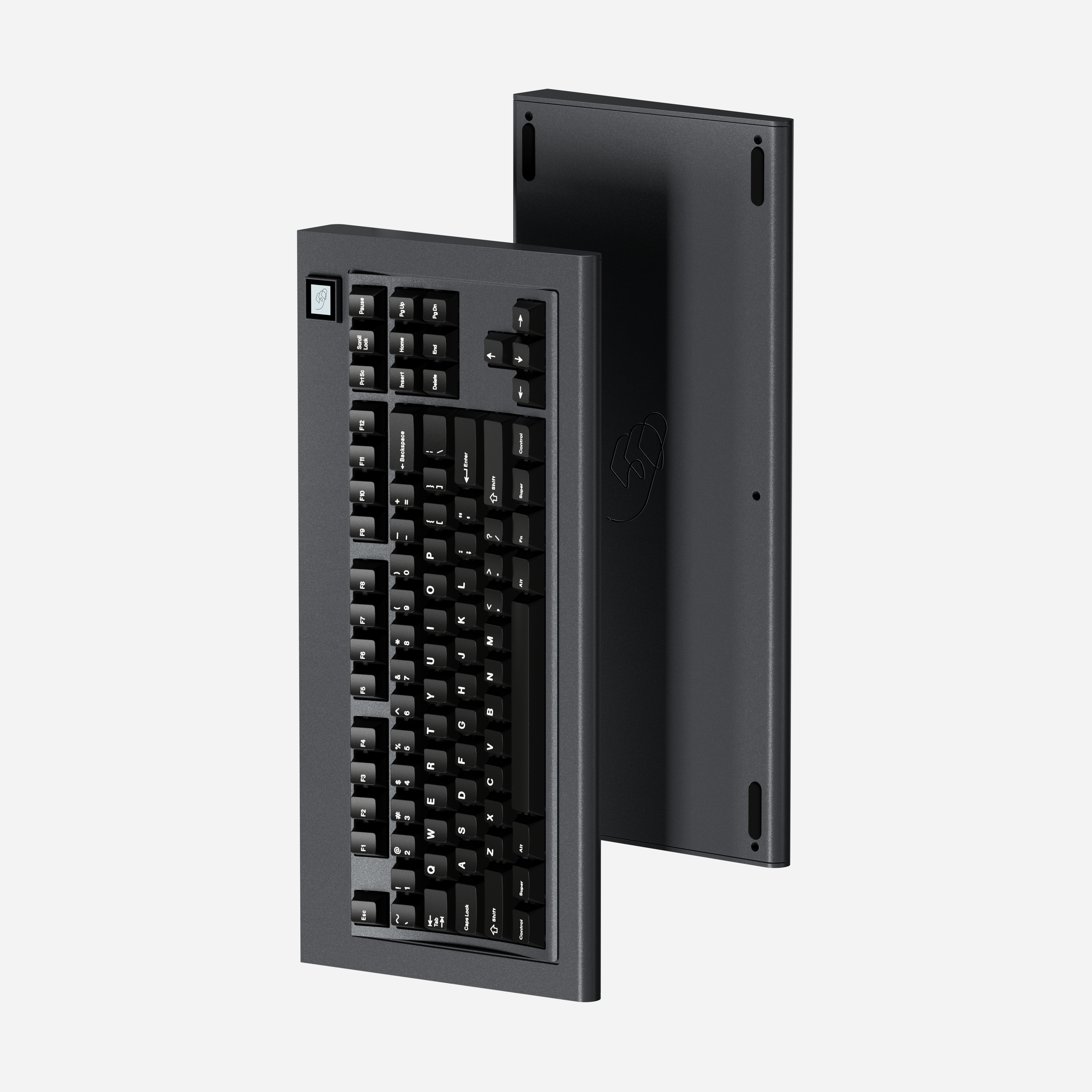

Inspired by the king of keyboards - IBM Model M. A design we wanted to remake into a mechanical keyboard the most.

More information here.

The Curve

Brings you a wonderful typing experience - not just a look.

Retro OLED Pushbutton

A fun component to replace the original IBM badge area. Not only shows your custom images but also an extra programmable F13 key.

Solenoid

Decorates your retro vibe.

Size:

• 400mm x 184mm x 34.5mm
• 18mm front height
• 1957g for case & plate

Materials & Finish:

• 6061 aluminum
• Industrial coating
• Curved silver anodized aluminum switch plate

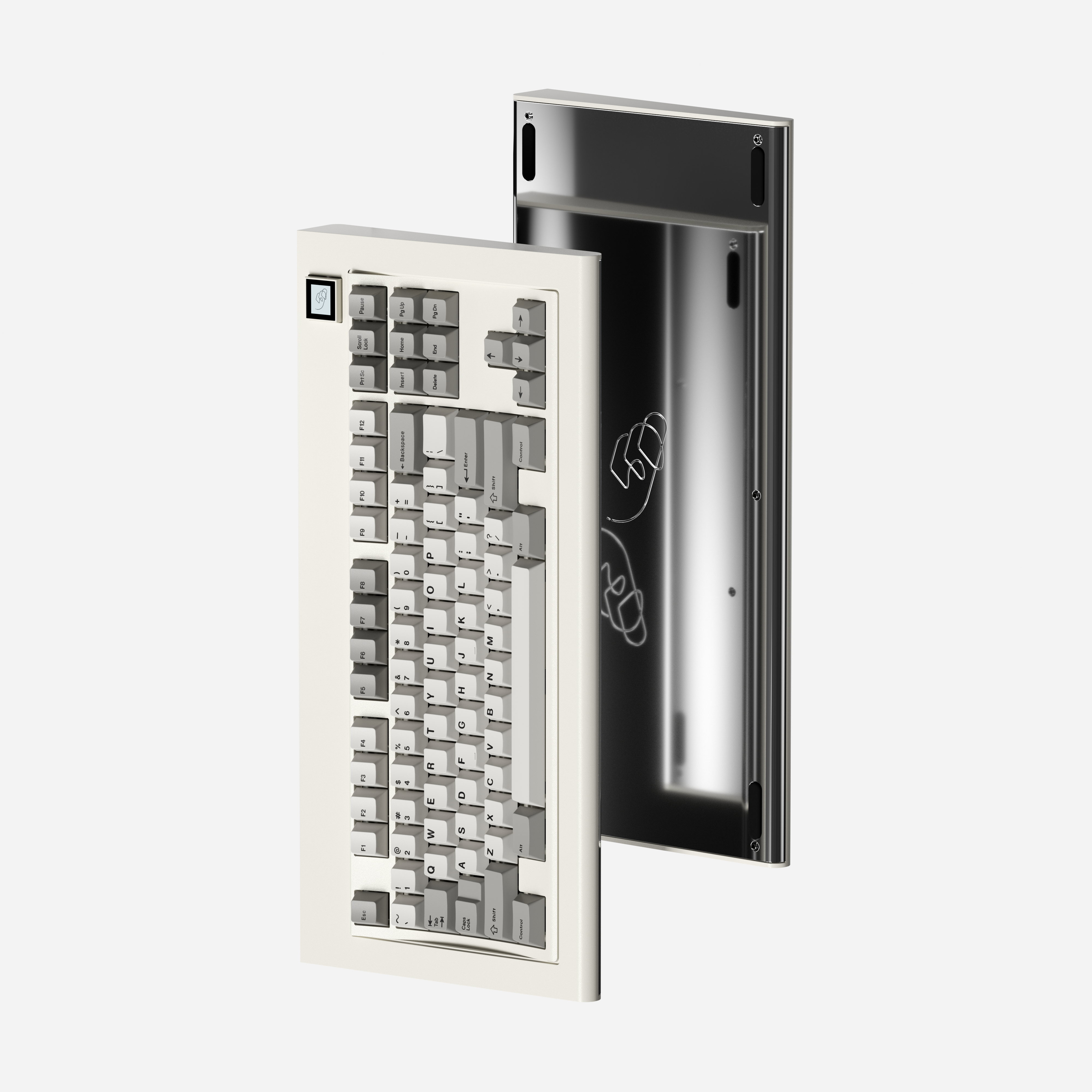

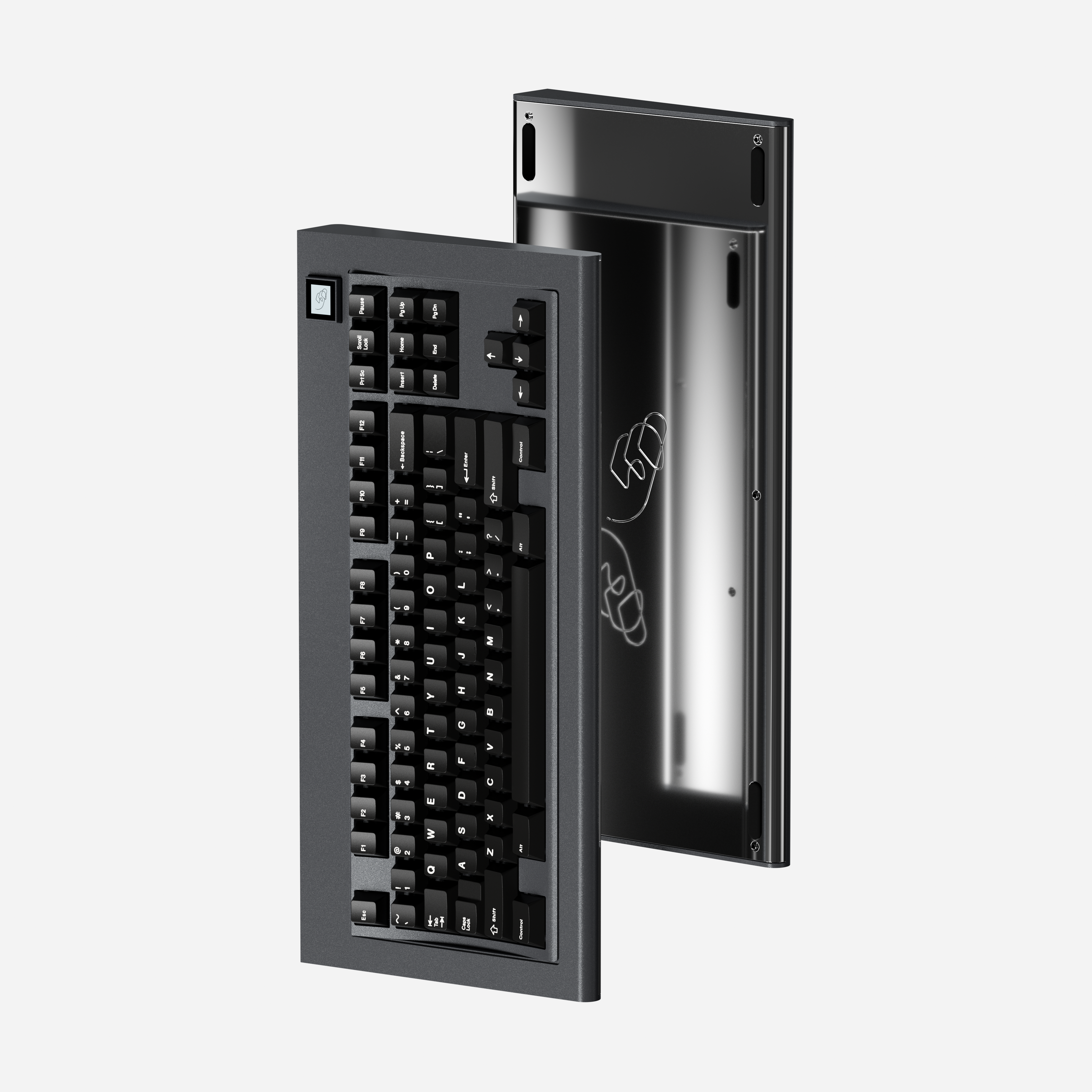

• Chromium plated bottom case

PCB Features:

• Designed by ekow@KeeBoyzLAB
• 1.2mm thickness
• USB C interface
• Hotswappable
• QMK firmware, VIA supported
• TKL/WKL layout supported
• F13 OLED pushbottm. Programmable. Image(jpg, png, gif...) switching supported.
• Solenoid

Case Features:

• 6061 aluminum case
• High quality industrial coating
• Chromium plated bottom case
• Curved anodized silver aluminum switch plate
• Ergonomic curve design as IBM Model M

Contents:

• Top Case x 1
• Curved Middle Frame x 1
• Bottom Case x 1
• Curved Switch Plate x 1
• MCU Board(OLED Pushbutton pre-installed) & FFC Cable x 1
• PCBA(switch PCB) x 1
• USB C Connector Daughter Board & Cable x 1
• Solenoid x 1
• Solenoid Stand x 1
• Poron Bottom Film x 1
• Screw Set x 1
• OLED Screen Protector Set x 1
• Carrying Case x 1

---

Build Streams & Youtube Review

2023.12.24 mechmerlin

2024.01.08 Alexotos

2024.01.14 Taeha Types
