$81.00 SGD

Shipping calculated at checkout

Addon

  • Solder Non-flex cut PCB
  • Wired Non-flex cut Hotswap PCB
  • Tri-mode Non-flex cut Hotswap PCB
  • PC Plate
  • POM Plate
  • FR4 Plate
  • Aluminum Plate
  • Carbon Fiber Plate
  • O-ring (30A)
  • Gaskets + Rubber Feet
  • Aluminum (White) Weight
  • Aluminum (Black) Weight
  • Aluminum (Golden) Weight
  • Copper Weight
  • Mirror Dusk Weight
  • Mirror Chroma Weight
  • Silver Badge
  • Golden Badge
  • Black Badge

Quantity

Description

Selective PCBs

We selected the 1.6mm PCB without flex cut to achieve a louder and fuller sound profile

  • All PCBs are QMK-based, VIA supported
  • Three PCB options:
    • Tri-mode Hotswap PCB (Non-flex Cut)
      • Support USB-C, Bluetooth, and 2.4GHz connection
      • Support both ANSI and ISO layout
      • NKRO
      • Polling rate: 1000Hz in wired and 2.4Ghz mode; 125Hz in BT mode
    • Wired Hotswap PCB (Non-flex Cut)
      • USB-C connection only
      • Support both ANSI and ISO layout
      • NKRO
      • Polling rate: 1000Hz
    • Solder PCB (Non-flex Cut)
      • USB-C connection only
      • Support both ANSI and ISO layout
      • NKRO
      • Polling rate: 1000Hz

    Plates with distinctive characters

    • Hard ———————————————> Soft:

      Carbon Fiber > Aluminum > FR4 > POM > PC

    • Clack ———————————————> Thock:

      Carbon Fiber > Aluminum > FR4 > POM > PC

    [Instock] Neo70 Addons
    [Instock] Neo70 Addons
    [Instock] Neo70 Addons
    More Information on the Qwertykeys Site

    Customization Options

    Badge Options

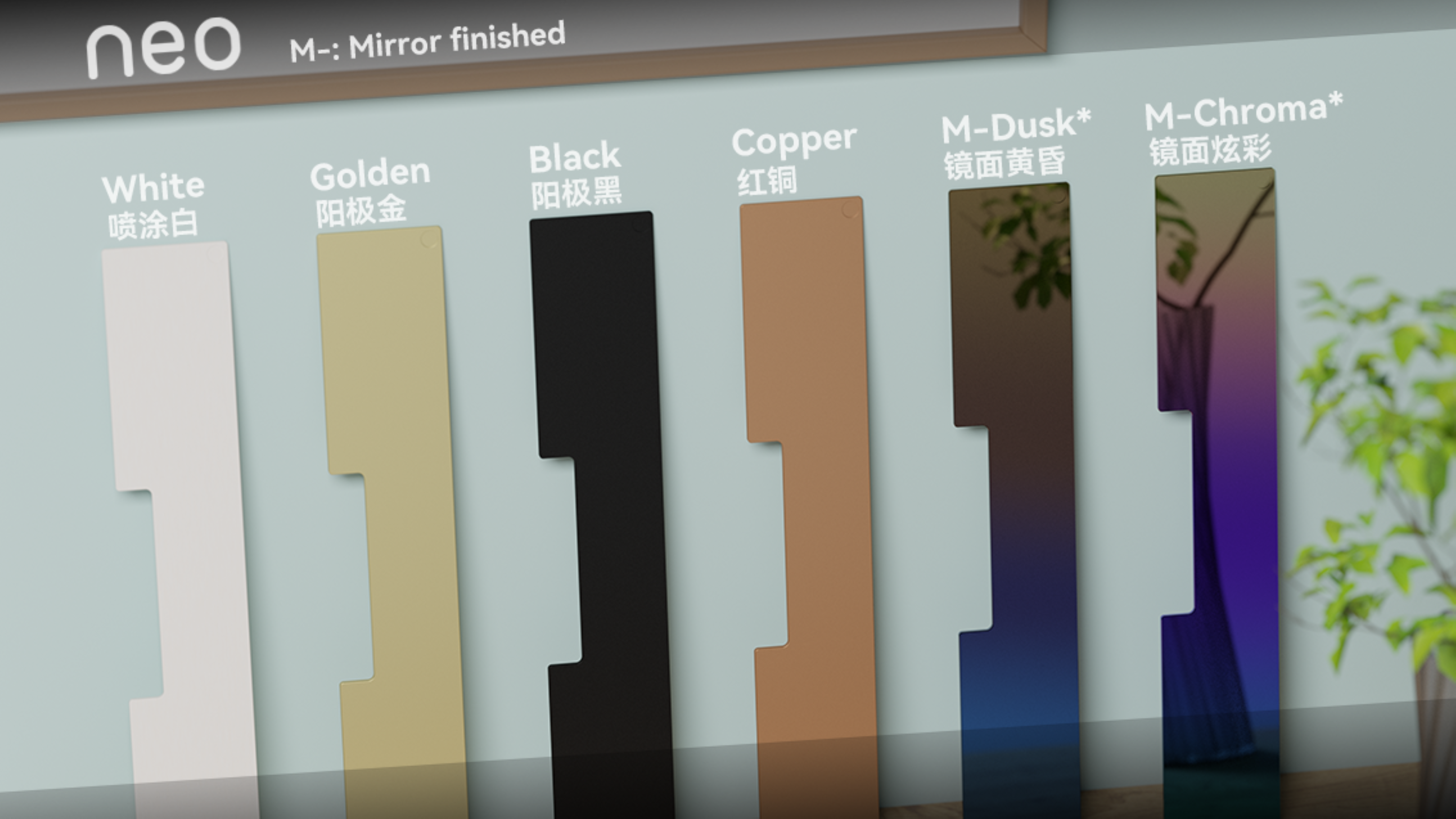

    Weight Options

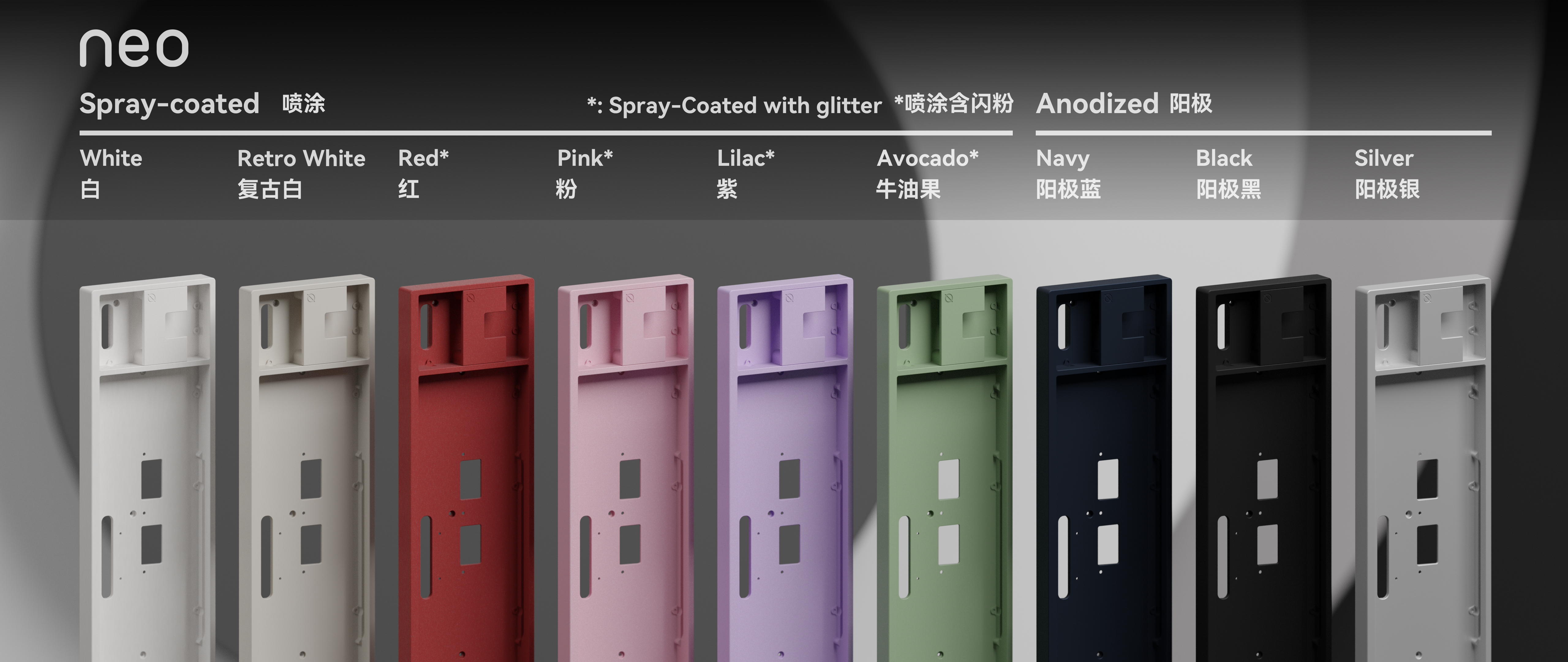

    Case Options

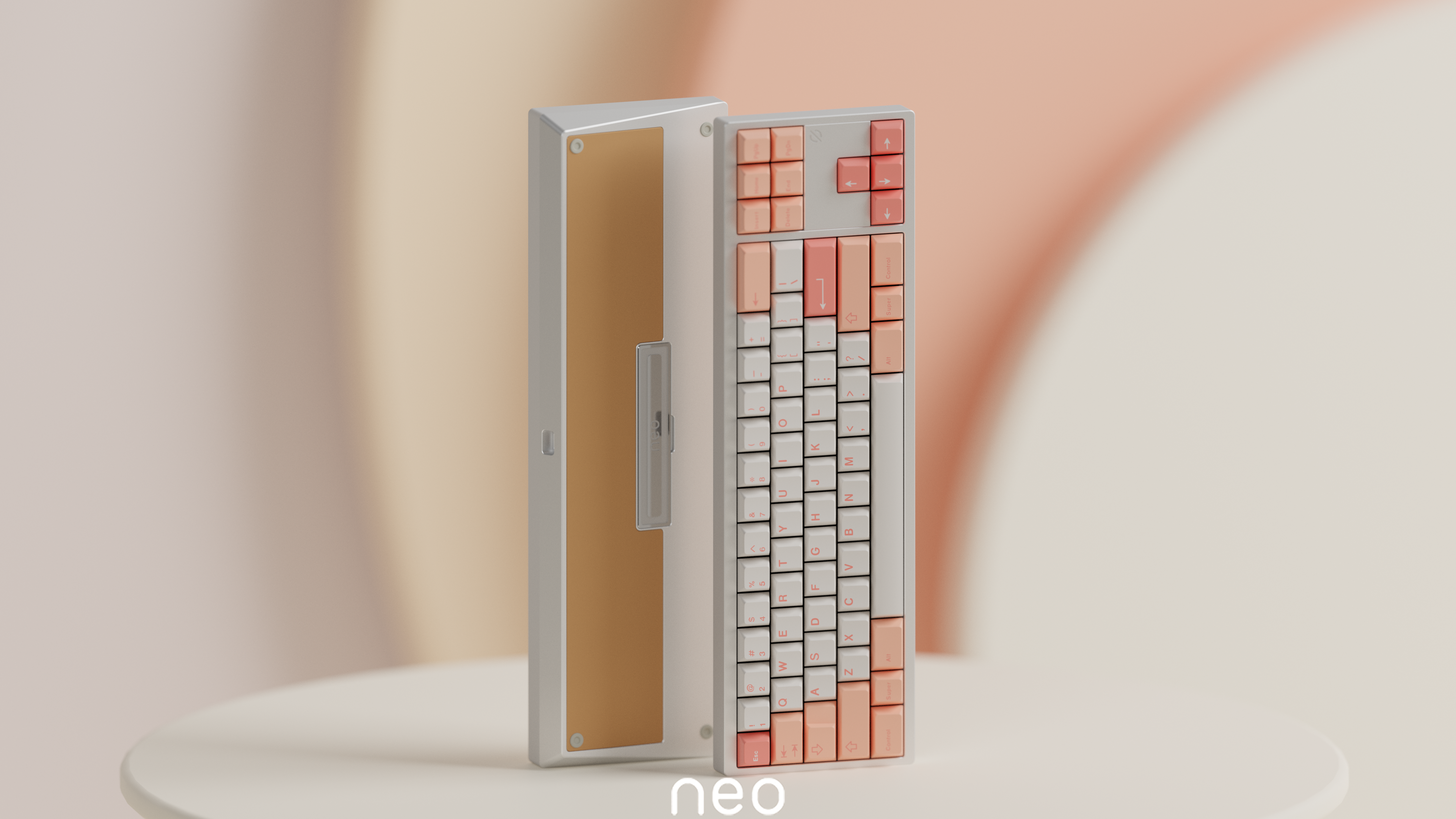

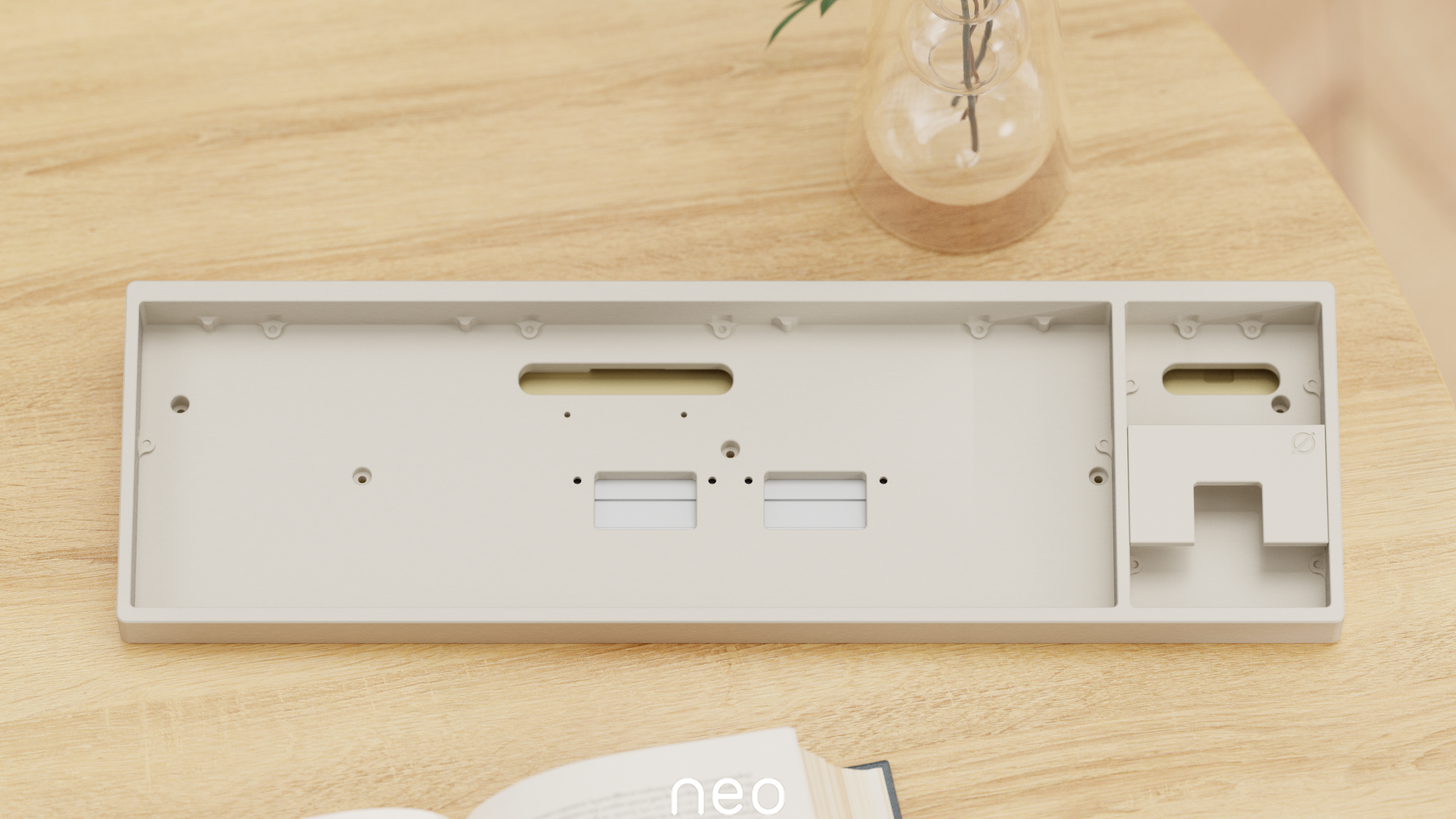

    Unibody Case

    Derived from the Neo65 but specifically designed for the FRL TKL layout, the unibody case of the Neo70 exemplifies the elegance of minimalism while offering a sturdy foundation for effortless assembly.

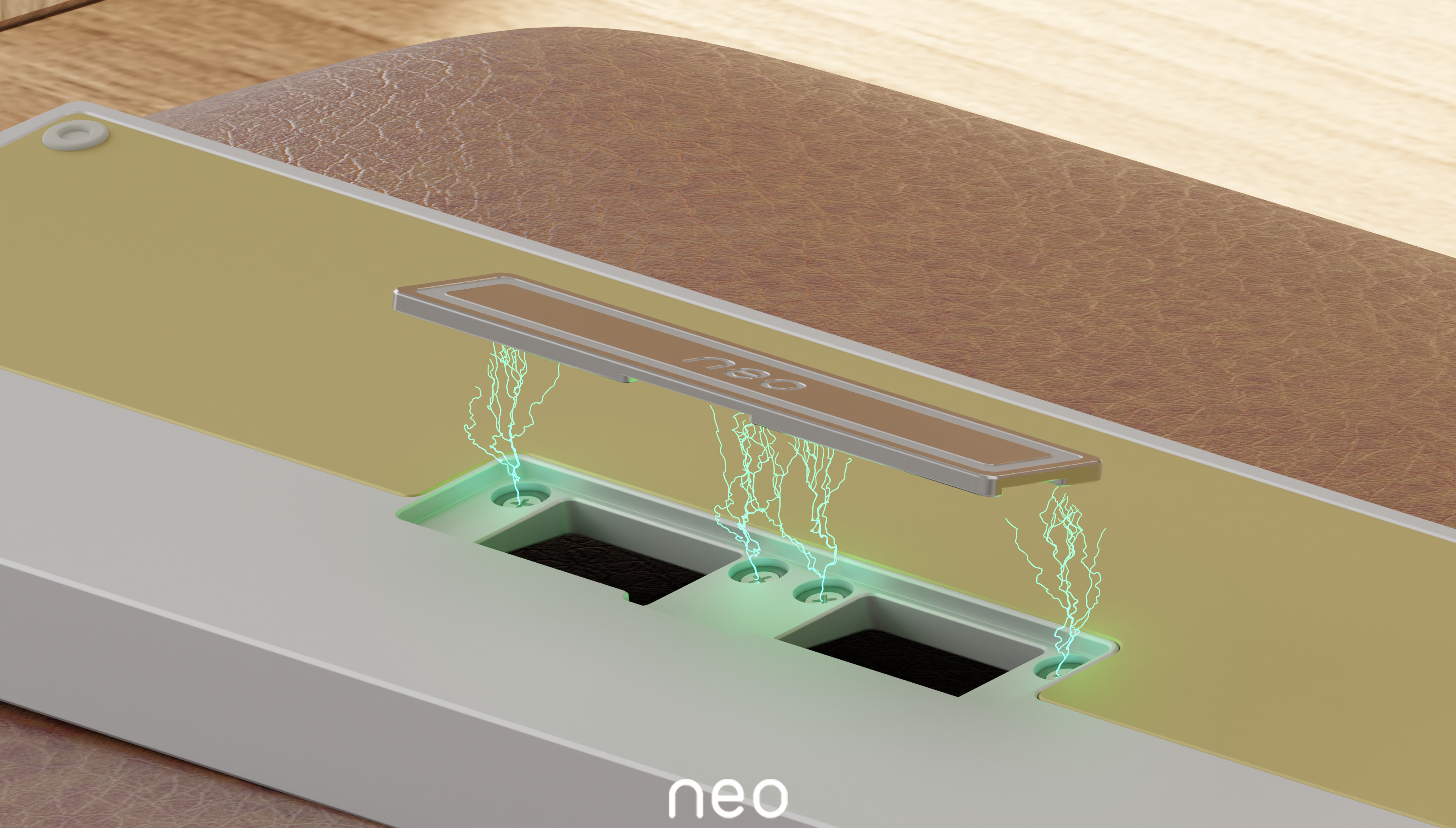

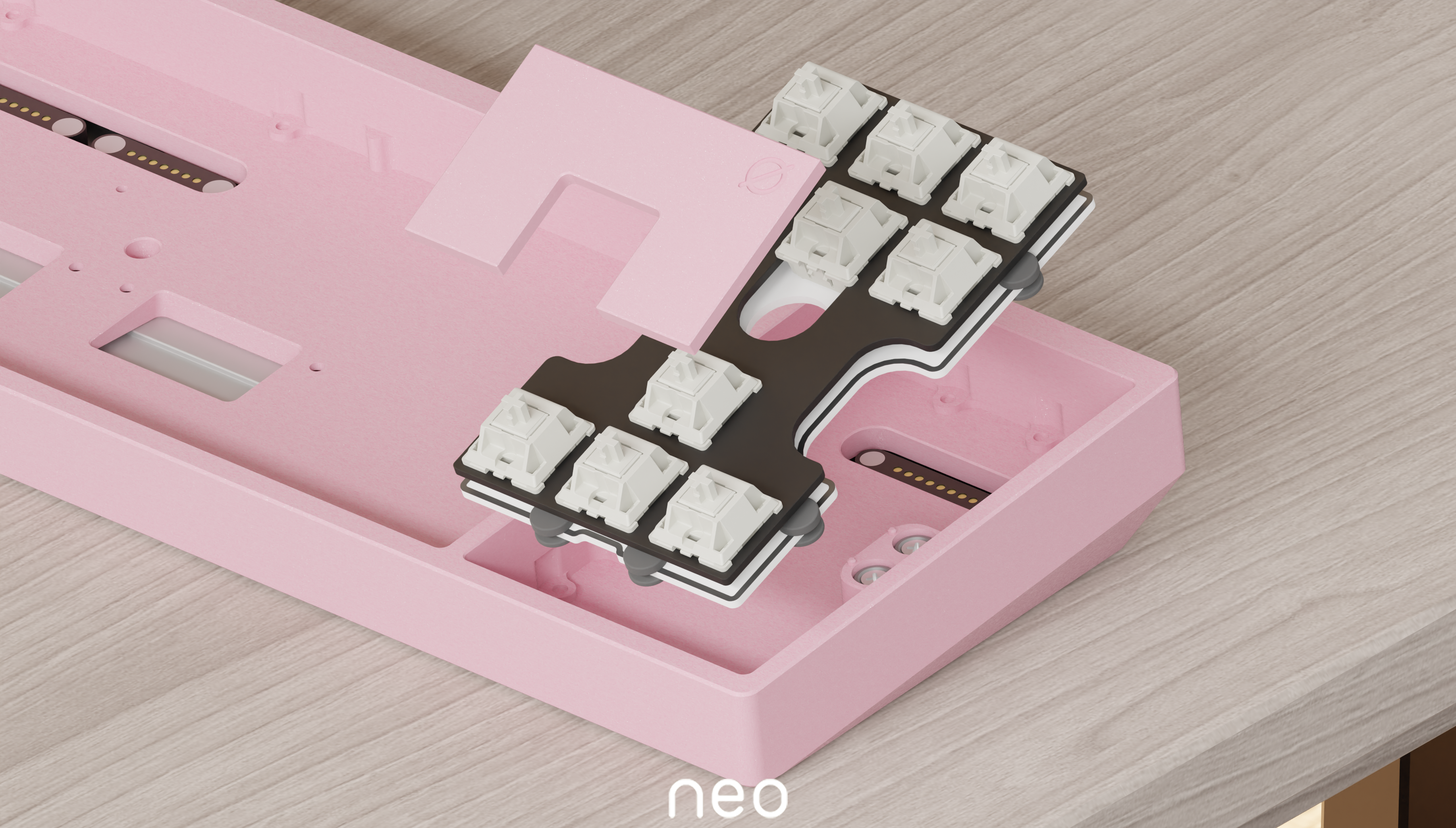

    Function keys are separated from the alphas to minimize potential hollow sounds and allow for individual adjustment. The cover plate above the arrow keys is attached using magnets, making it easy to remove the PCB whenever needed.

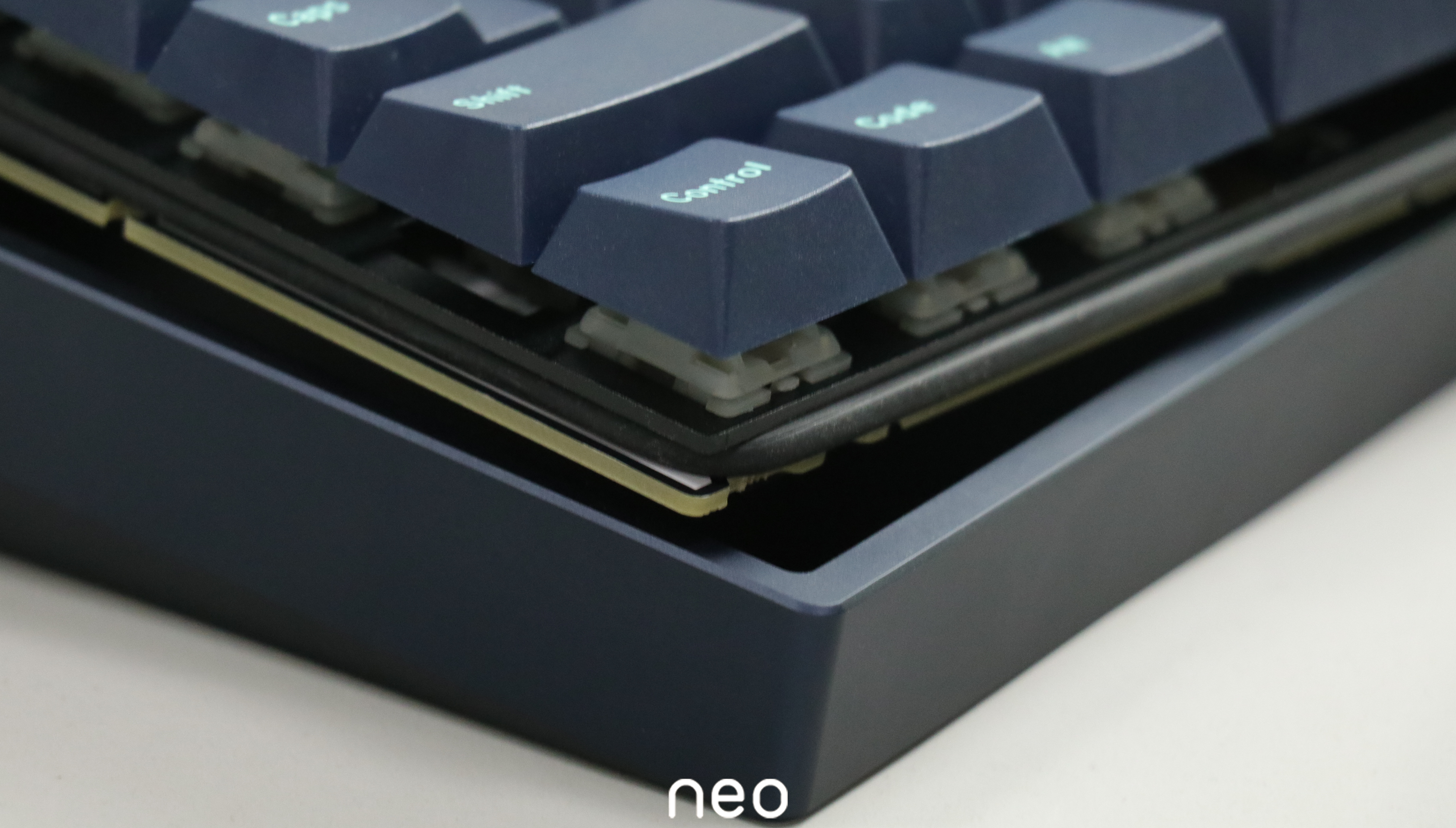

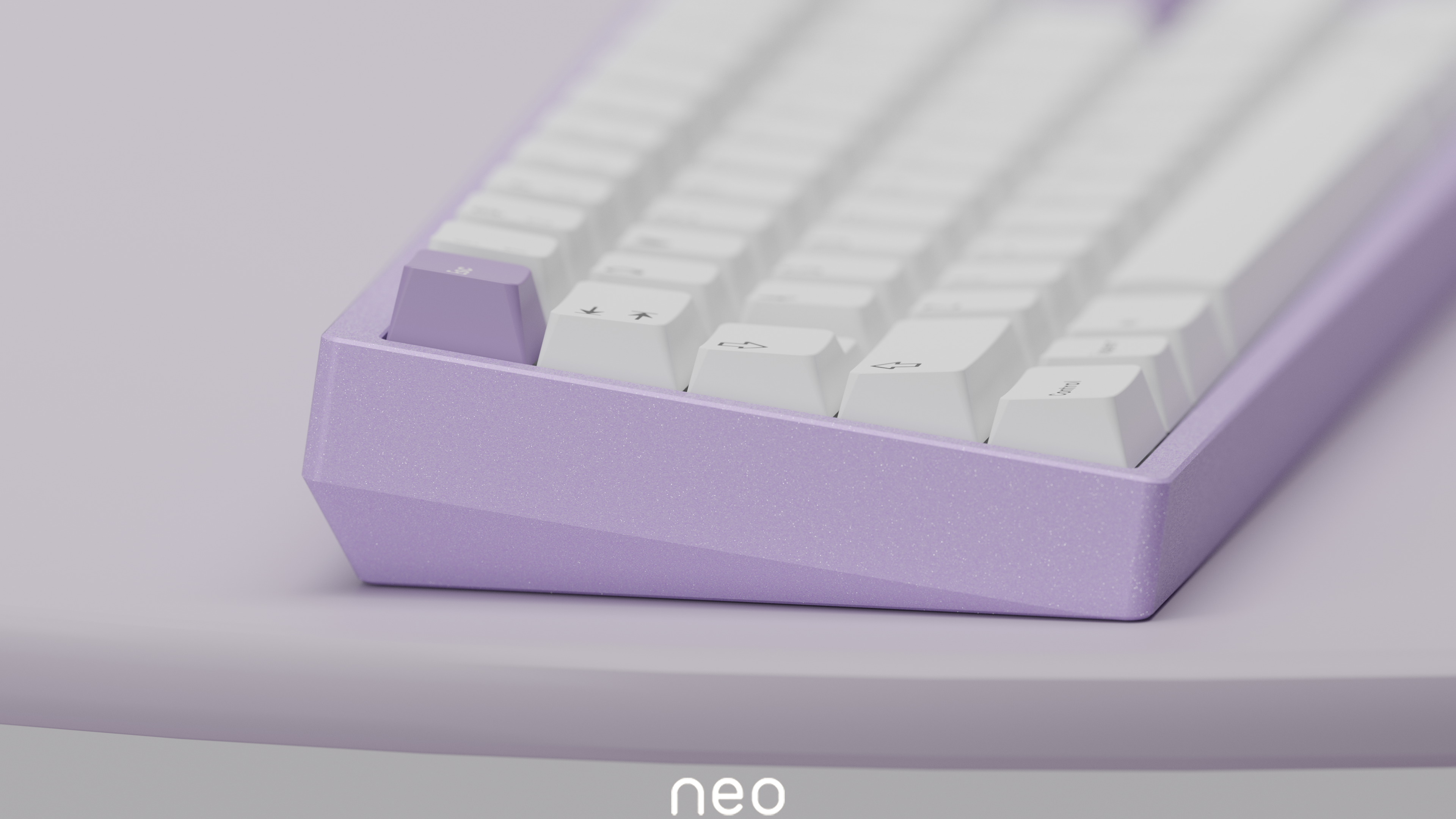

    Neat Side Profile

    We chose an inward-sloping edge to complement the minimal design on the front. This also makes it easier to pick up the keyboard.

    Dual Mounting System

    Gasket

    O-ring

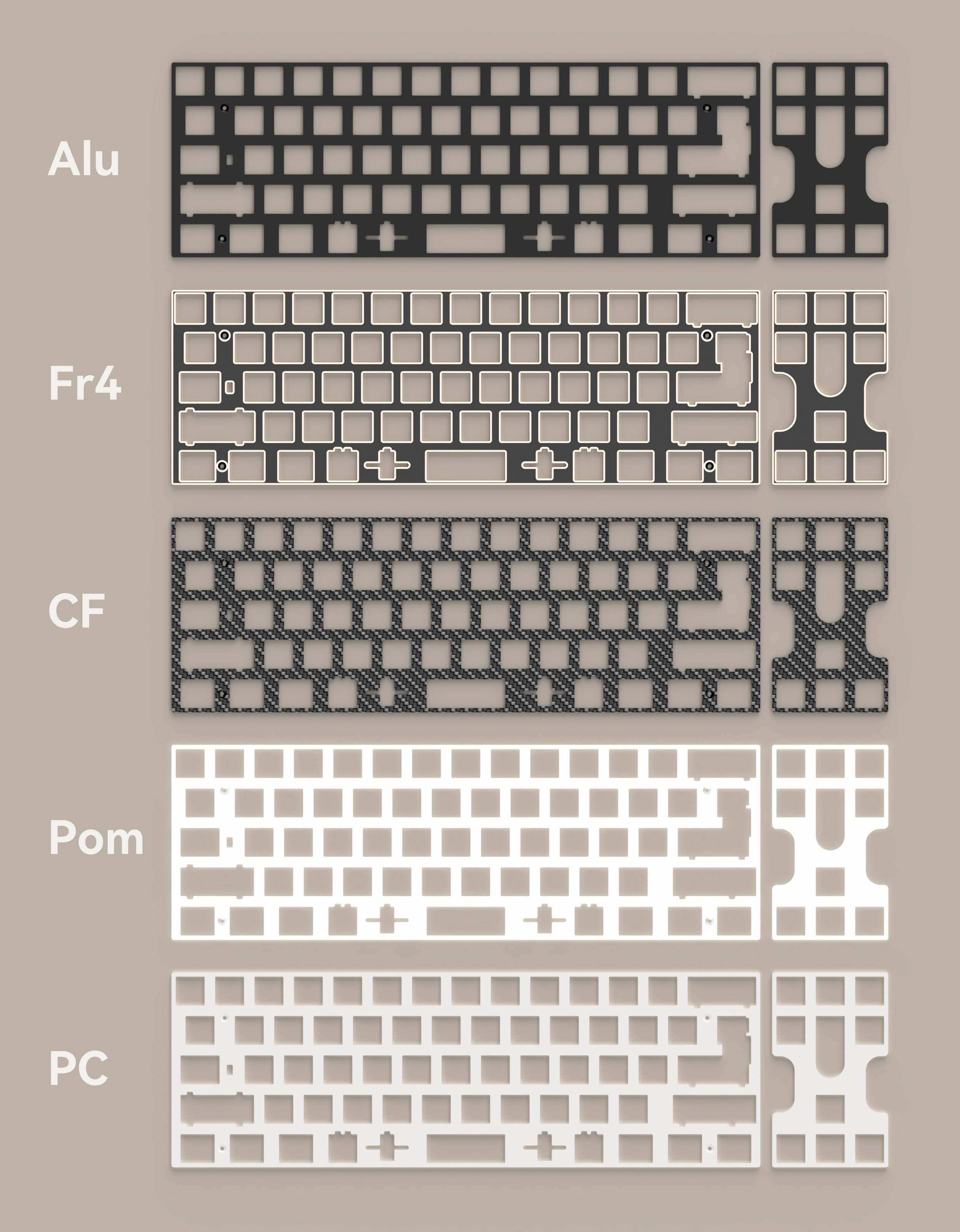

    5 Plate Options

    Plates with distinctive characteristics:

    • Aluminum
    • FR4
    • Carbon Fiber
    • POM
    • PC

    PCB Options

    • Tri-mode Hotswap PCB (Non-flex Cut)
    • Wired Hotswap PCB (Non-flex Cut)
    • Solder PCB (Non-flex Cut)

    1.6mm PCB without flex cut to achieve a louder and fuller sound profile

    QMK-based, VIA supported

    Frequently Asked Questions

    Specifications

    Typing angle: 8 degree

    Front height: 17.5mm

    Size: 356.5mm * 107.8mm

    Weight:

    • with aluminum weight: 0.89kg before building, 1.26kg after building
    • with copper weight: 1.16kg before building, 1.53kg after building
    • with stainless steel weight: 1.13KG before building, 1.5kg after building
    What does the kit contain?

    1. Case

    • Including one pre-installed external weight
    • Including one pre-installed badge of your choice
    • One 3000 mAh batteries will be installed inside the bottom case for orders with Tri-mode PCBs
    • Orders with wired PCBs will receive fillers for the battery compartments

    ㅤ

    2. PCB

    • PCB of your choice
    • 1x PE sheet
    • 1x PCB foam
    • Standoffs
    • Tri-mode PCB comes with a 2.4Ghz dongle

    ㅤ

    3. Plate of your choice

    4. Poron Case Foam

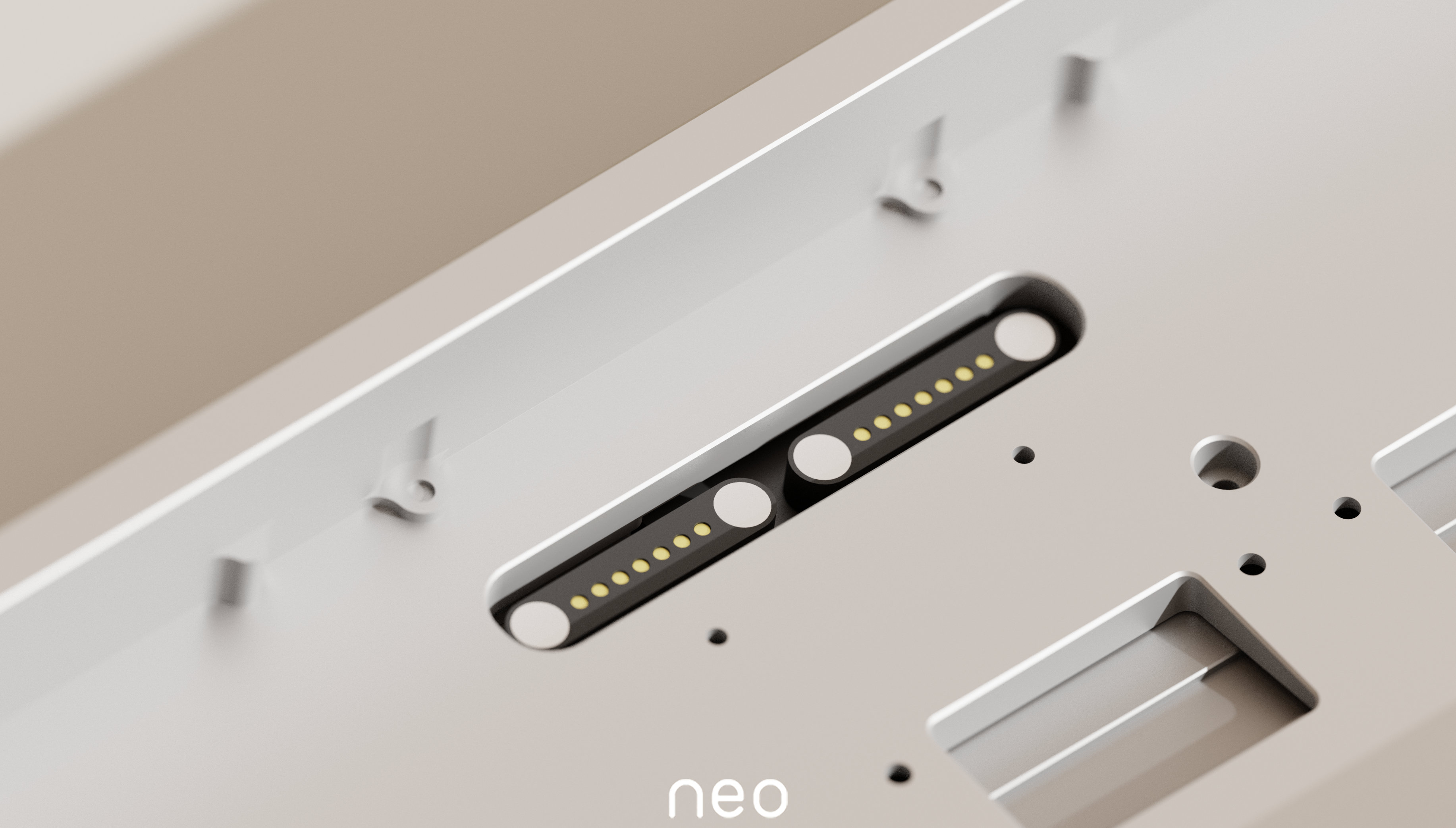

    5. PCB Daughterboard*3 (pre-installed)

    6. Silicone Gaskets

    7. O-ring (30 duro)ㅤ

    8. Rubber feet

    9. Weight screws in silver and black

    10. Daughterboard FPC Cable

    11. Free Gifts (Not covered by warranty)

    • Keyboard carrying case
    • 1x Keycap & switch puller
    • 1 set of 70% clip in stabilizers
    • Coiled USB-C cable
    Do I need to purchase a Daughterboard?

    No, the daughterboard is an extra. The barebones kit comes with one.

    Can I build it plateless?

    Yes, however, we only recommend building plateless with a solder PCB.

    When will I receive my order?

    Instock units will be shipped out in 2-3 working days.

    Group Buy units will follow their respective estimated time of arrival.

    Do extra Tri-mode PCBs come with battery?

    No.
