Colour Options

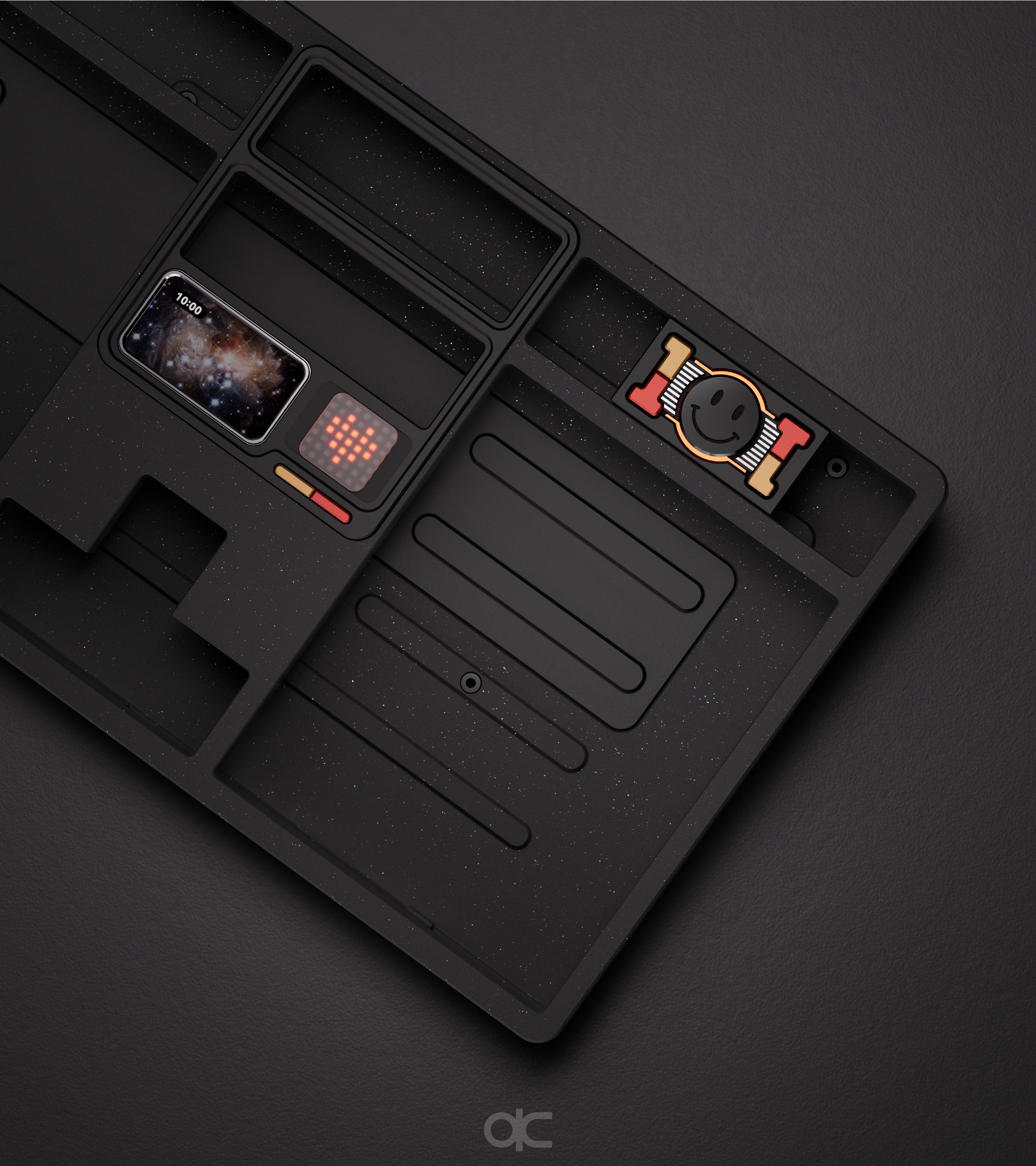

Spray-coated Black

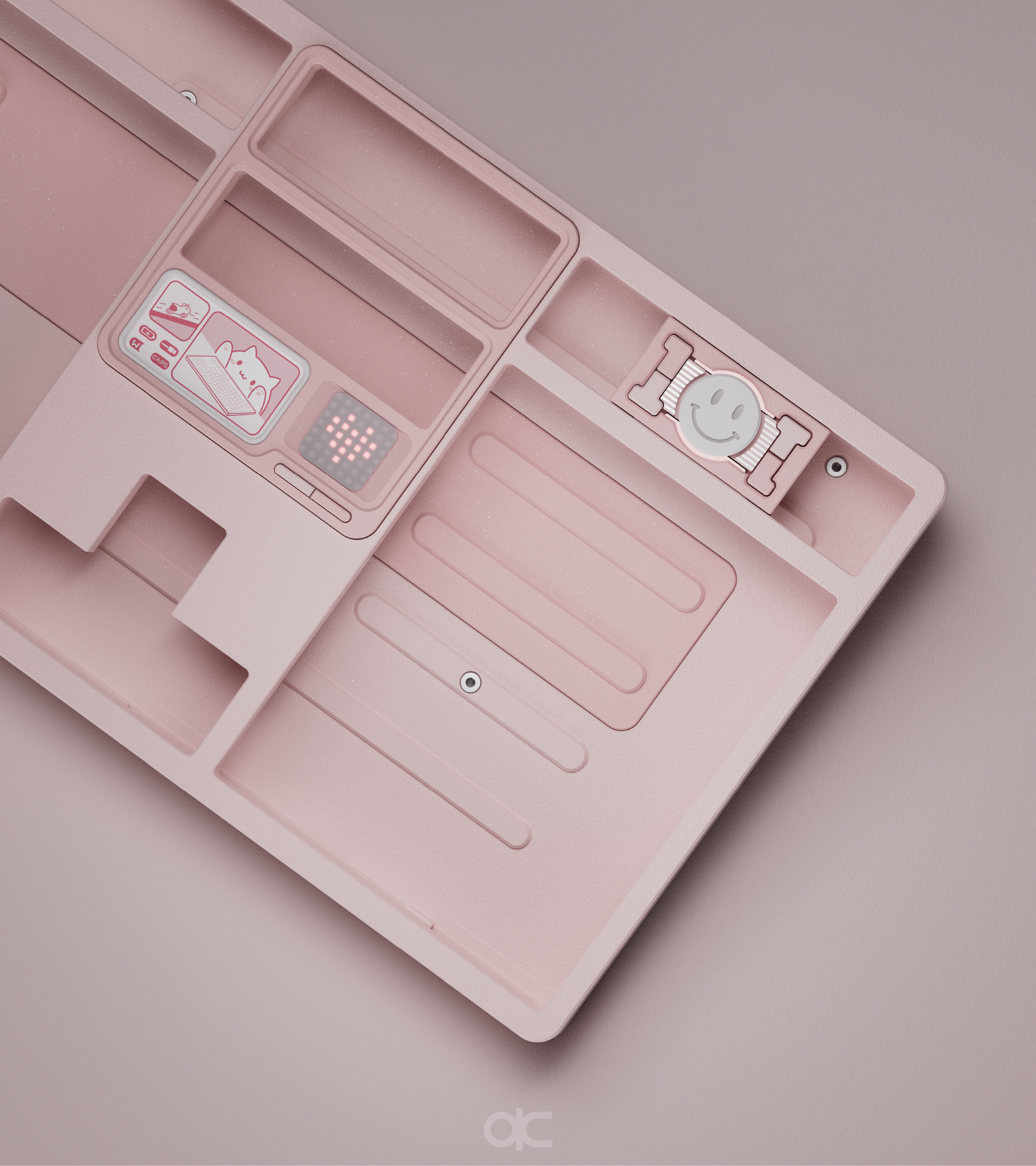

Spray-coated Pink

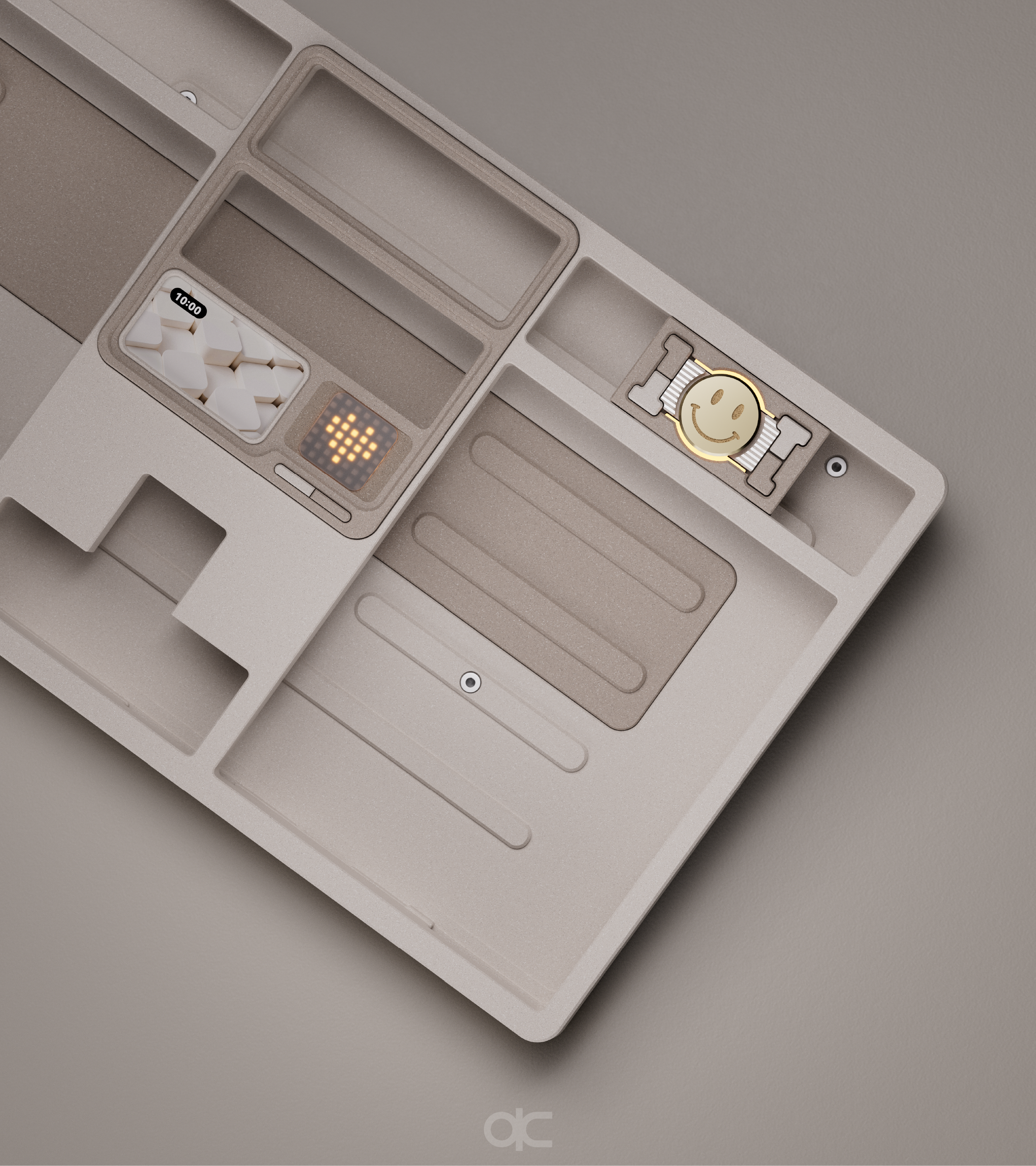

Spray-coated Retro White
Anodized Sandgold
Description

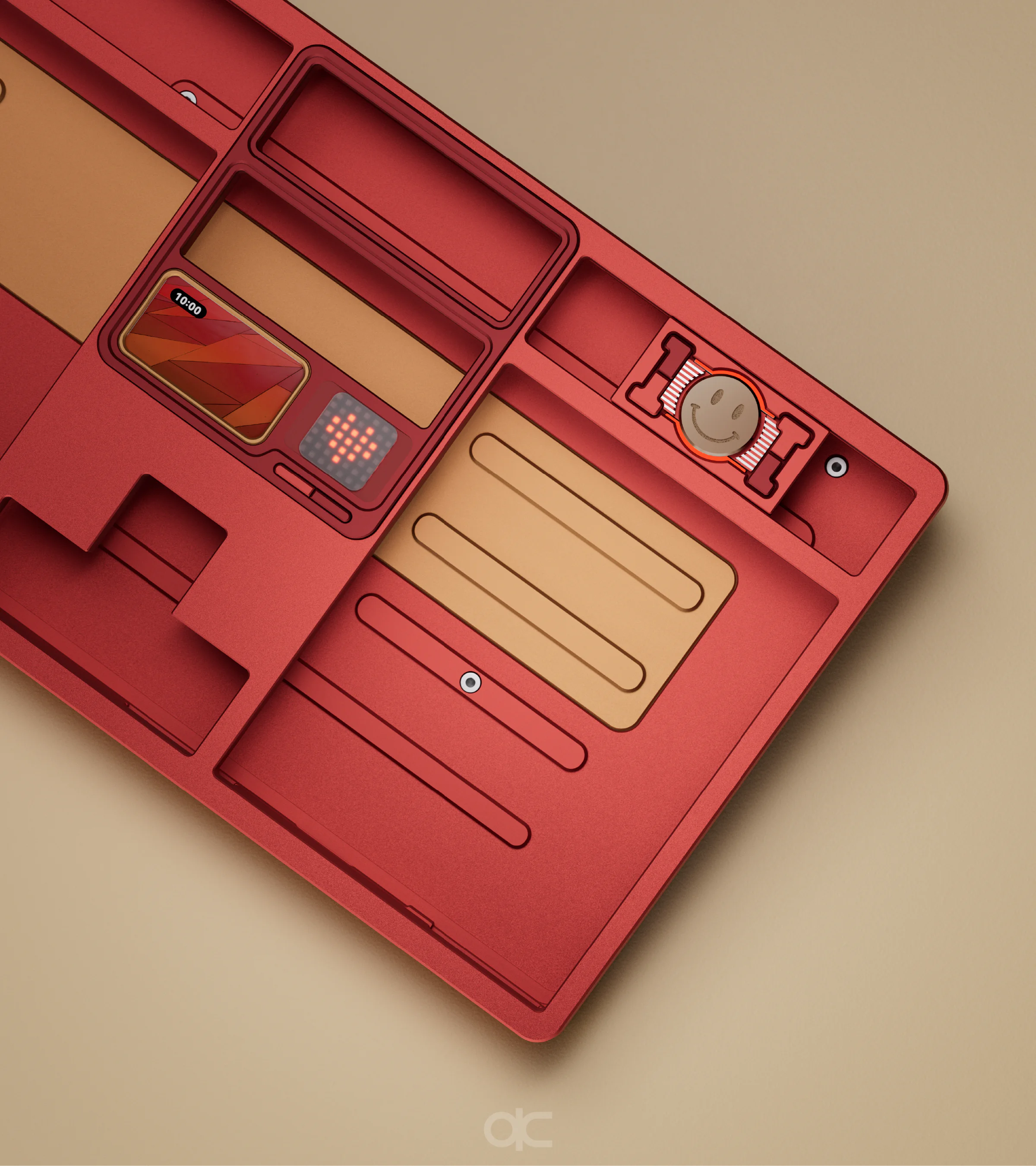

Anodized Red

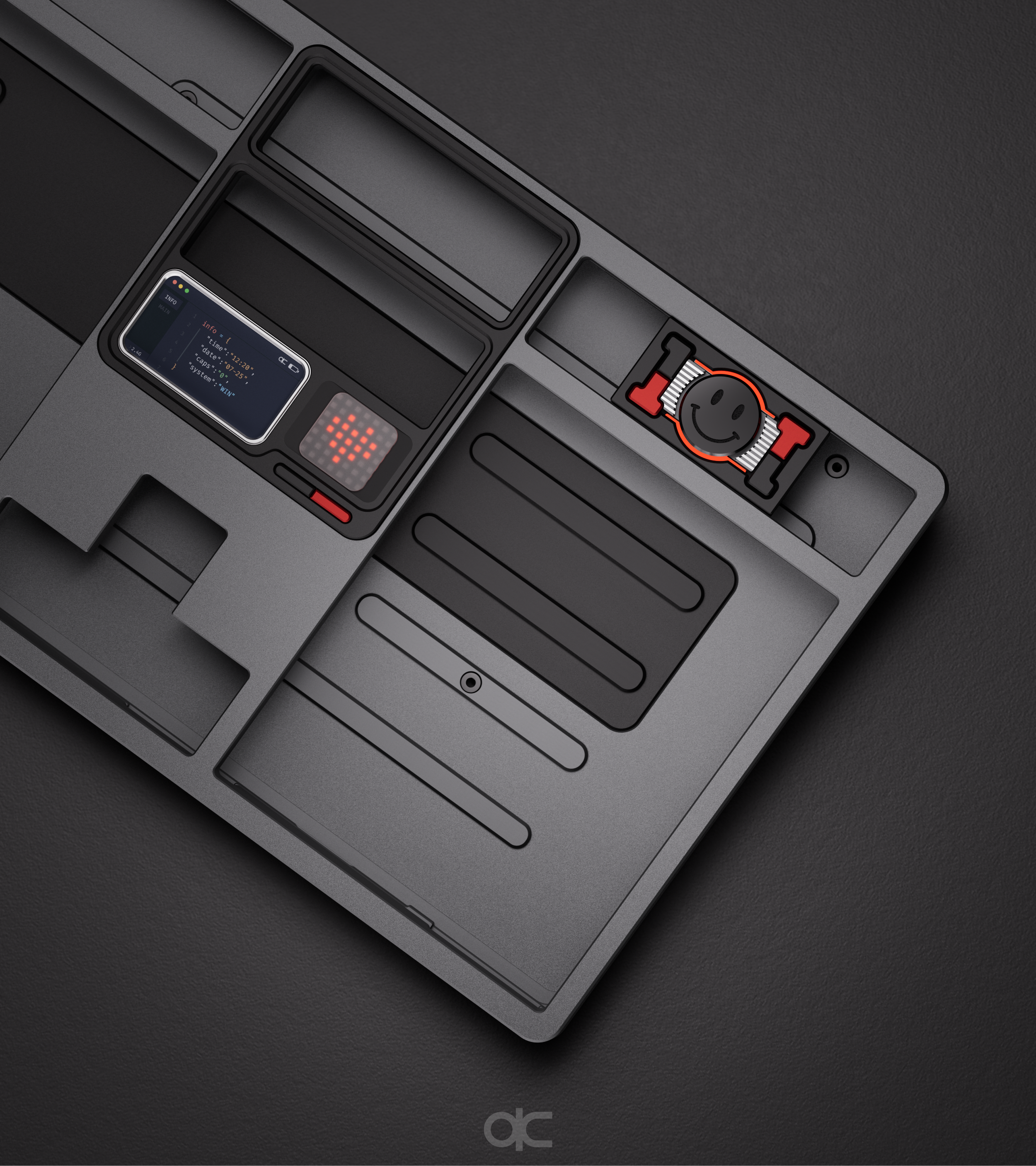

Anodized Grey

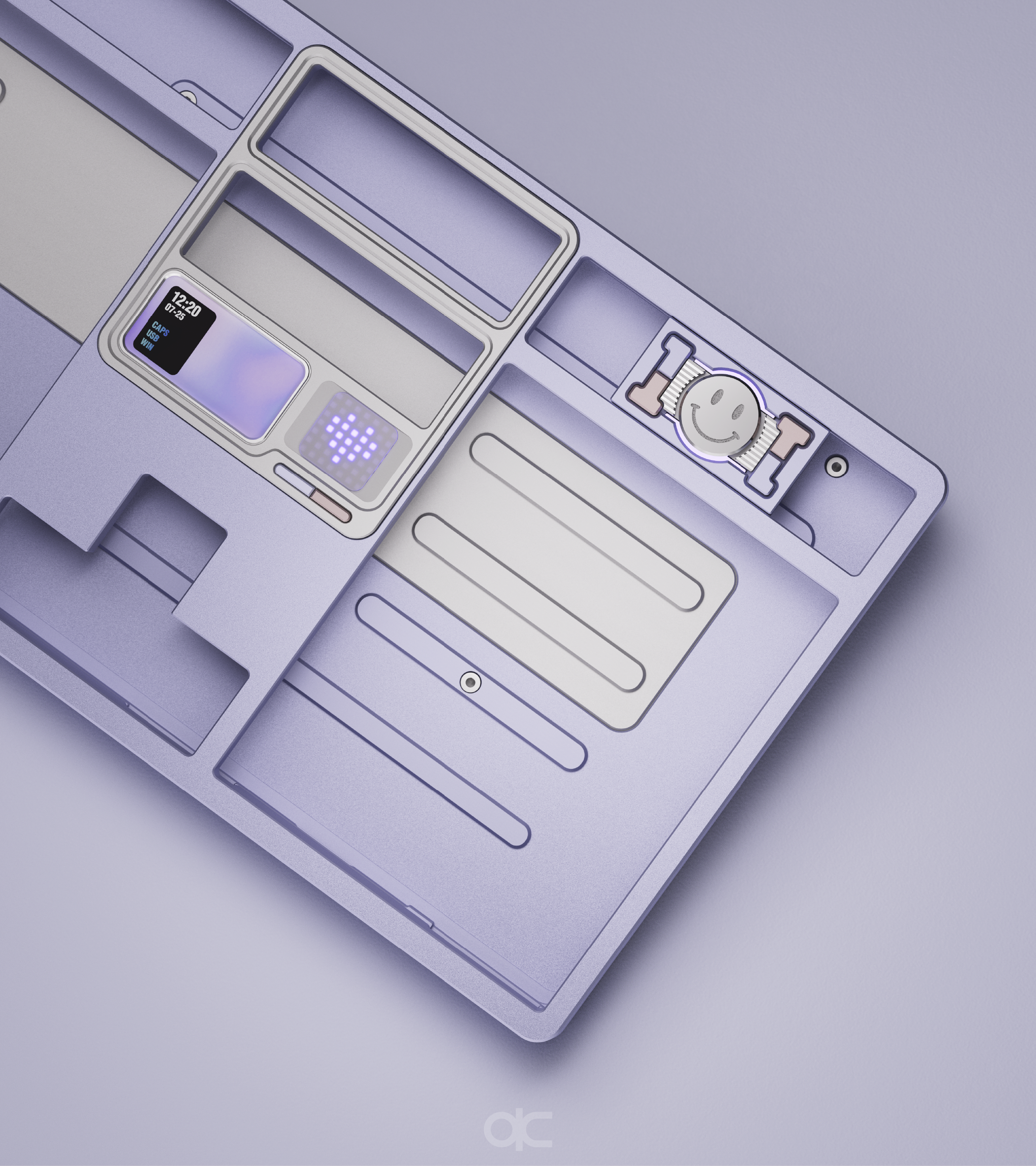

Anodized Lilac

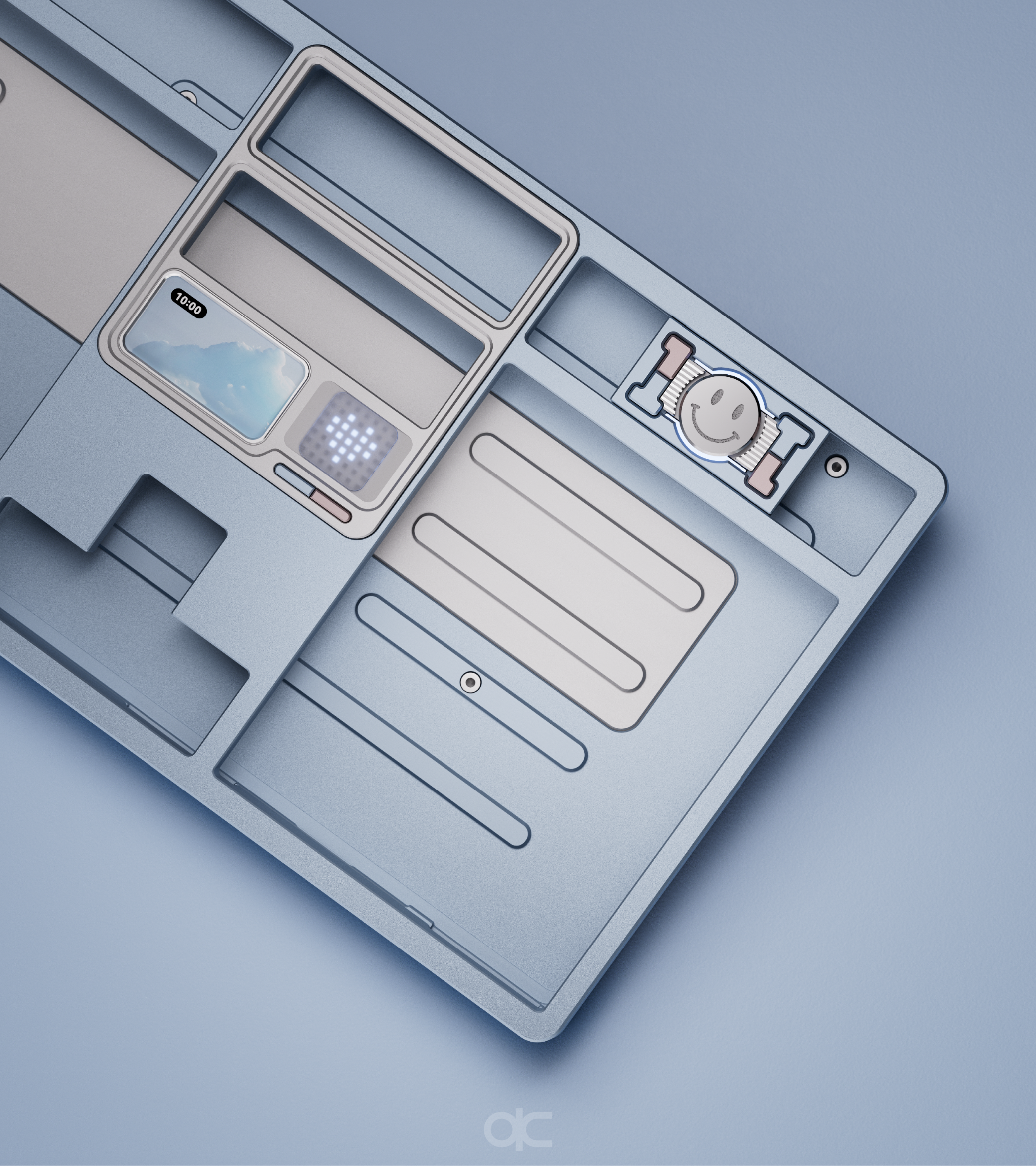

Anodized Ice Blue

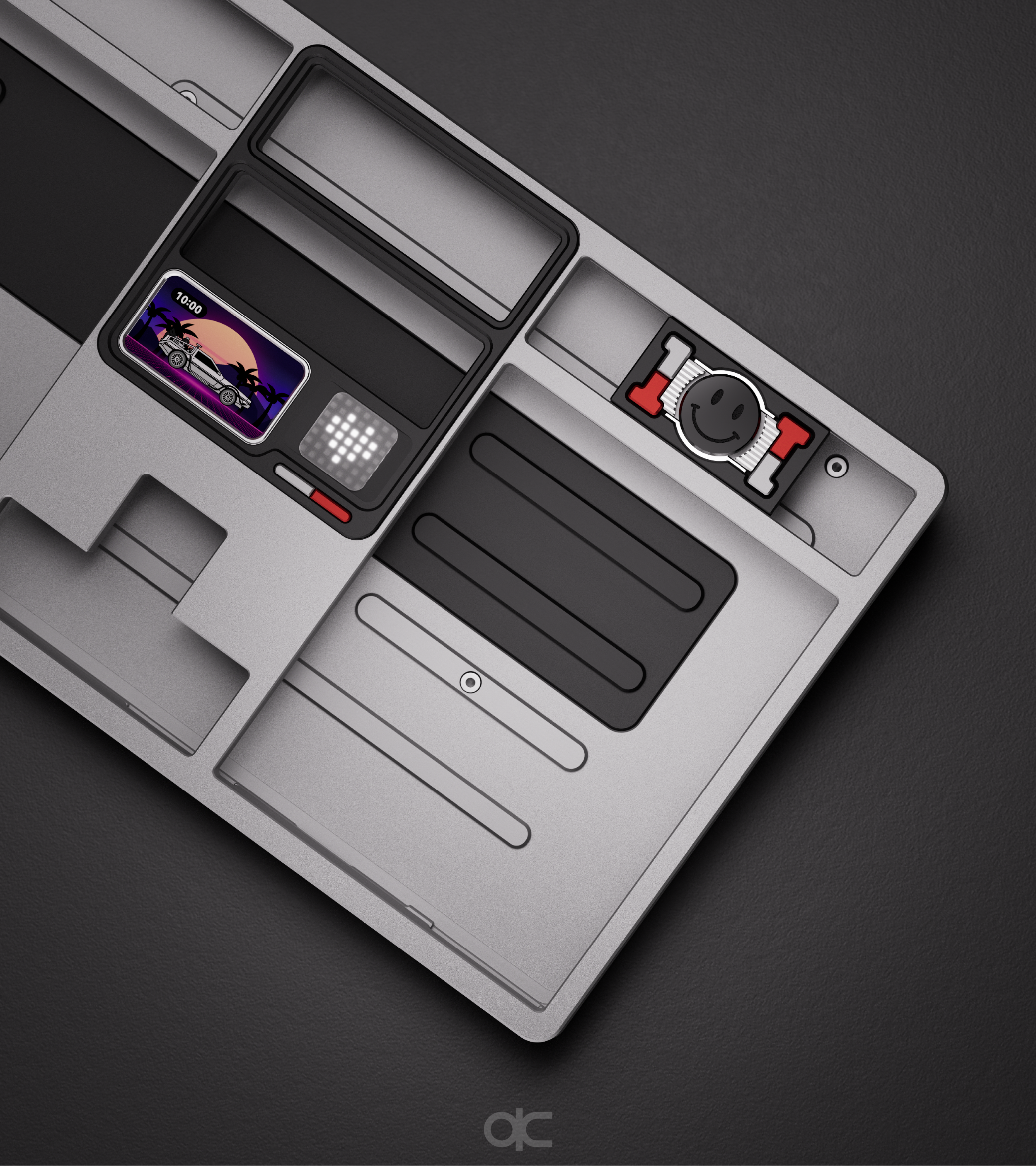

Anodized Silver

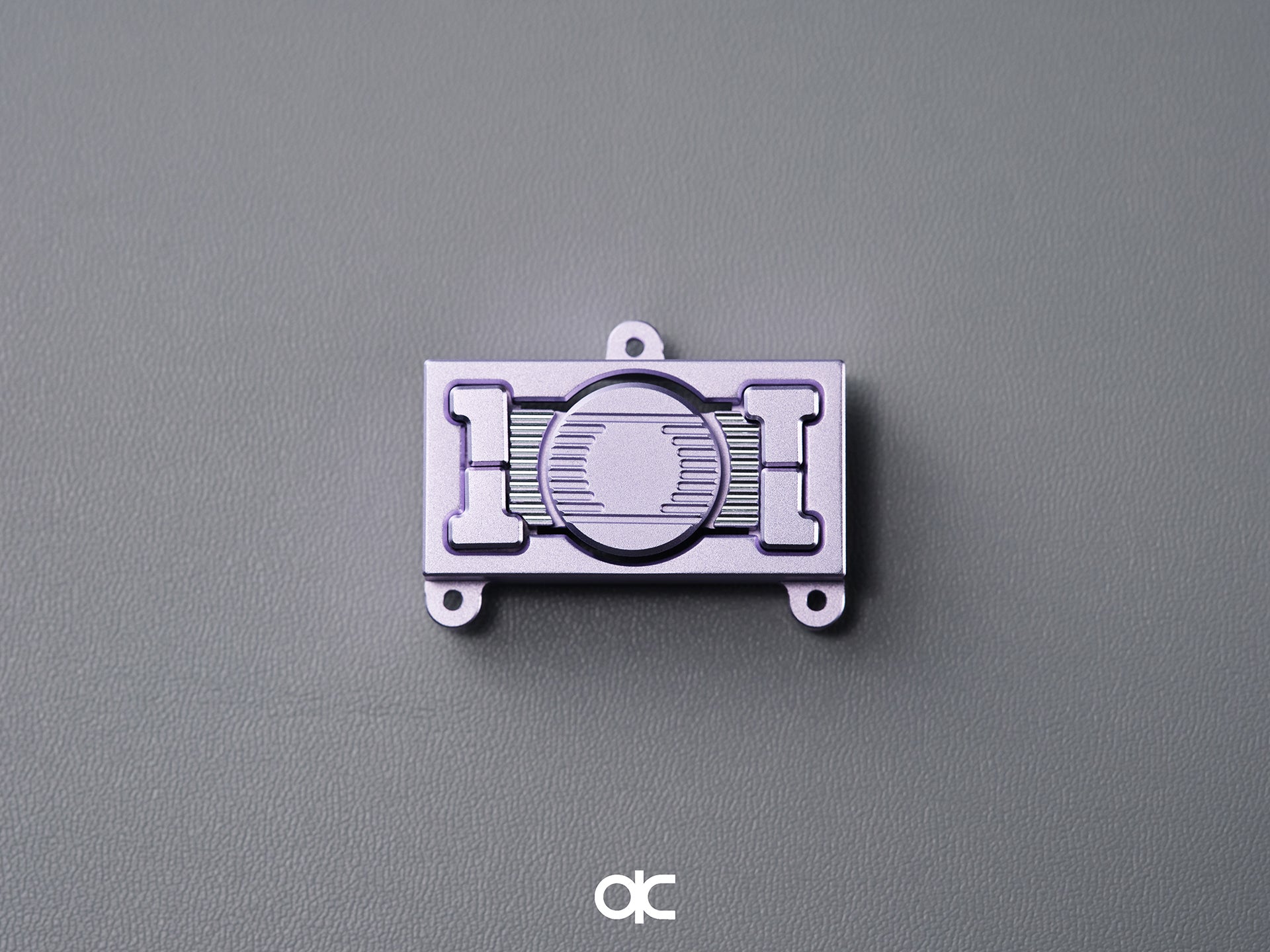

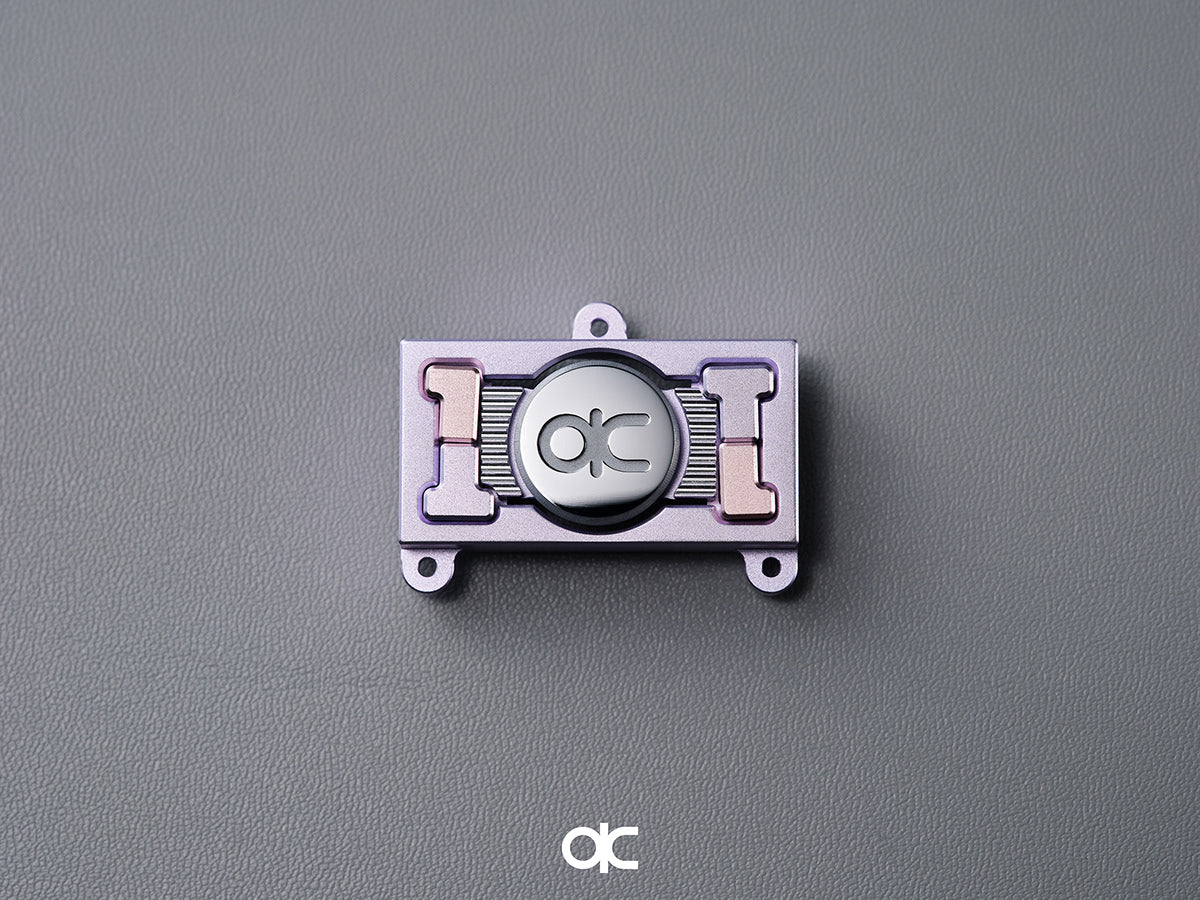

Interchangeable Badges

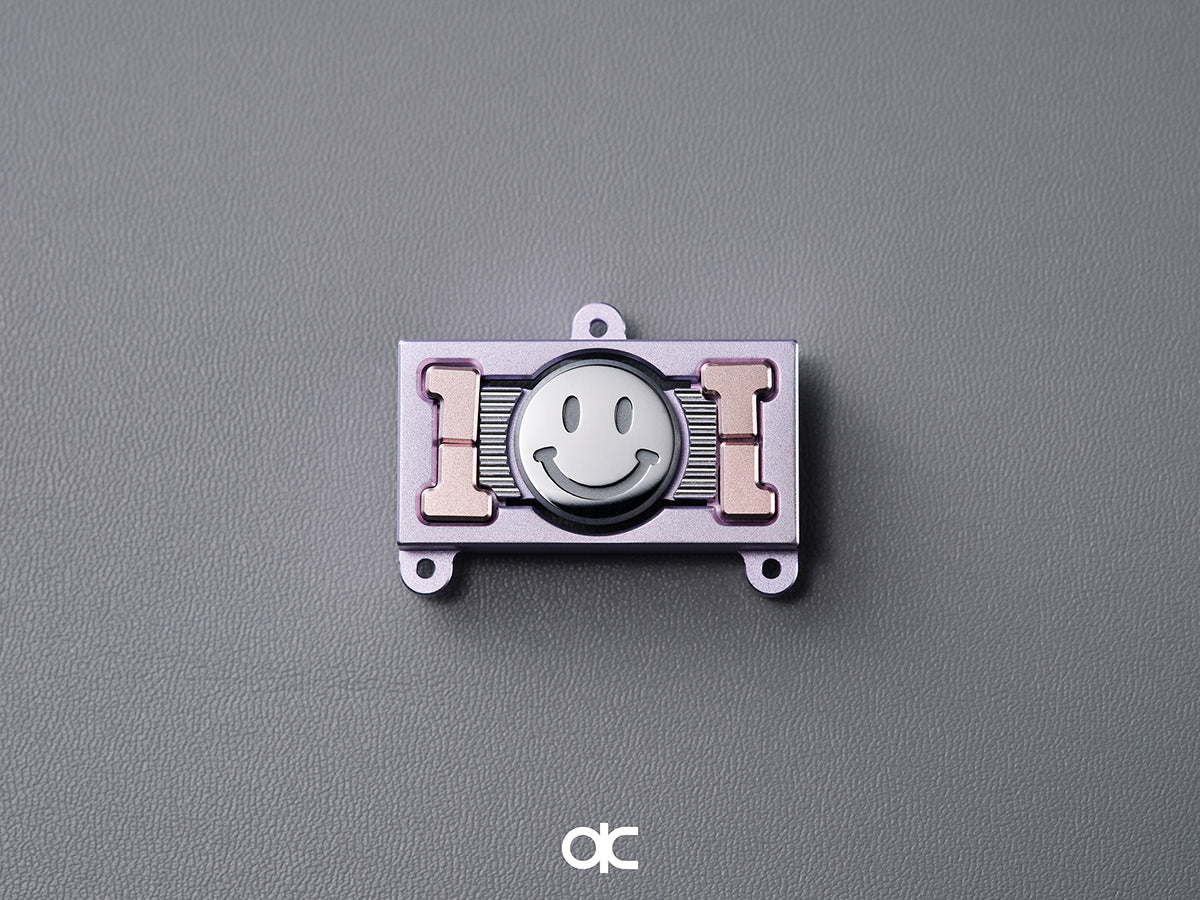

Above the number pad, we've added magnetic badges that spell out "101". These customizable badges offer several interchangeable options:
Circular badge: The circular badge on the front features a smiley face that can be swapped with the circular logo badge on the weight.
"1" badges: The two "1" badges on the front can be swapped with the "T" and "L" badges on the right side of the back.
The design files for the badges will be released later to allow users to design their own badges and make their QK101 truly unique.
Customisable Screen

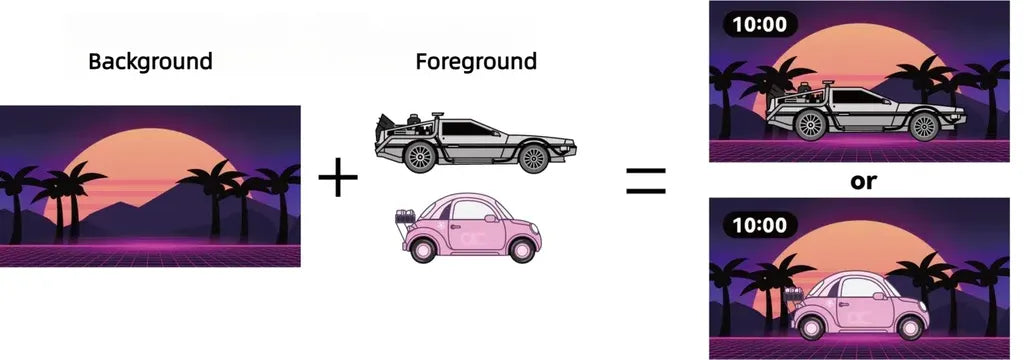

The QK101 features enhanced screen customization through its new dynamic theme. You can now upload and independently control separate GIFs for the foreground and background using key combinations. The foreground GIF's position and size are fully adjustable to your liking. As you type, both GIFs automatically adjust their playback speed to match your typing rhythm.
This feature enables playful interactions, such as displaying "Street Fighter" animations, or you can simply show a background GIF.
Mounting Structure

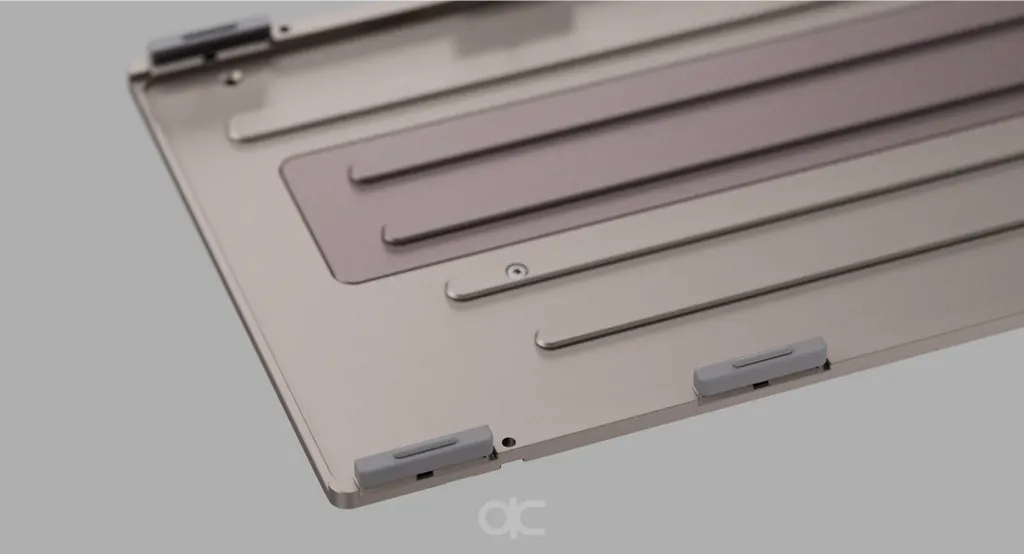

Gasket Mount - Bouncy
Features enhanced flexibility while maintaining a consistent typing feel. The QK101 offers a softer, bouncier typing experience than QK100, striking an ideal balance between comfort and responsiveness.
Gasket Mount (Reversed) - Firm
For a firmer typing experience, you can flip the gasket mount over. This creates more contact between the gasket and bottom case, resulting in a more rigid feel.

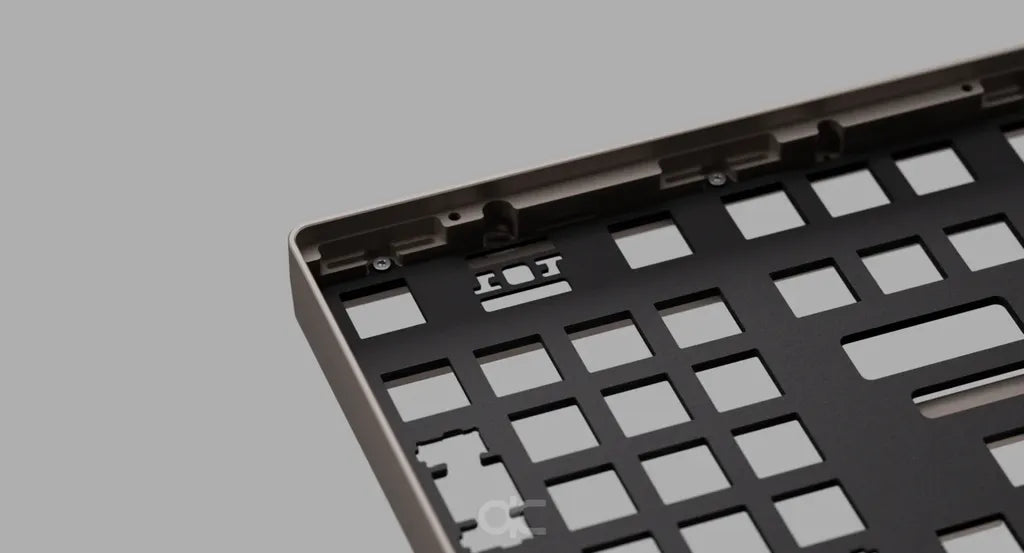

Top Mount - Firmest
For those seeking the firmest setup, the top mount option secures screws directly into the top case, providing maximum stability and an extremely solid typing experience.

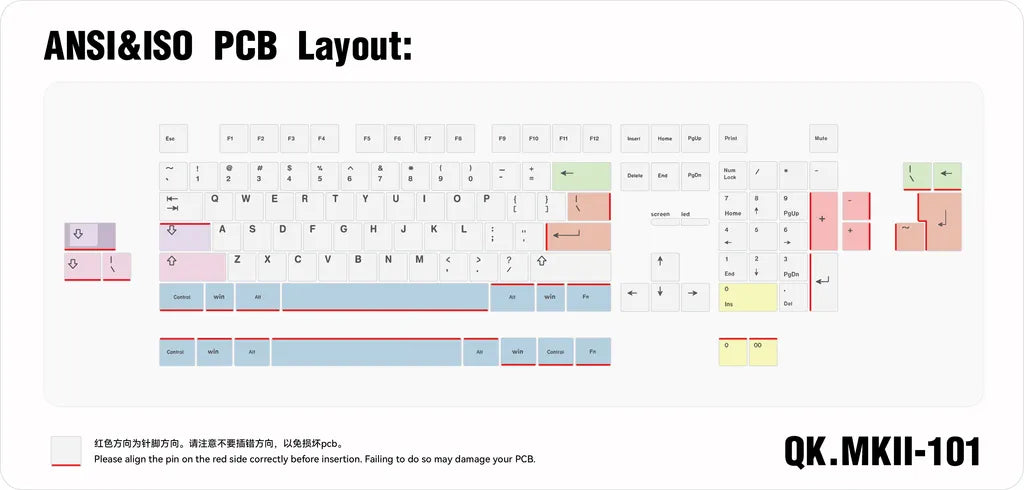

ANSI & ISO PCB Layout
ALL PCBS:
- Support USB-C, Bluetooth, and 2.4GHz connections
- Compatible with both ANSI and ISO layouts (ISO layout requires PCB-mount stabilizer plate)
- Support both WK and WKL layouts
- Compatible with both 6.25u and 7u spacebars (7U requires PCB-mount stabilizer plate)
- Using QK's custom VIA web configurator for keymapping and screen customization, as standard VIA doesn't support advanced screen functions
Tri-mode Flex-cut Hotswap PCB w/Per-key RGB
- 1.2mm thick
- Per-key RGB
Tri-mode Flex-cut Hotswap PCB
- 1.2mm thick
- No per-key RGB
Tri-mode Non-flex cut Hotswap PCB
- 1.6mm
- No per-key RGB

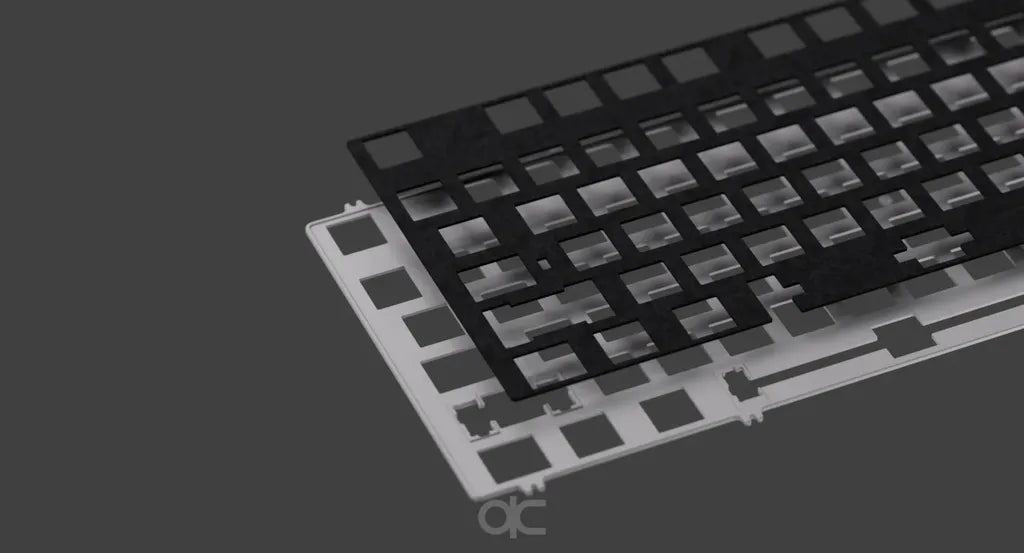

Plate
Two Materials: ALU or FR4
(POM & PP removed due to the nature of it deforming after long-term use)
Plate cushion
- integrated a plate cushion above the plate itself.
Plate Mounted Stabs will be provided with Plate Mounted Plate (NEW)
PCB Mounted Stabs will be provided with PCB Mounted Plate (Traditional)
Options:
- FR4 plate with plate cushion (PCB-stab)
- FR4 plate with plate cushion (Plate-stab) - Only support 6.25U ANSI layout
- FR4 plate without plate cushion (PCB-stab)
- Alu plate with plate cushion (PCB-stab)
- Alu plate with plate cushion (Plate-stab) - Only support 6.25U ANSI layout
- Alu plate without plate cushion (PCB-stab)

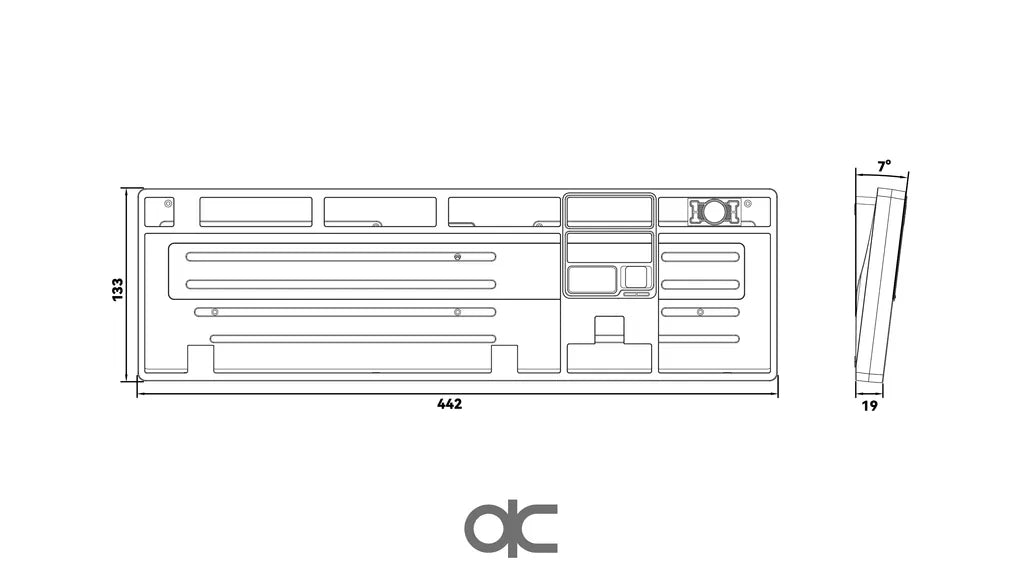

Specifications
- Typing angle: 7 degrees
- Front height: 19mm
- Size: 133mm * 442mm
- Weight: 1.855kg before build
