QK65v2 Classic

Notion Page

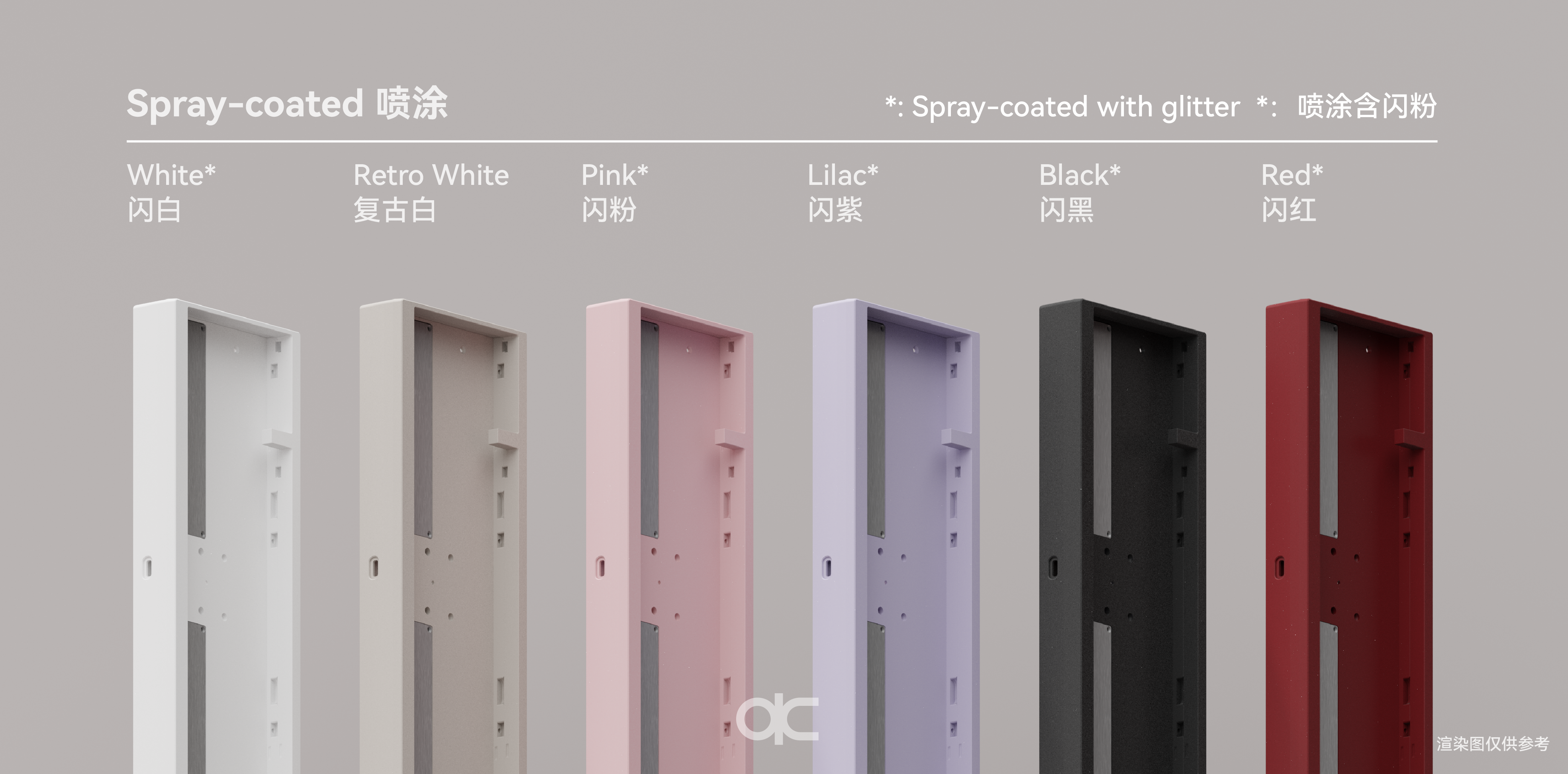

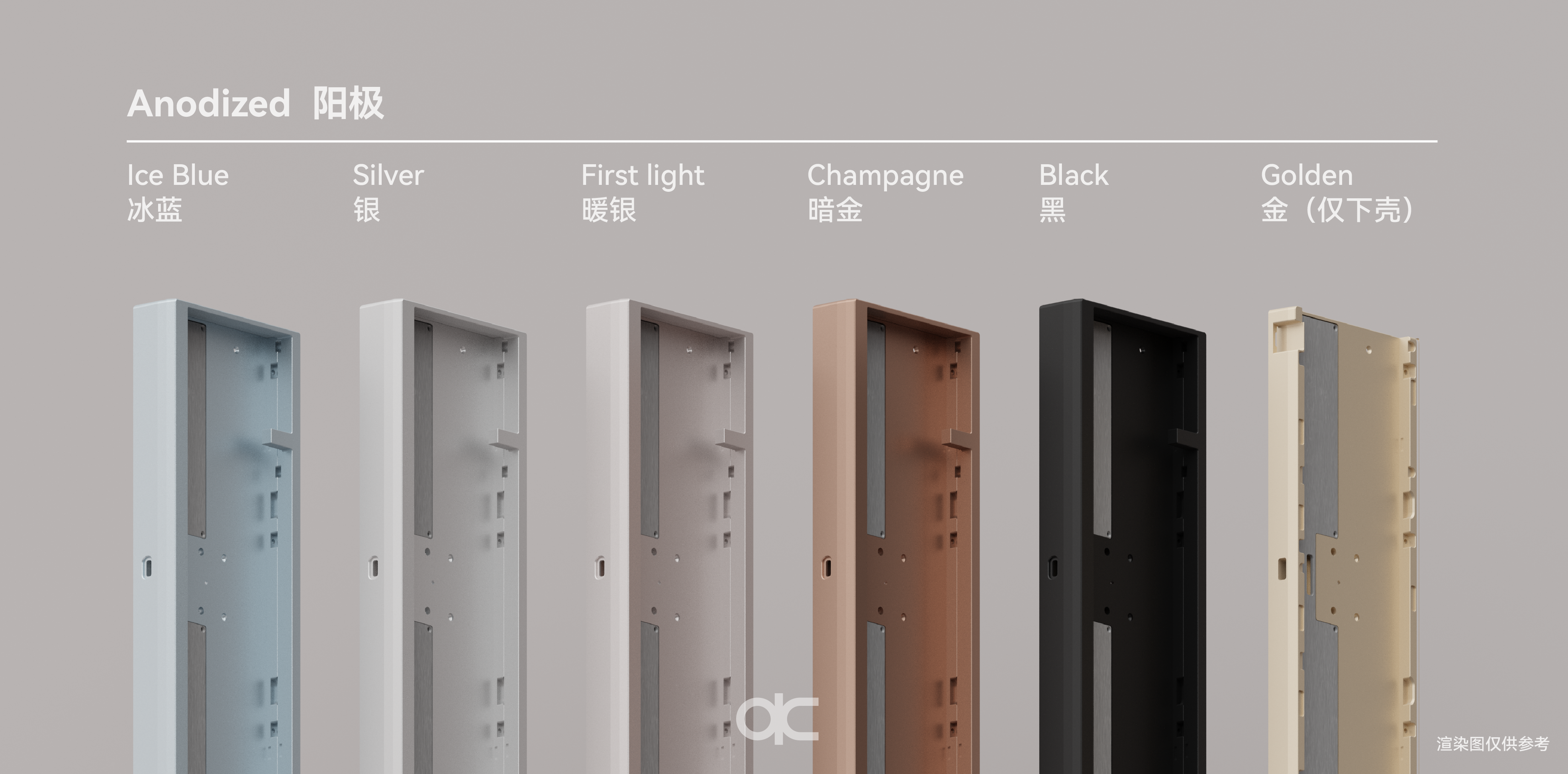

Case Options
Case Options

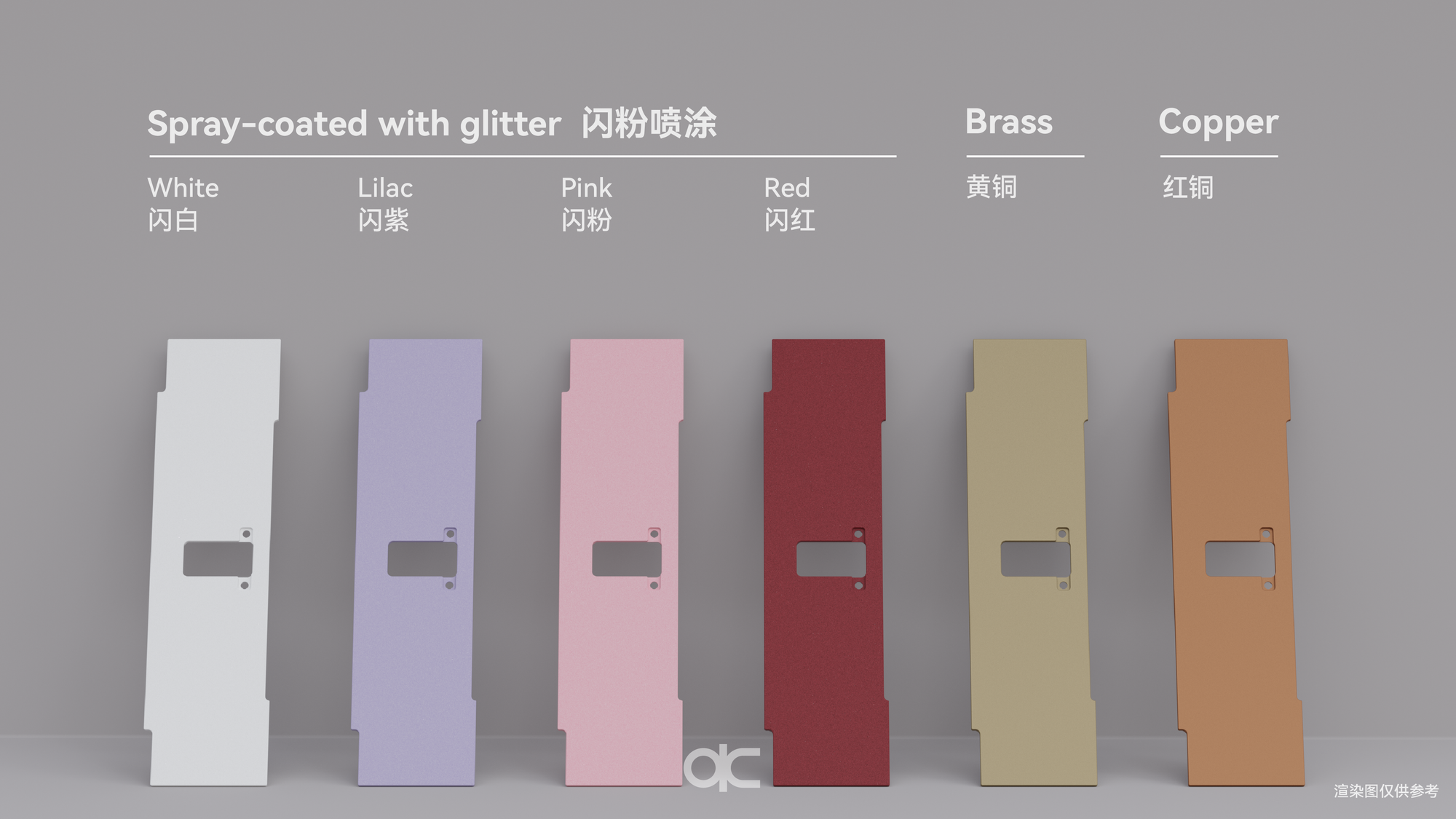

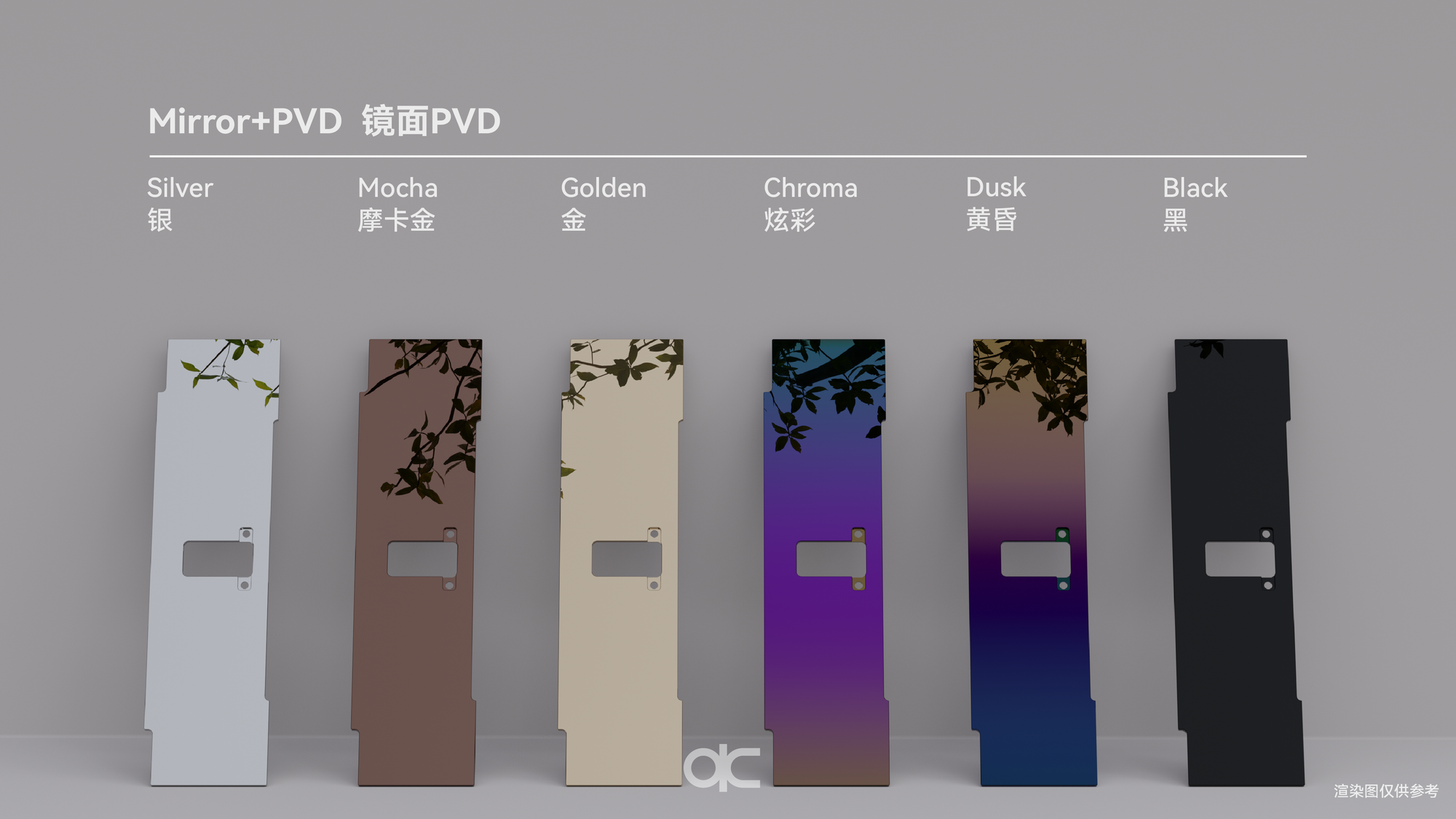

Weight Options
Weight Options

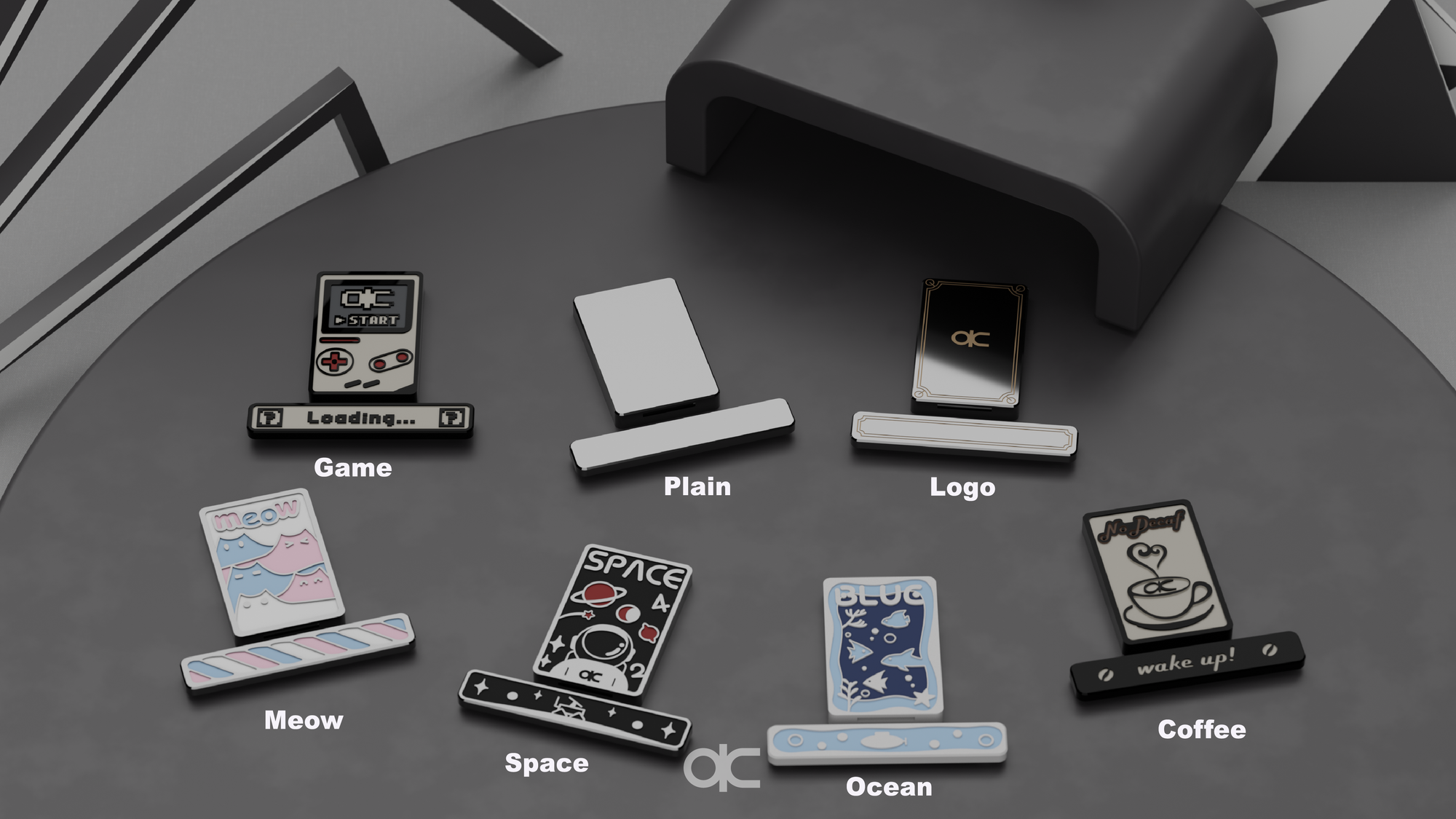

Badge & Tag Set

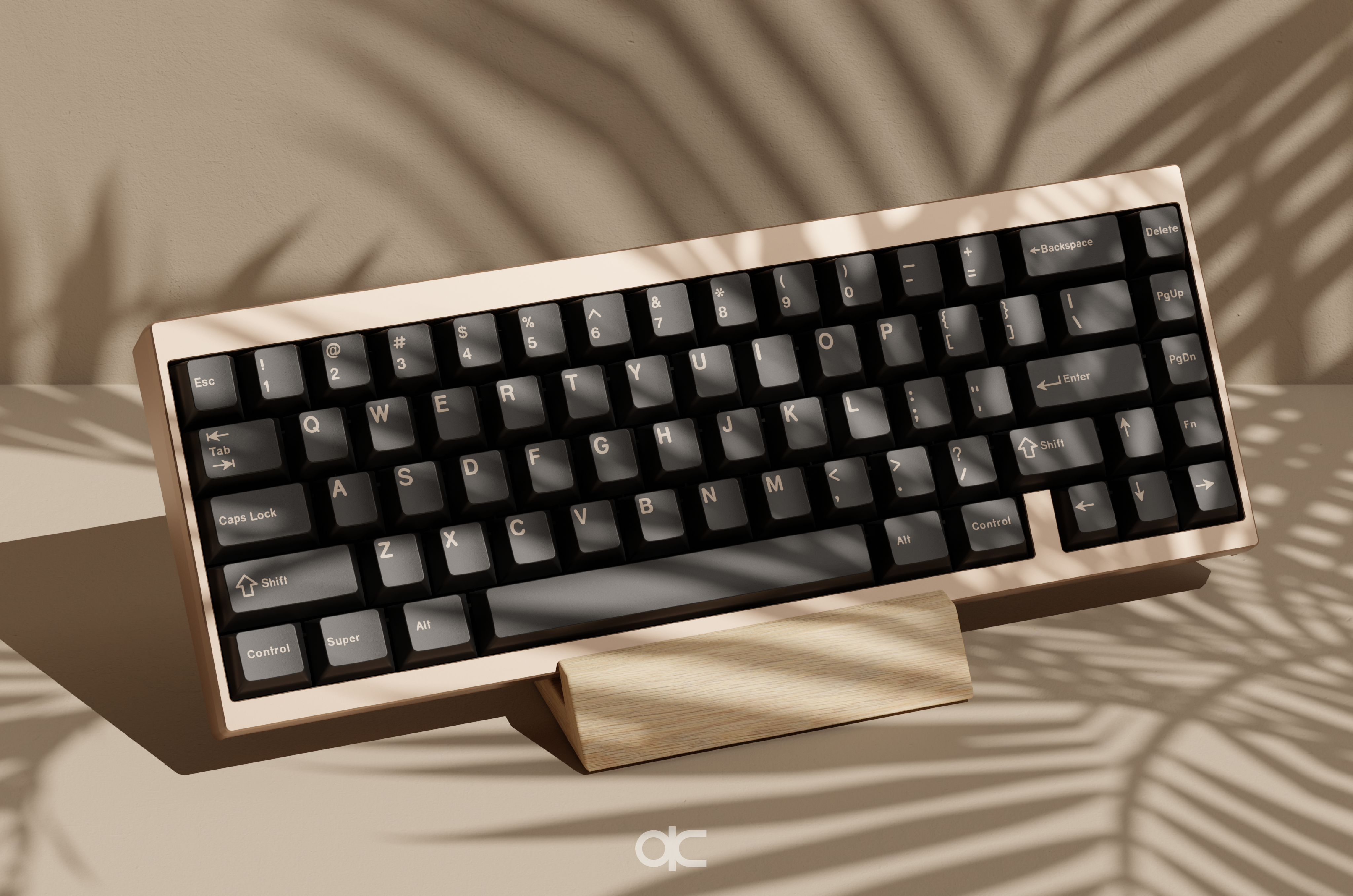

Front Design

Unlike the QK65v2, the classic version aligns more closely with the design language of the original QK65. Without the LED strip and mini screen, the QK65v2 Classic embodies a more minimalistic design, making it easier to integrate into your desk setup.

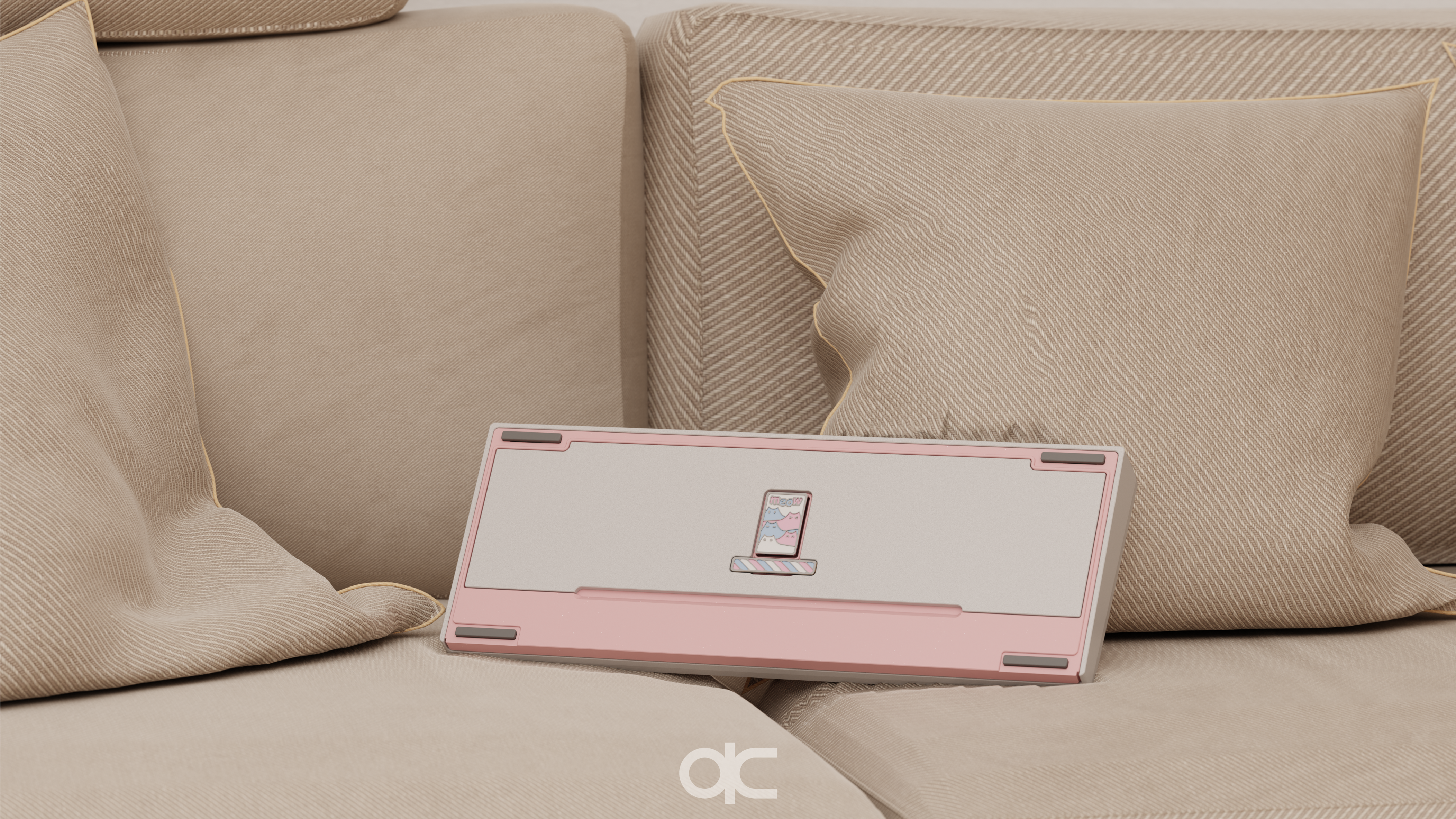

Back Design

The classic version shares the same design as the QK65v2. The back case, external weight, and themed badge are all customizable, allowing users to create a unique keyboard. Besides the six themed badge set, we've also added a plain mirror badge for customers who prefer a simpler design.

The USB dongle can be stored under the badge, allowing you to enjoy a wireless typing experience anywhere without worrying about losing it.

Dual Mounting

The QK65v2 Classic is compatible with both PCB gasket mount and top mount. We have added plate cushions around the screw holes to eliminate any potential case ping when using the top mount. Additionally, the PCB daughterboard now has its own gasket to ensure mobility with the magnetic connectors.

Plate and PCB will be required for the board to be functional.


FR4 plates have flex cuts to provide a softer typing feedback.

Alu, PC, POM, and Carbon Fiber plates do not have flex cuts.

The HE PCB only supports the aluminum plate to guarantee precise actuation.

All plates are universal and can be used for different layouts.

PCB Options

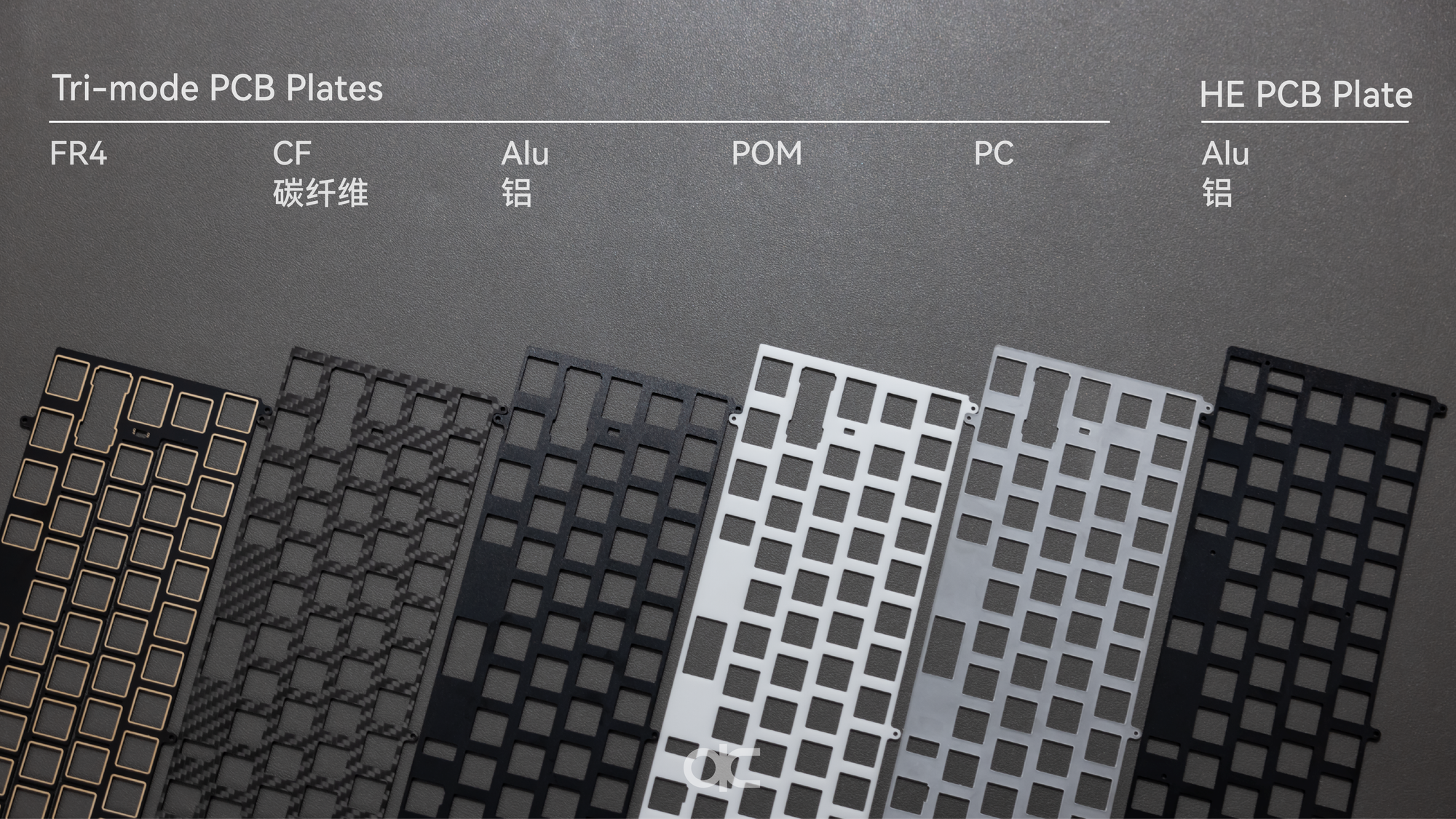

Plate Options

Neo Lavender Magnetic Switch + HE PCB Kit

The QK HE PCB is paired with the latest magnetic switch from Neo Studio, the Neo Lavender Magnetic switch. Unlike regular magnetic switches, the Lavender Magnetic Switch has a specially designed bottom to enhance the typing sound. This makes it a great blend of performance, typing feedback, and sound profile. Paired with the QK HE PCB, it delivers a superb experience for both gaming and daily use.

Switch Type: Linear, Hall Effect

Operating Force: 42.0g

Bottom-out Force: 52.0g

Spring Length: 16.0mm

Spring Type: Single-stage

Travel: Analog

Full Travel: 3.8mm

Top Housing: Nylon PA12

Bottom Housing: Nylon PA66

Stem Material: POM

Mounting Pins: 2-pin

Lubrication: Factory-lubed

FAQ

Specifications

Typing angle: 6.5 degree

Front height: 19.8mm

Size: 116.5mm * 312.7mm

Weight: around 1.4kg before build, 1.9kg after build

What does the kit contain?

1. Case (top + bottom + weight)

  • With two pre-installed 2200 mAh batteries
  • Orders with HE PCBs will receive two fillers for the battery compartment

2. Badge set of your choice - inside the accessory box

3. PCB Kit

  • PCB of your choice
  • PE Sheet + PCB Foam (for Tri-mode only)
  • 2.4GHz dongle (for Tri-mode only)
  • Neo Lavender Switch *70 (for HE PCB only)
  • Stand-offs (for HE PCB only)

4. Plate of your choice

5. Case foam (2.5mm 1pc +1mm 1pc)

6. PCB Daughterboard - Installed

7. Silicon Gaskets

8. Rubber Feet (1 set in grey and 1 set in white)

9. Backup Screws

10. Backup rear and front clips

11. Free gifts (Not covered by warranty):

  • A set of 65% NeoStabs
  • Keyboard protective case
  • Screwdriver
  • Switch puller
  • Keycap puller
  • Coiled USB-C cable
When will I receive my order?

Eventually, trust.

When does the Group Buy end?

Soon

What do I need in my order?

The kit includes all items required to make the board functional.

Feel free to add on any additional PCB and Plates as you like.

Does extra Tri-mode PCBs come with battery?

No.
