QK80 MK2

Notion Page here!

The Perfect Blend of Functionality and Aesthetics || 9 different colourways
Join the Group Buy!

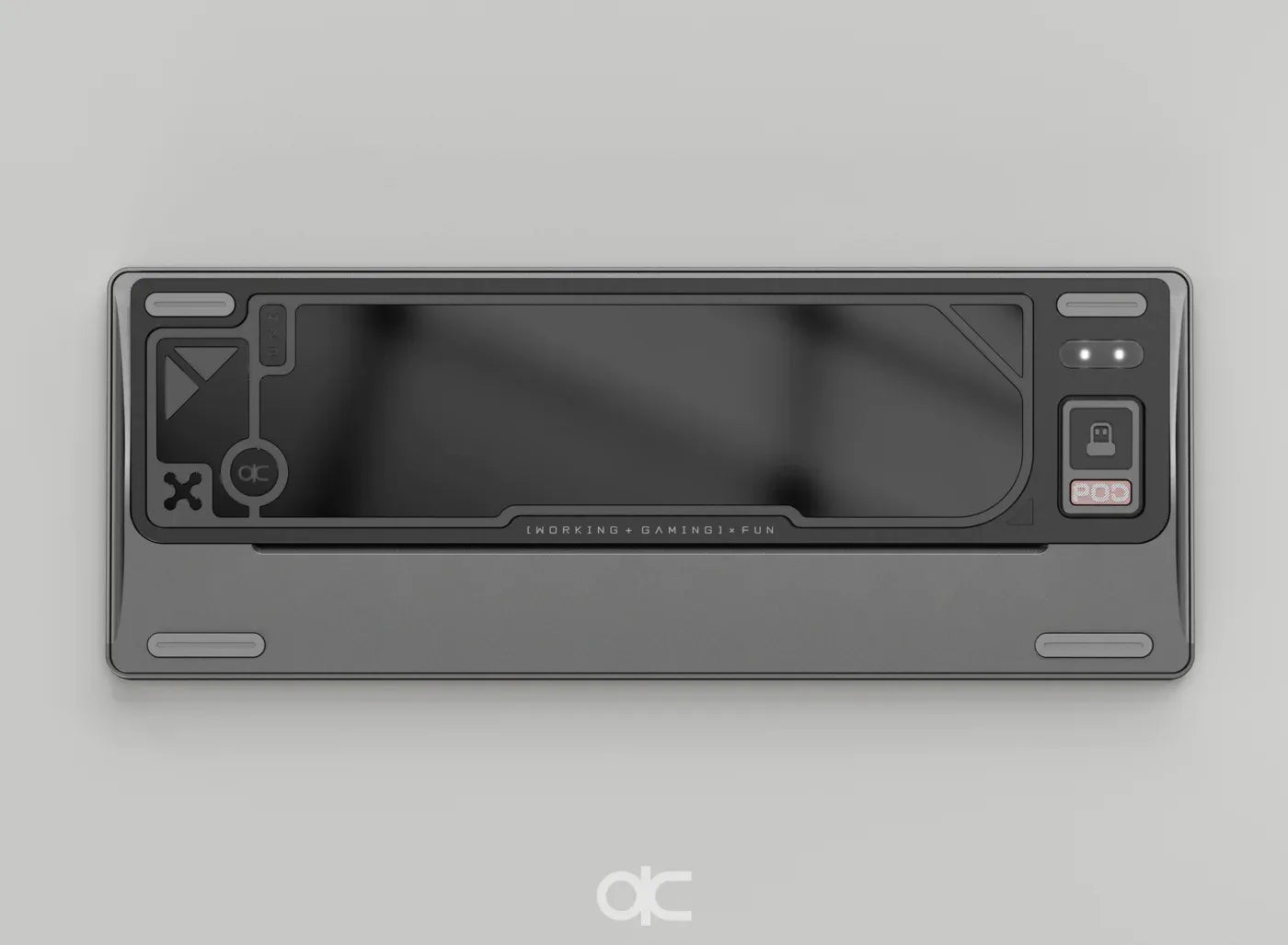

Anodized Grey
Anodized Ice Blue
Anodized Silver

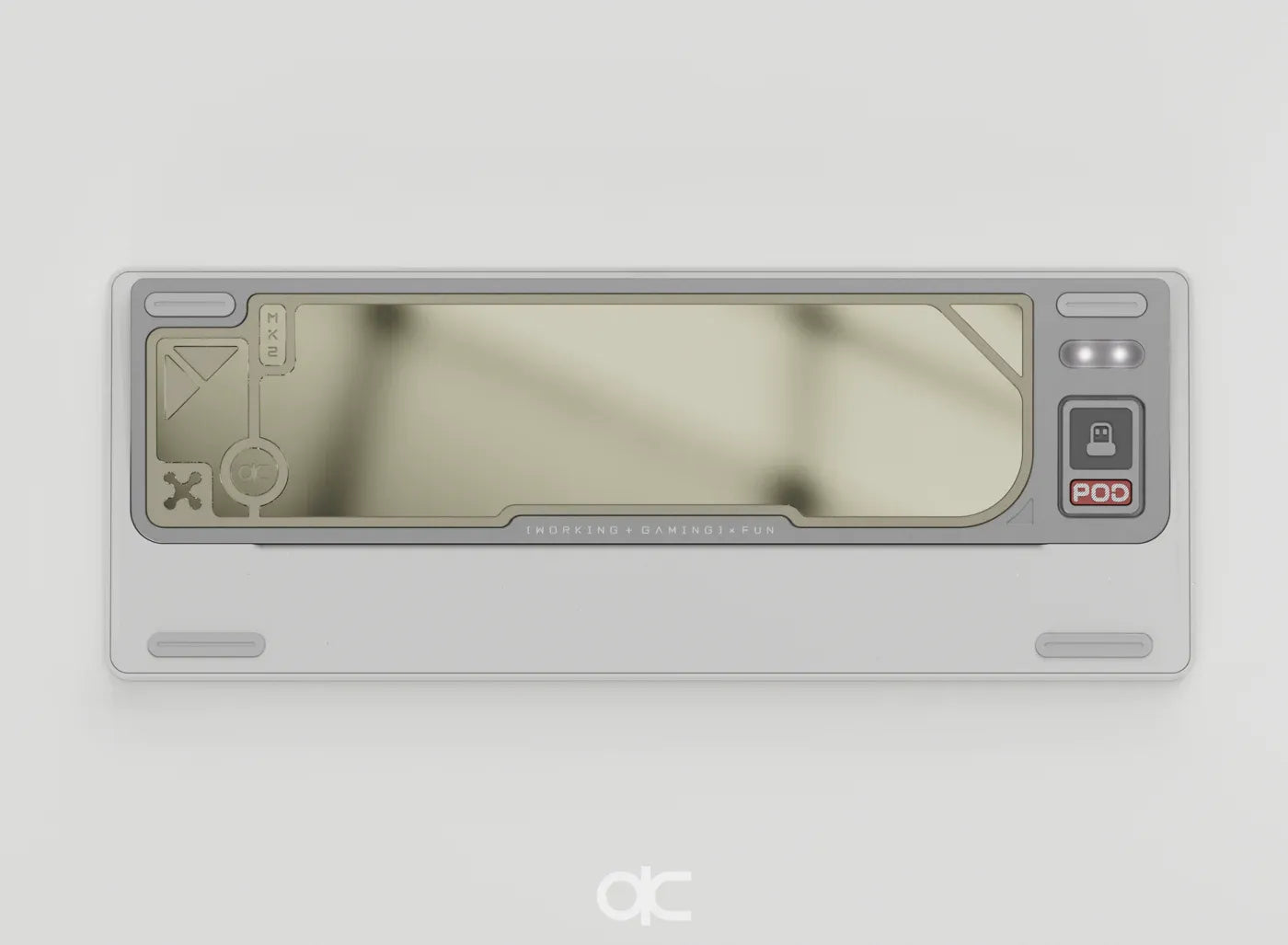

Spray-coated White
Spray-coated Bubble Tea
Spray-coated Retro White
Spray-Coated Red
Spray-coated Butter Yellow

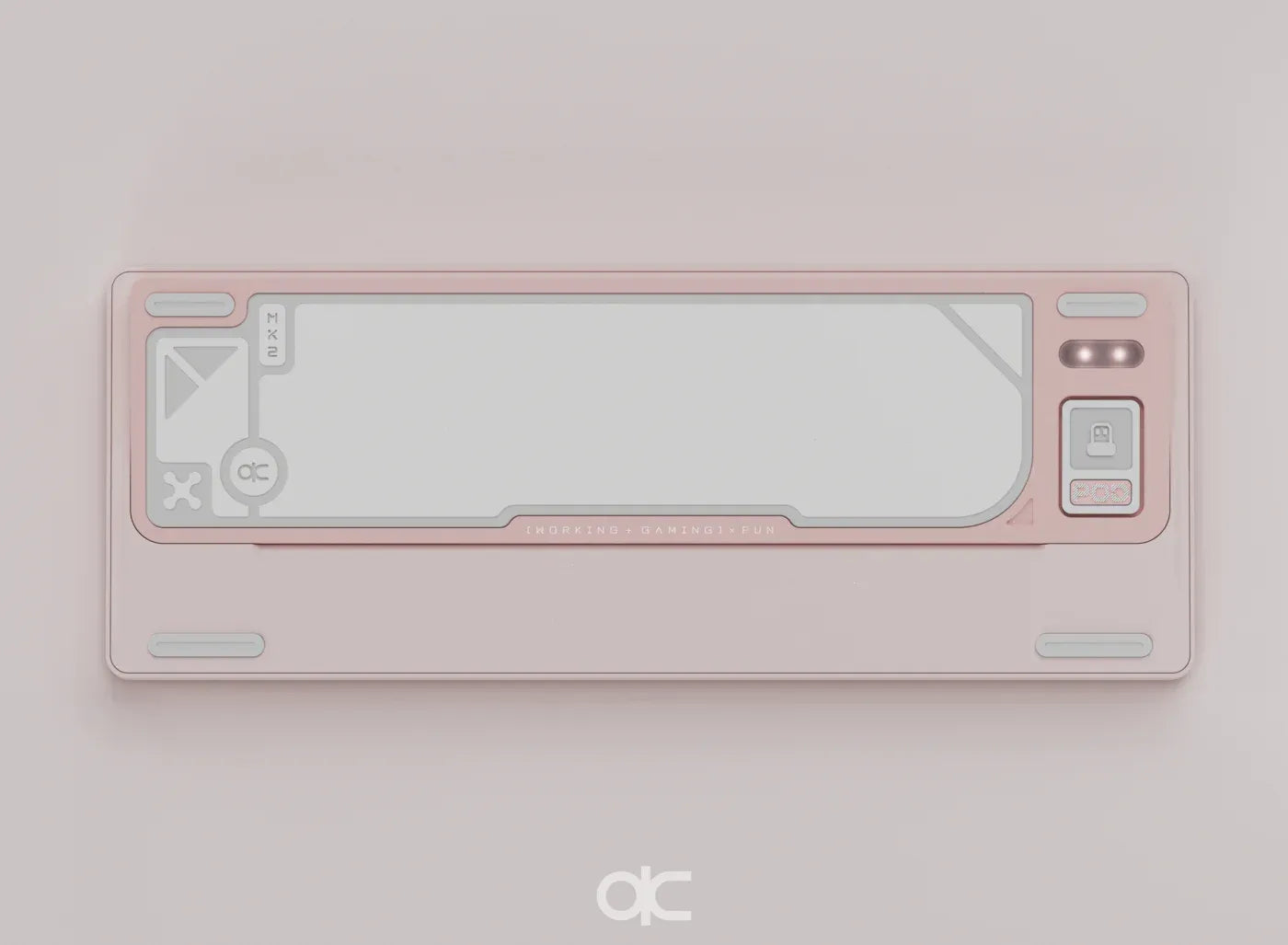

Spray-coated Pink

QK80 MK2 Limited Edition

The QK80 MK2 Limited Edition is a pre-assembled version of the QK80 MK2, featuring an exclusive themed color scheme. Available only in the WK layout and in limited quantities. For just a bit more $$ than the regular model, you'll receive a stunning mechanical keyboard that's ready to use right out of the box

Includes (pre-installed):

  • JTK HSA profile keycaps
  • colour-matched coiled cable
  • 84 Azure switches
  • plate stabilizers

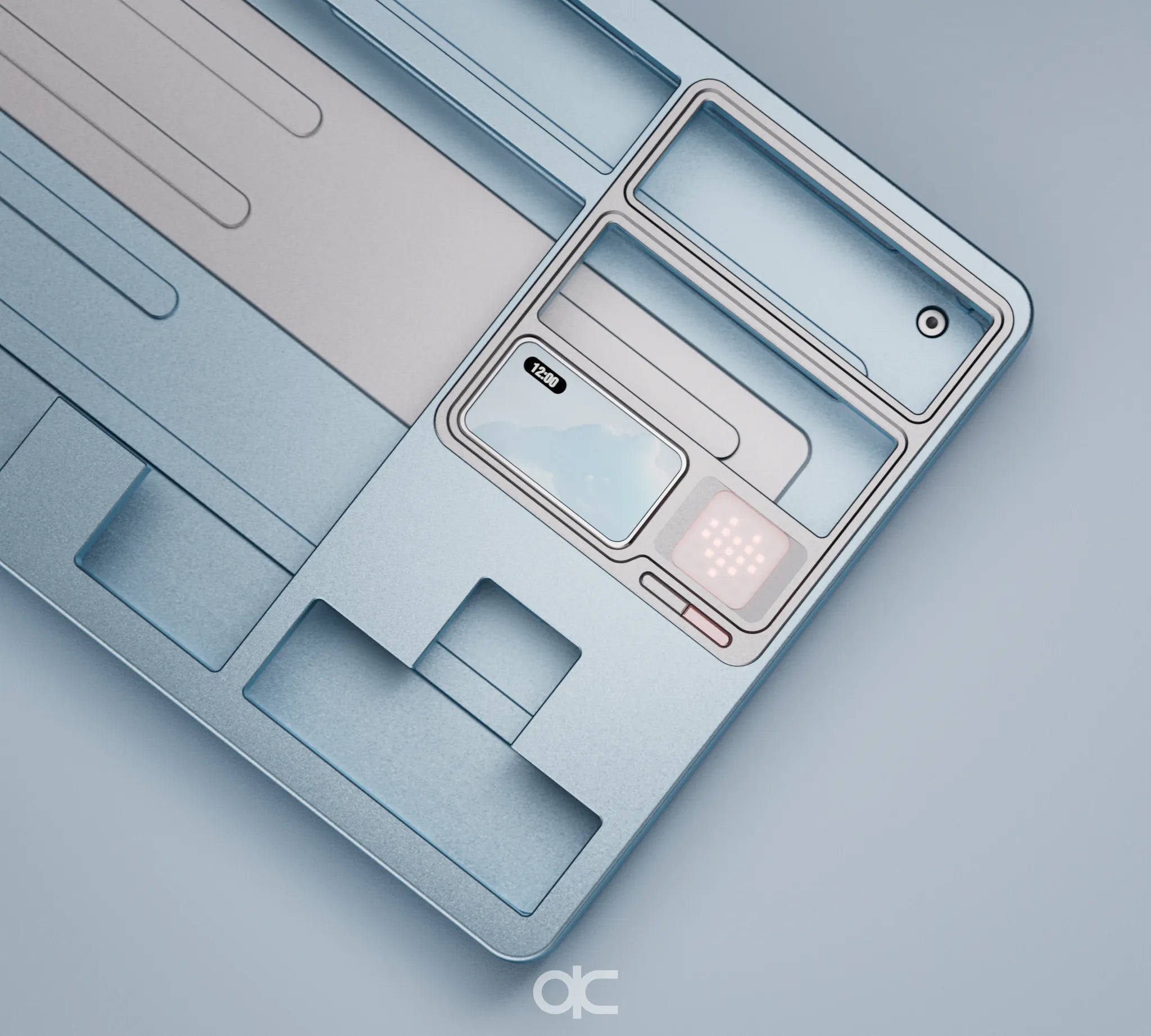

Front Design

On the QK80 MK2, QwertyKeys re-organized the function area, only keeping the most frequently used functions keys to save a place for the integrated screen module, to achieve a perfect balance between the aesthetics and usability.

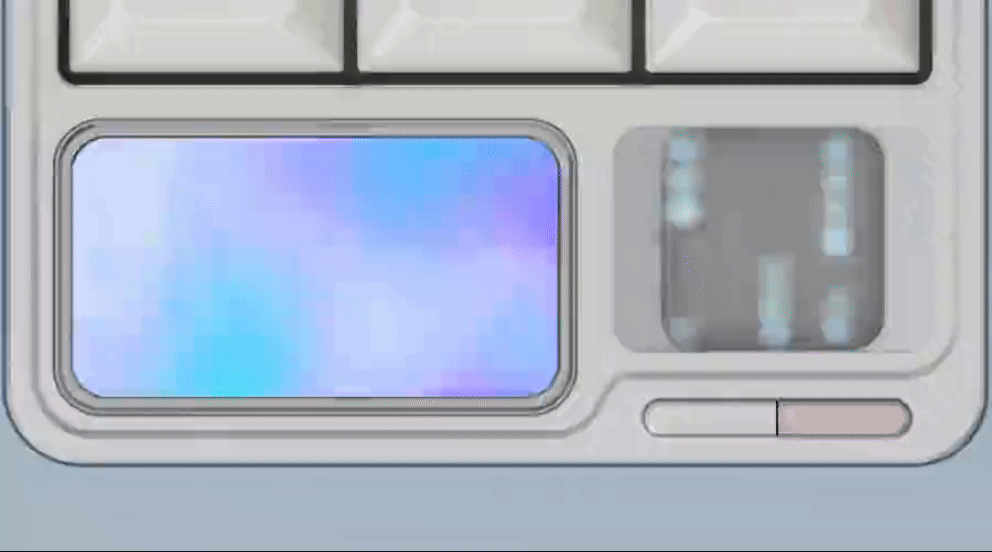

Theme: Dynamic

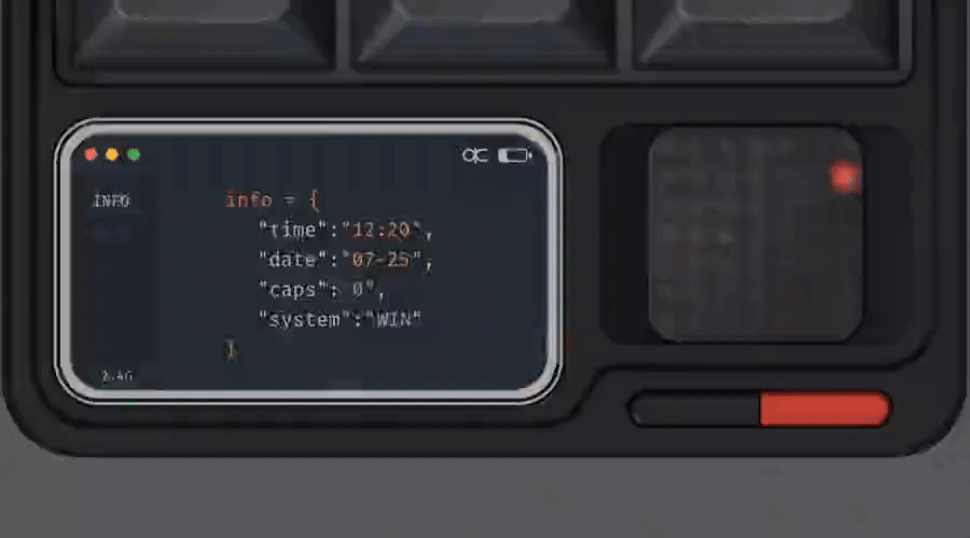

Theme: Code

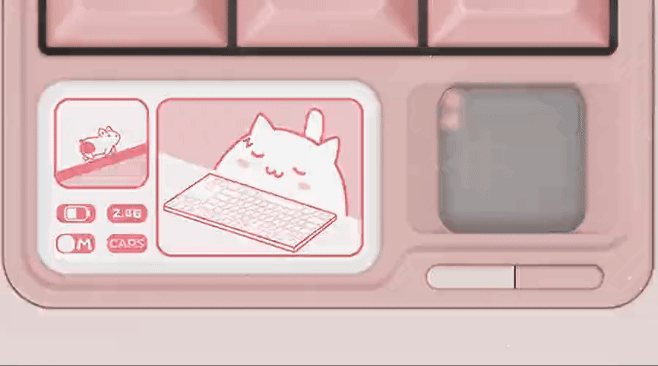

Theme: Meow

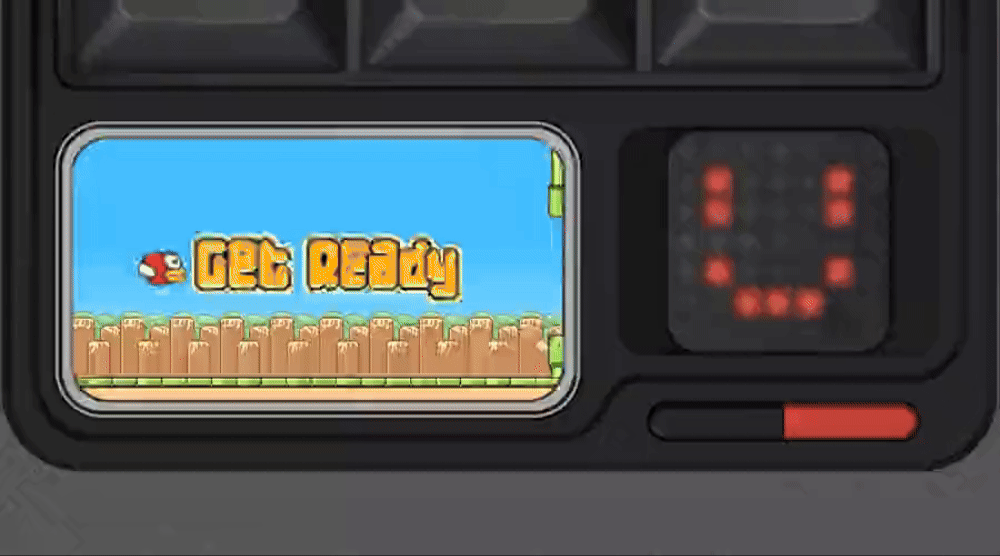

Flappy Bird Mini Game

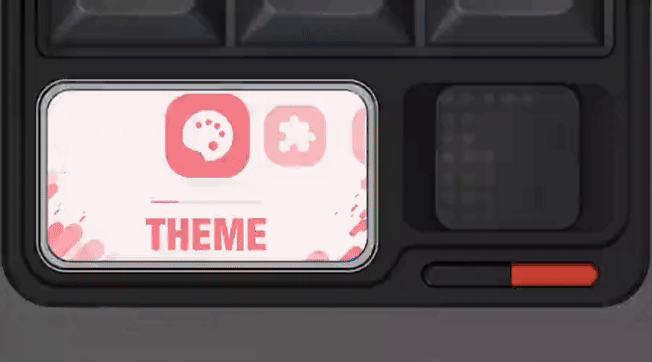

Different Settings

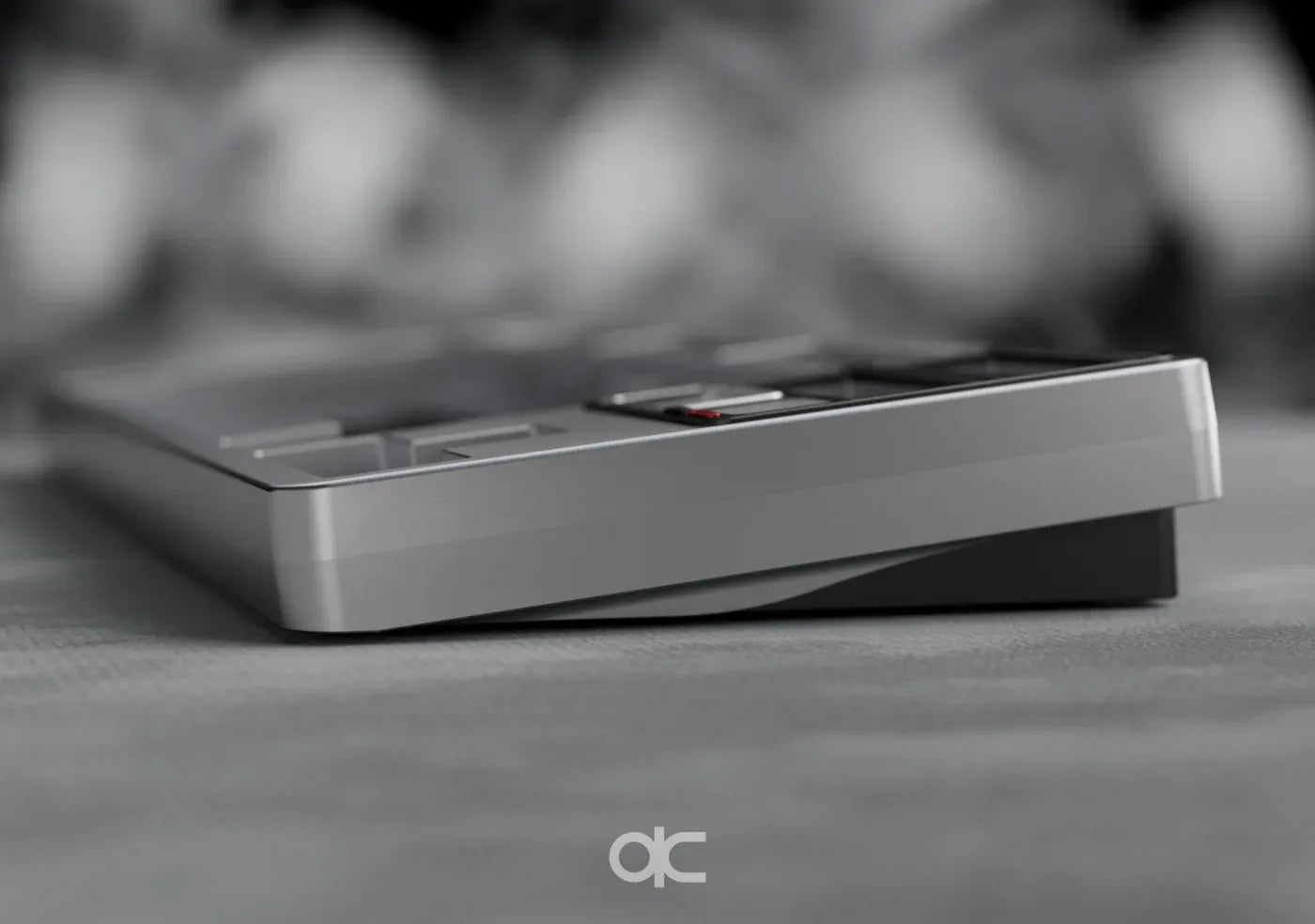

Side Design

3-layer structure and a contrasting color between the top case and the battery compartment. This design not only makes the whole keyboard easier to pick up but also showcases the meticulously selected color combinations for each colorway.

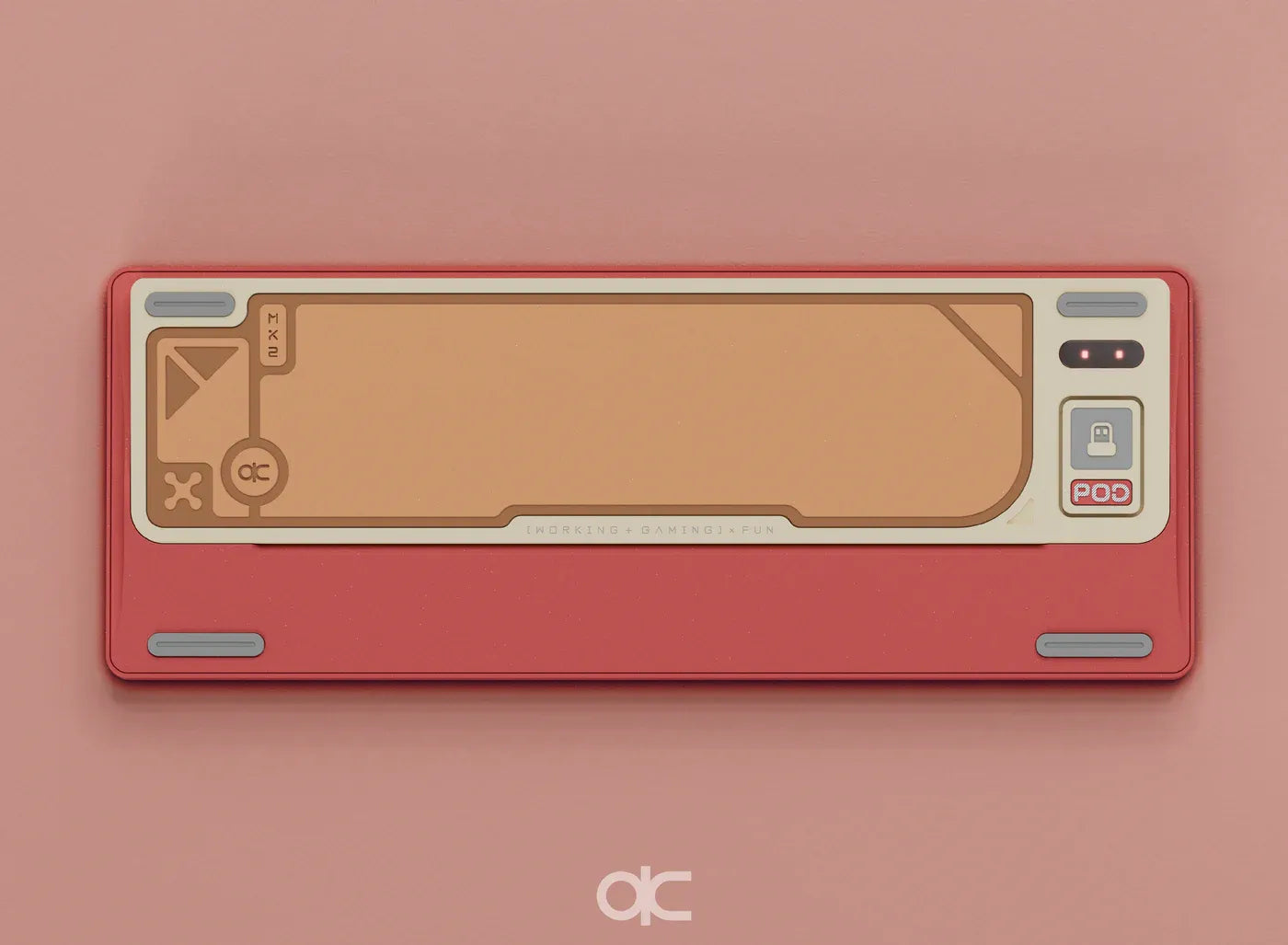

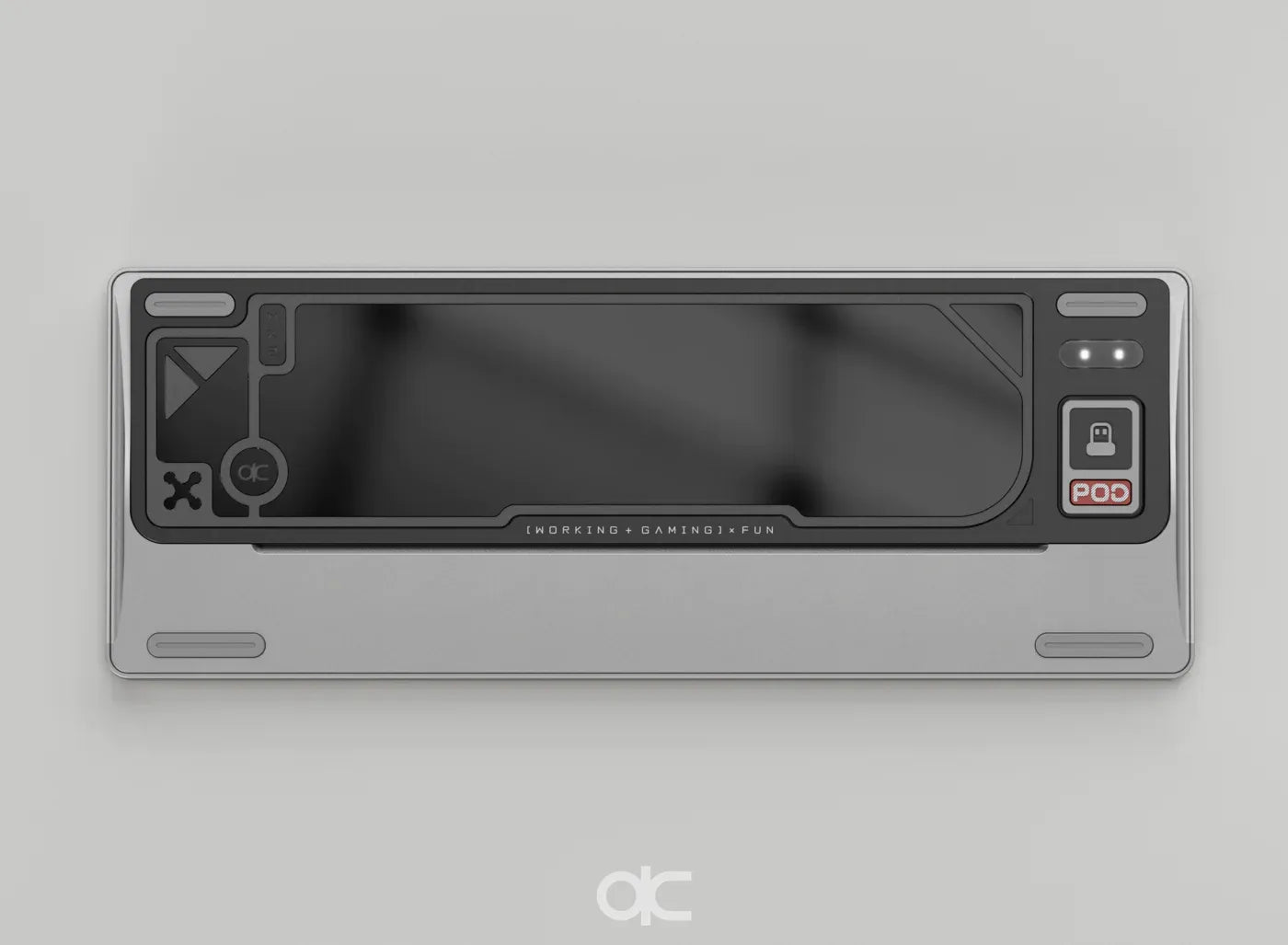

Back Design

By separating the battery compartment from the bottom case, QwertyKeys preserved the integrity of the sound chamber, thereby enhancing the keyboard's acoustic performance.


The contrast between different surface color and texture create a more sophisticated back profile. Paired with the slogan


"[ Working + Gaming ] x Fun"


Qwertykeys aim to offer a more diverse and engaging input experience for both work and play.

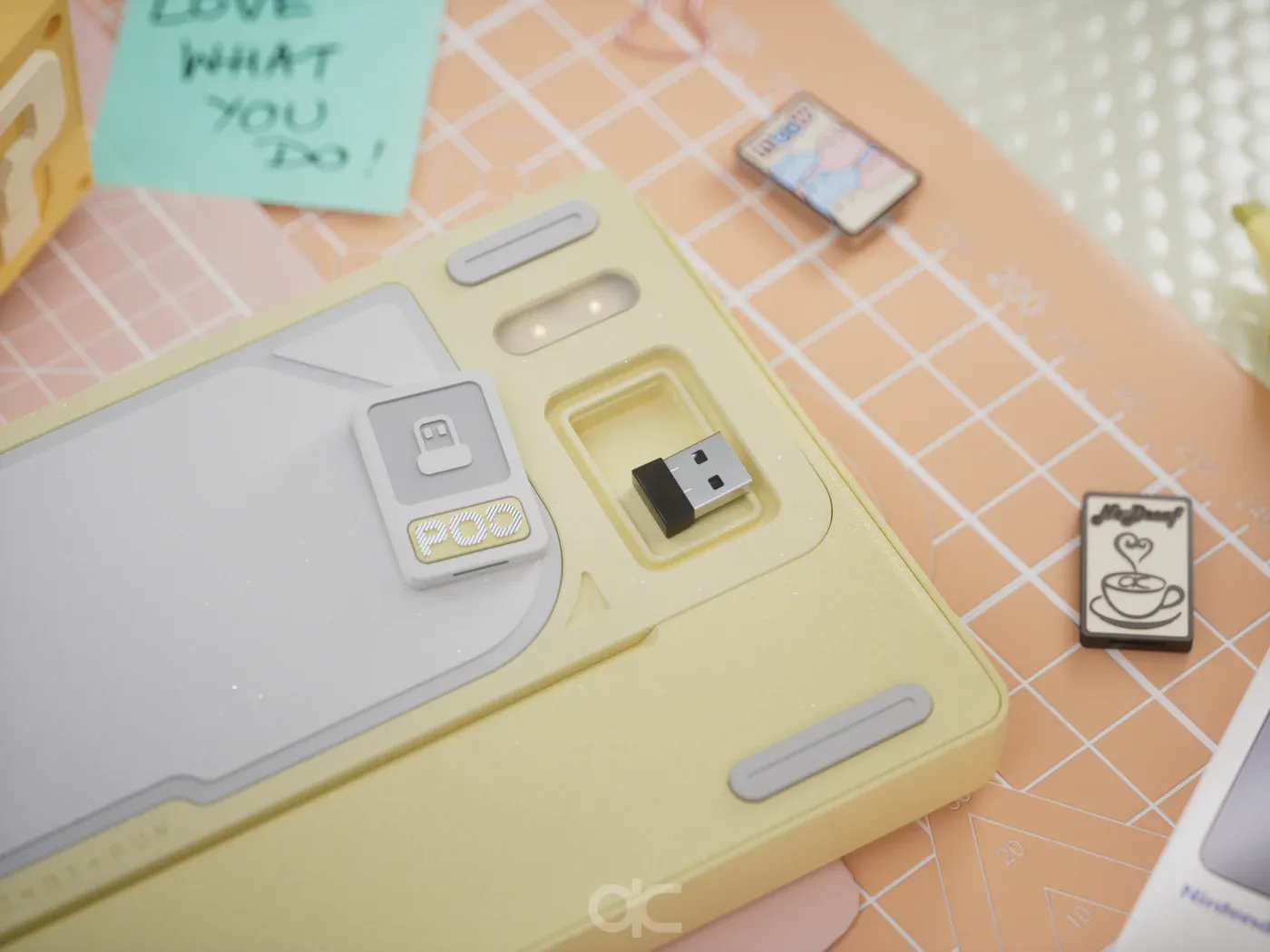

Badges

The badge on the right side doubles as a cover for the USB dongle pod and a decorative element. It's magnetically attached to the bottom case, allowing for easy removal.


Badges from QK's earlier products, like the QK65v2 and QK75N, are also compatible with the QK80 MK2.

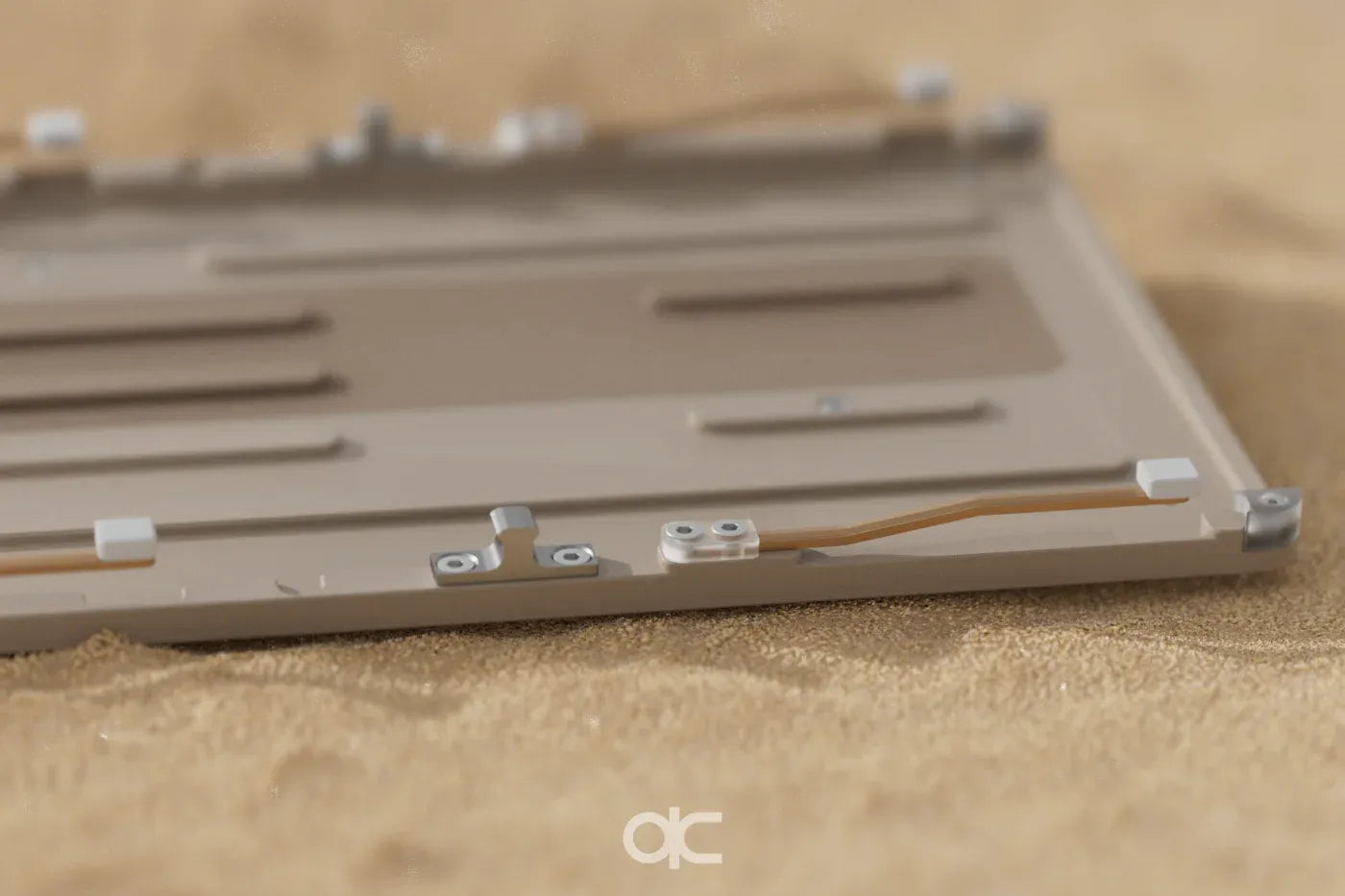

Structure

QK80 MK2 features the highly-praised Leaf Spring mount from Owlab and an effortless ball-catch easy disassembly system. QwertyKeys also designed the positioning of the leaf springs and the acoustic chamber in the bottom case to optimize both acoustic performance and typing feedback consistency.


The PCB, daughterboard, and screen module are all connected via magnetic connectors, ensuring a truly effortless disassembly experience.

All PCBs:

  • Support USB-C, Bluetooth, and 2.4GHz connections

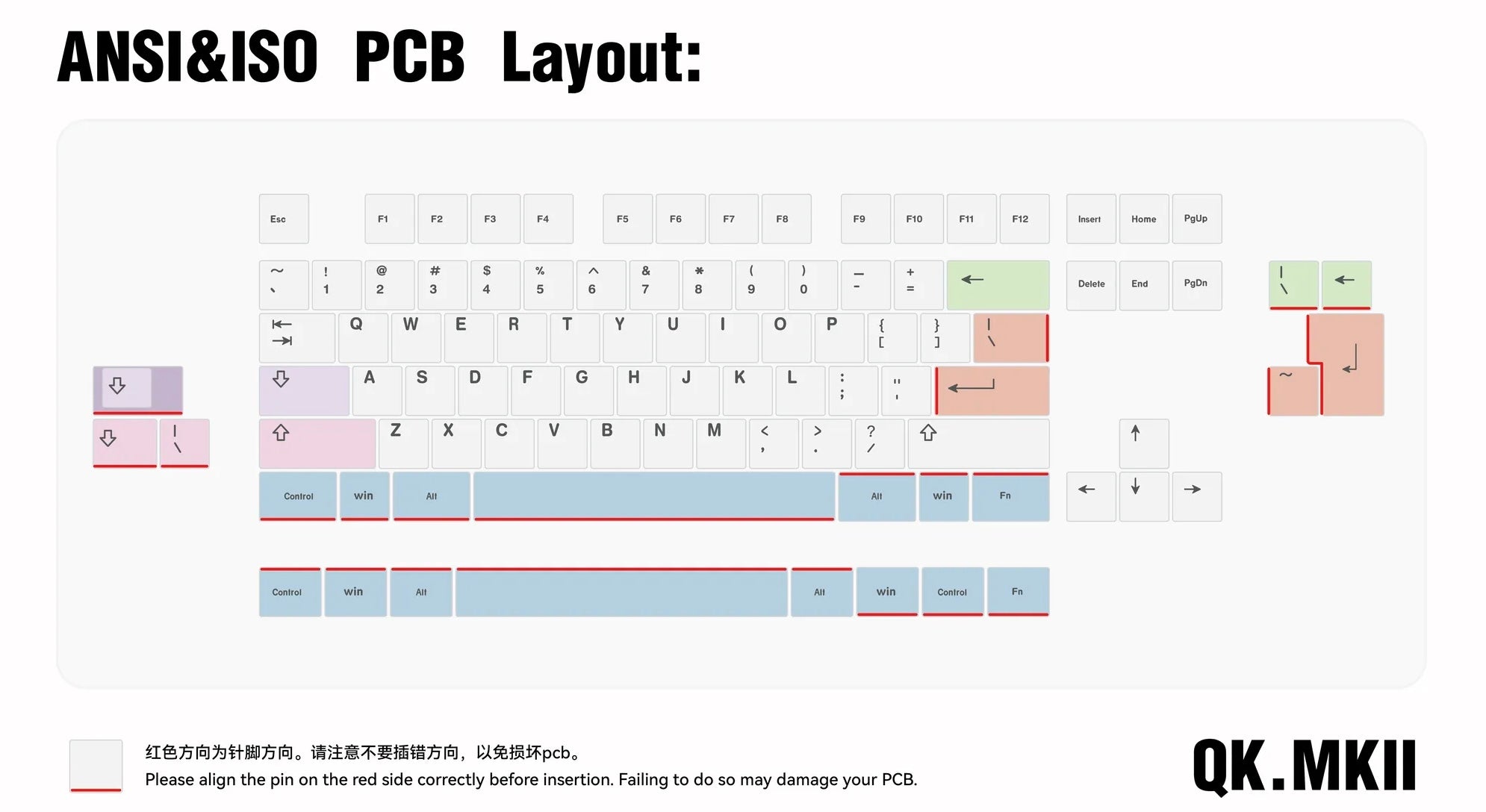

  • Compatible with both ANSI and ISO layouts
  • Work with WK and WKL cases
  • Support both 6.25u and 7u spacebars
  • Use QK's customized VIA web configurator for keymapping and screen customization, as the original VIA doesn't support advanced screen functions

Tri-mode Flex-cut Hotswap PCB w/Per-key RGB

  • 1.2mm thick
  • Per-key RGB

Tri-mode Flex-cut Hotswap PCB

  • 1.2mm thick
  • No Per-key RGB

Tri-mode Non-flex cut Hotswap PCB

  • 1.2mm thick
  • No Per-key RGB
Plates:

Five Different Choices:

FR4, Aluminum, POM, PC, and Carbon Fiber.

  • FR4 has flex cuts
  • Alu, POM, PC & Carbon Fibre no flex cuts

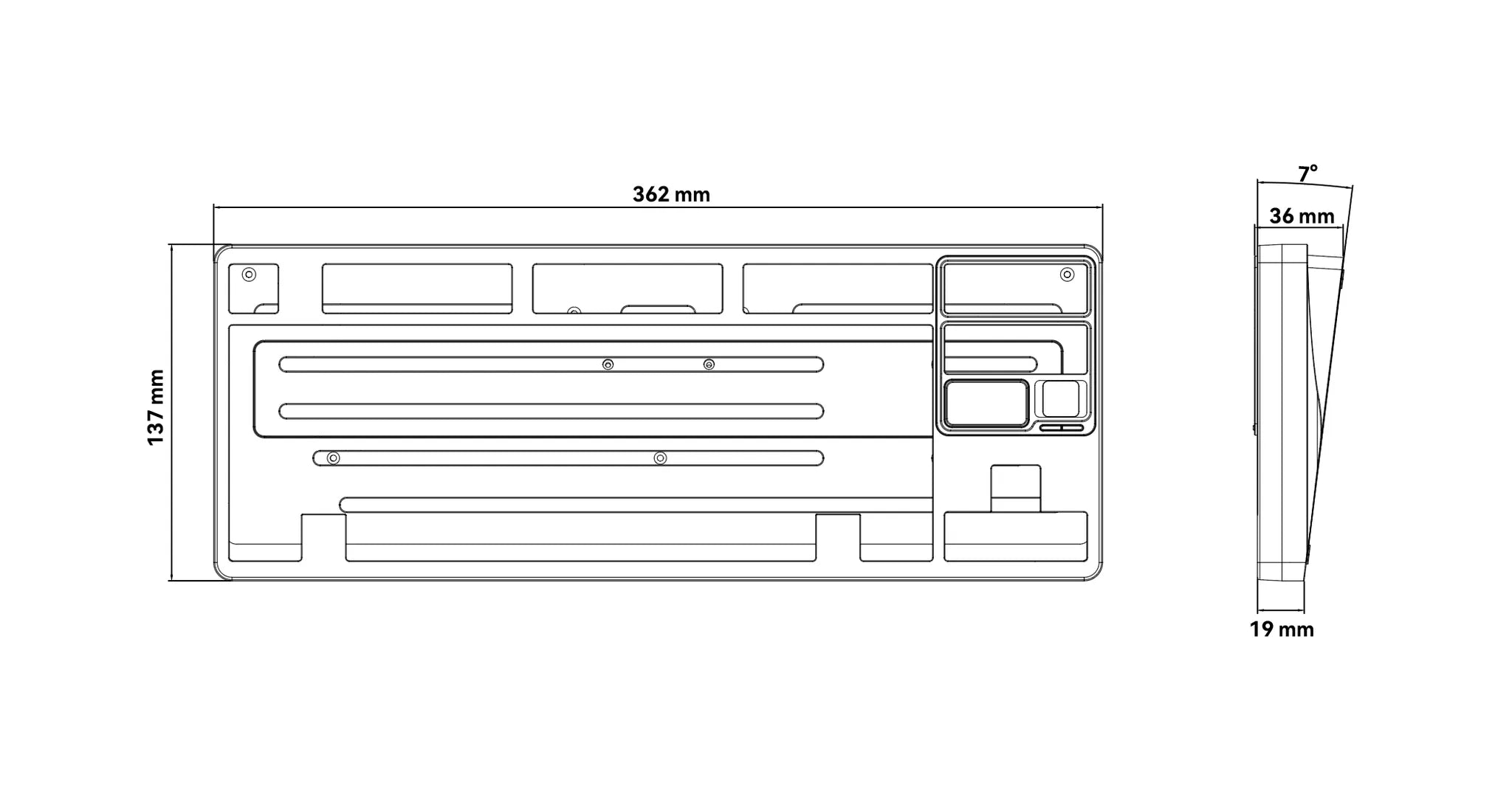

Specficiations:
  • Typing angle: 7 degrees
  • Front height: 19mm
  • Size: 137mm x 362mm
  • Weight: around 1.8kg before build, 2.2kg after build

Frequently Asked Questions

What comes in the kit?

1. Keyboard Case

  • Includes pre-installed screen module and screen daughterboard
  • Includes two pre-installed 4000 mAh batteries
  • Includes four pre-installed rubber feet
  • Includes pre-installed PCB daughterboard and magnetic connector
  • Includes six pre-installed leaf springs

2. PCB Kit

  • PCB of your choice
  • PET sheet
  • IPXE sheet
  • PCB Foam

3. Plate of your choice

4. Case foam and anti-static film

5. Accessory Pack

  • 2.4g dongle
  • Silicone gaskets
  • Backup screen ribbon cable
  • Backup case corner protector
  • Backup screws and rubber feet

6. Free gifts (not covered by warranty):

  • Stabilizers
  • Keyboard protective case
  • Switch and keycap puller
  • screwdriver
  • USB-C cable

---

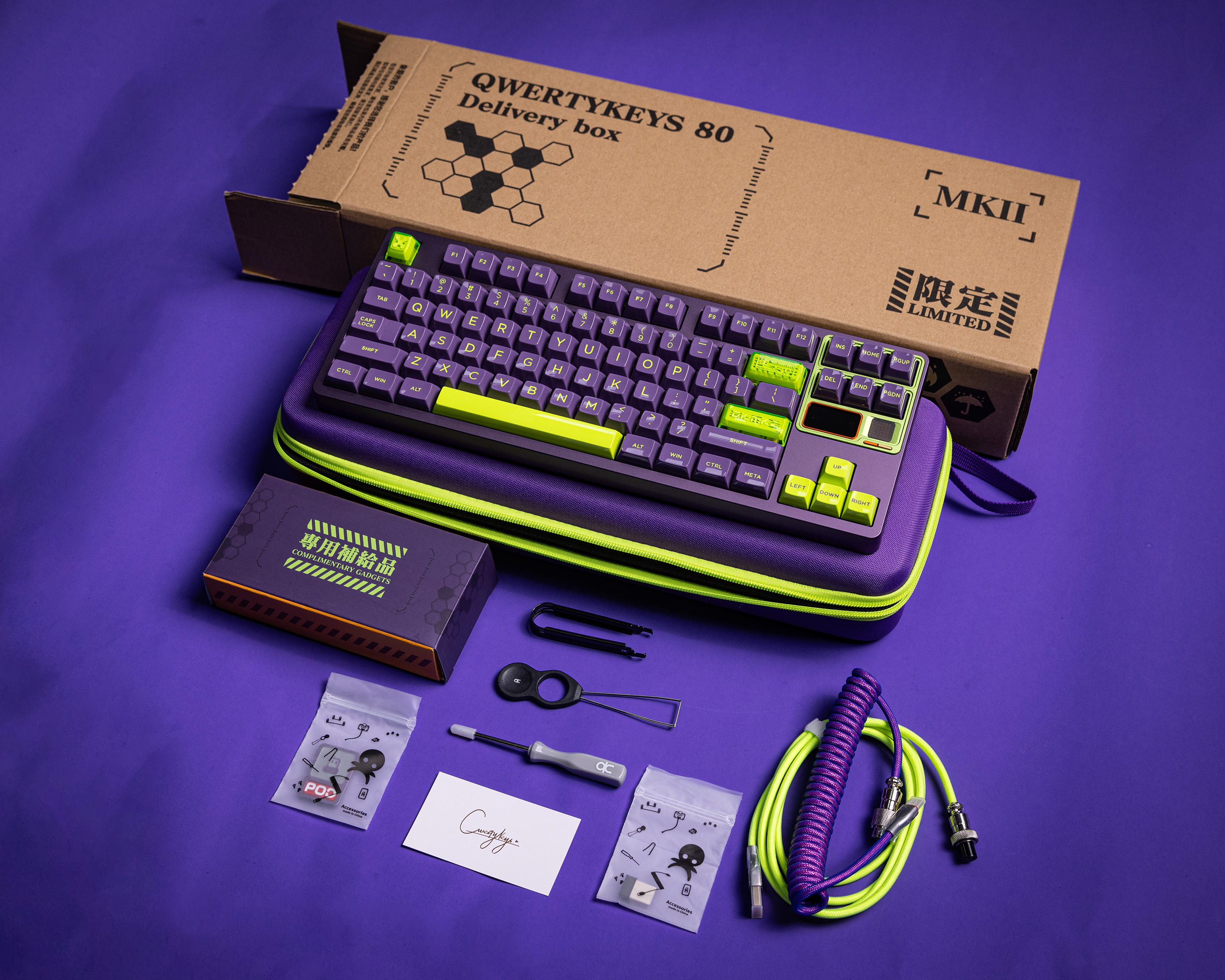

FOR QK80MK2 LIMITED EDITION

1. Keyboard case in exclusive color (with aluminum weight)

  • Pre-installed screen module and screen daughterboard
  • Two pre-installed 4000 mAh batteries
  • Case foam and anti-static protective film

2. Tri-mode Flex-cut Hotswap PCB with per-key RGB and FR4 plate

  • Pre-installed foam set: PET sheet, IPXE sheet, PCB Foam
  • Pre-installed plate stabilizers
  • Pre-installed Azure Switches

3. 1 set of pre-installed JTK HSA profile glossy keycaps

4. Accessory pack:

  • 2.4G dongle
  • Themed coiled USB-C cable

5. Free gifts (not covered by warranty):

  • Keyboard protective case
  • Switch and keycap puller
  • Screwdriver
When will I receive my order?

Q1 2025

When does the Group Buy end?

26th November 2024

What do I need in my order?

The kit includes all items required to make the board functional.

Feel free to add on any additional PCB and Plates as you like.

Does extra Tri-mode PCBs come with battery?

No.
